My Part Number:
Part Number: 1066708
Manufacturer Code: QUINT4-PS/48-110DC/24DC/2.5/PT
Multiples of: 1 | Minimum Order: 1
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, input: 48 V DC - 110 V DC, output: 24 V DC / 2.5 A
In the power range of up to 100 W, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range.
Product type: DC/DC converters
Product family: QUINT POWER
MTBF (IEC 61709, SN 29500): > 1200000 h (25 °C), > 618000 h (40 °C), > 230000 h (60 °C)

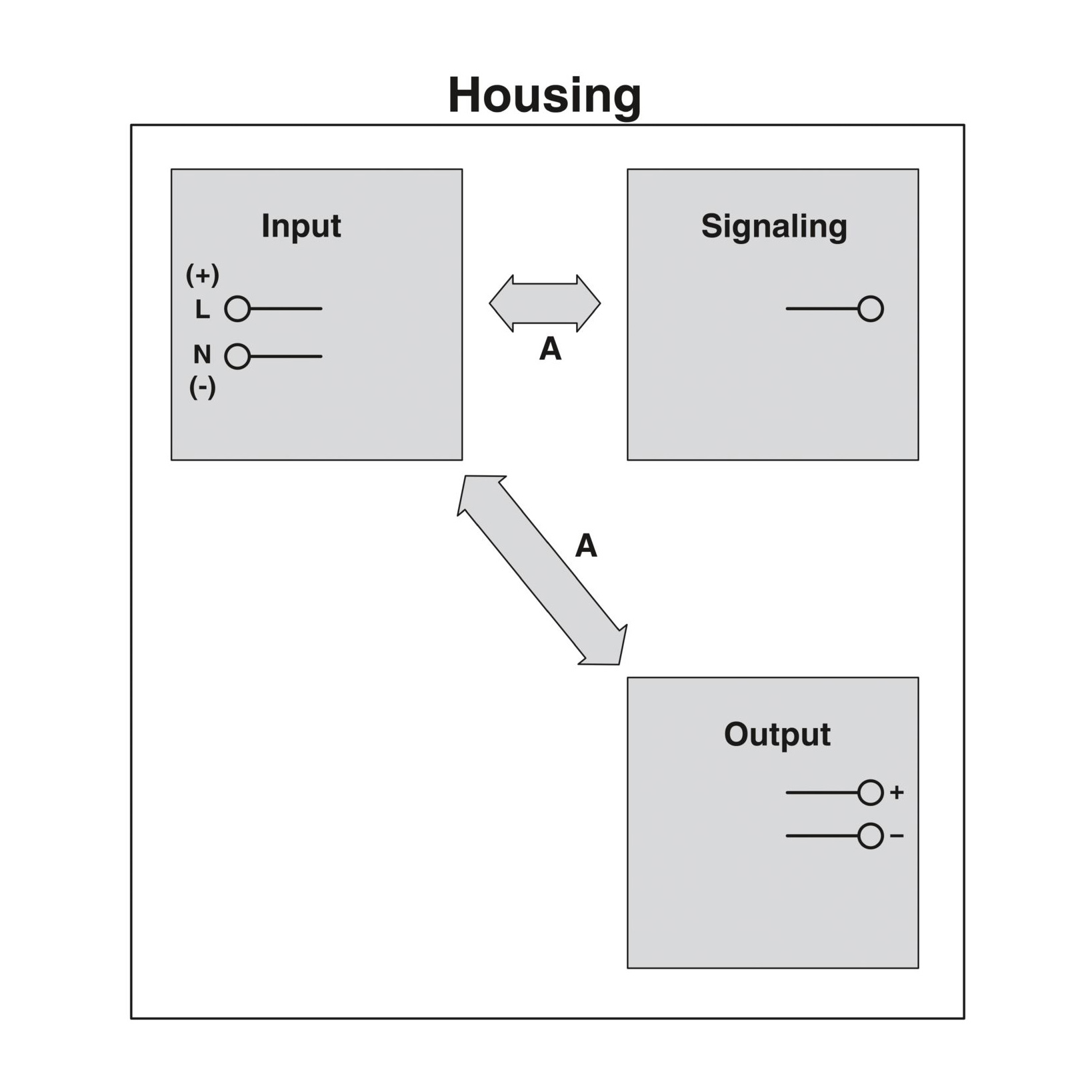

Insulation characteristics
Protection class: II
Degree of pollution: 2
Life expectancy (electrolytic capacitors)
Current: 2.5 A
Temperature: 40 °C
Time: 171000 h
Additional text: 24 V DC
Life expectancy (electrolytic capacitors)
Current: 2.5 A
Temperature: 30 °C
Time: 343000 h
Additional text: 24 V DC
Brand |
PHOENIX CONTACT |
|
£229.07
per 1 (ex. VAT)£274.88
per 1 (inc. VAT)
