My Part Number:
Part Number: 1442344
Manufacturer Code: PSR-SCP-24DC/URM4/5X1/2X2/B
Multiples of: 1 | Minimum Order: 1
PSR-SCP- 24DC/URM4/5X1/2X2/B - Extension module

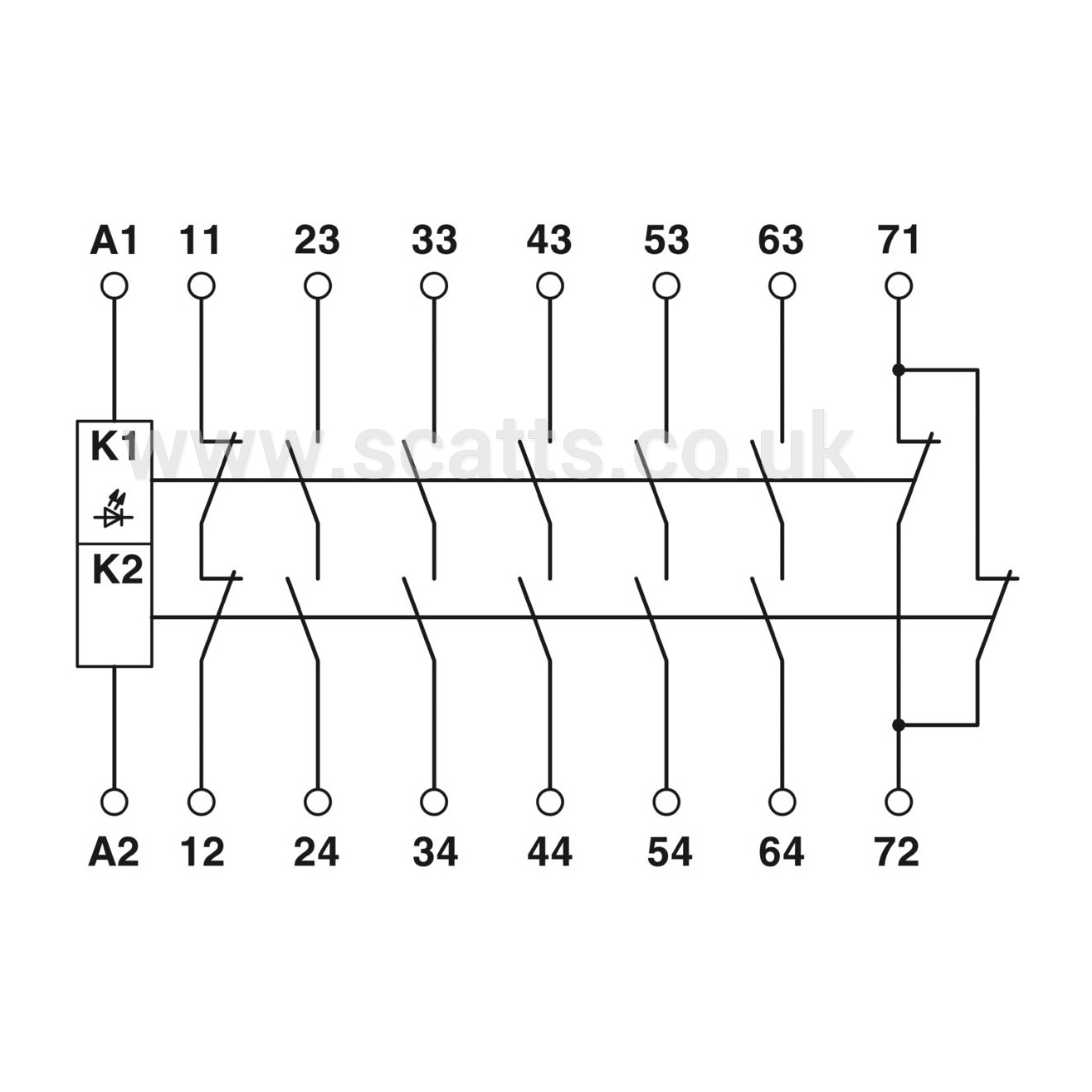

1-channel or 2-channel contact extension, 5 N/O contacts, 1 N/C contact, 1 confirmation current path, together with basic device up to Cat. 4 PL e in accordance with EN ISO 13849 safe isolation, width: 22.5 mm, pluggable screw terminal block
Product type: Safety relays
Product family: PSRclassic
Application: Extension module
Control: 1 and 2 channel
Mechanical service life: 10x 106 cycles
Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category: III
Degree of pollution: 2
Times
Typ. starting time with Us: < 25 ms (with Us / when controlled via A1)
Typical release time: < 20 ms (with Us / when controlled via A1)
Recovery time: < 1 s
Brand |
PHOENIX CONTACT |
|
£138.15
per 1 (ex. VAT)£165.78
per 1 (inc. VAT)
PSR-SCP- 24DC/URM4/5X1/2X2/B - Extension module
1-channel or 2-channel contact extension, 5 N/O contacts, 1 N/C contact, 1 confirmation current path, together with basic device up to Cat. 4 PL e in accordance with EN ISO 13849 safe isolation, width: 22.5 mm, pluggable screw terminal block
Product type: Safety relays
Product family: PSRclassic
Application: Extension module
Control: 1 and 2 channel
Mechanical service life: 10x 106 cycles
Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Insulation characteristics
Overvoltage category: III
Degree of pollution: 2
Times
Typ. starting time with Us: < 25 ms (with Us / when controlled via A1)
Typical release time: < 20 ms (with Us / when controlled via A1)
Recovery time: < 1 s
Brand |
PHOENIX CONTACT |
|
