My Part Number:
Part Number: 1711039
Manufacturer Code: MKDS 3/ 3
Multiples of: 100 | Minimum Order: 100

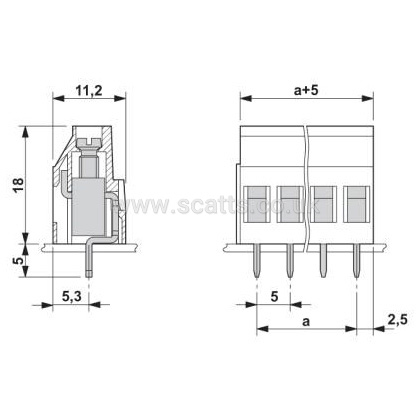

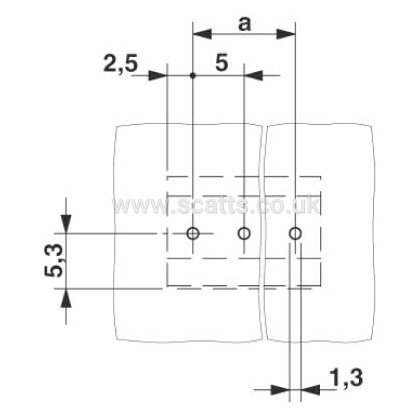

PCB terminal block
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
The latching on the side enables various numbers of positions to be combined
Nominal current: 24 A
Pitch: 5 mm
Number of positions: 3
Connection method: Screw connection with tension sleeve
Mounting: Wave soldering
Conductor/PCB connection direction: 0 °
Colour: green
Brand |
PHOENIX CONTACT |
|
£1.18
per 1 (ex. VAT)£1.42
per 1 (inc. VAT)
PCB terminal block
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
The latching on the side enables various numbers of positions to be combined
Nominal current: 24 A
Pitch: 5 mm
Number of positions: 3
Connection method: Screw connection with tension sleeve
Mounting: Wave soldering
Conductor/PCB connection direction: 0 °
Colour: green
Brand |
PHOENIX CONTACT |
|
