My Part Number:
Part Number: 1786200
Manufacturer Code: IC 2,5/ 5-ST-5,08
Multiples of: 50 | Minimum Order: 50
PCB connector
Well-known connection principle allows worldwide use
Easy PCB replacement thanks to plug-in modules
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Can be combined with the MSTB 2,5 range
Low temperature rise, thanks to maximum contact force
Nominal current: 12 A

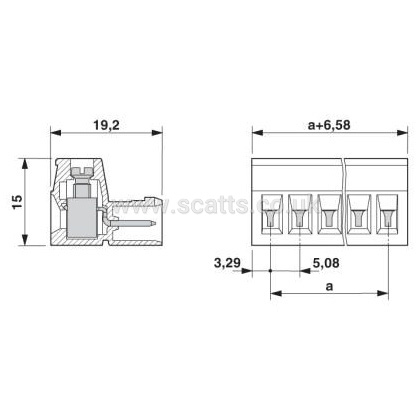

Pitch: 5.08 mm
Number of positions: 5
Connection method: Screw connection with tension sleeve
Contact surface: Tin
Colour: green
Brand |
PHOENIX CONTACT |
|
£3.82
per 1 (ex. VAT)£4.58
per 1 (inc. VAT)
PCB connector
Well-known connection principle allows worldwide use
Easy PCB replacement thanks to plug-in modules
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Can be combined with the MSTB 2,5 range
Low temperature rise, thanks to maximum contact force
Nominal current: 12 A
Pitch: 5.08 mm
Number of positions: 5
Connection method: Screw connection with tension sleeve
Contact surface: Tin
Colour: green
Brand |
PHOENIX CONTACT |
|
