My Part Number:
Part Number: 1795789
Manufacturer Code: GMSTB2,5/3-STF-7,62 EX
Multiples of: 50 | Minimum Order: 50

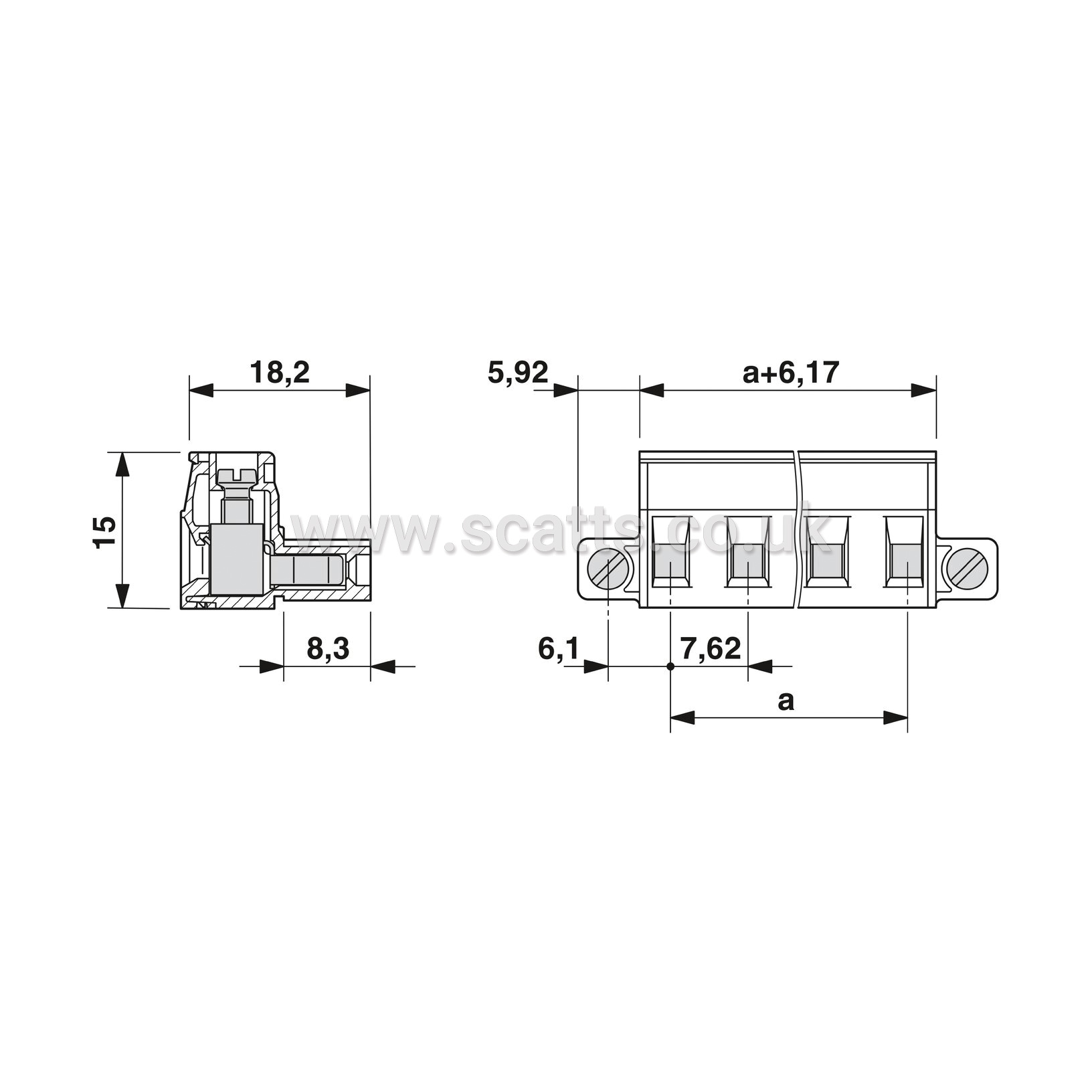

PCB connector - GMSTB 2,5/ 3-STF-7,62 EX
Nominal cross section: 2.5 mm2
Colour: green
Nominal current: 12 A
Contact surface: Tin
Type of contact: Female connector
Number of potentials: 3
Number of rows: 1
Number of positions: 3
Number of connections: 3
Product range: GMSTB 2,5/..-STF-EX
Pitch: 7.62 mm
Connection method: Screw connection with tension sleeve
Screw head form: L Slotted
Conductor/PCB connection direction: 0 °
Locking clip: - without locking clip
Plug-in system: COMBICON MSTB 2,5 EX
Locking: Screw locking
Mounting: Screw flange
Brand |
PHOENIX CONTACT |
|
£4.61
per 1 (ex. VAT)£5.53
per 1 (inc. VAT)
