My Part Number:
Part Number: 2688035
Manufacturer Code: AXL F DI32/1 1F
Multiples of: 1 | Minimum Order: 1

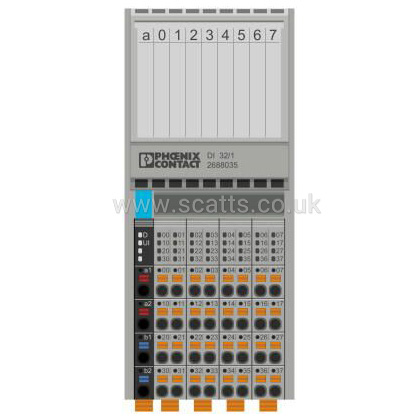

Axioline F, Digital input module, including bus base module and Axioline F connectors
32 digital inputs according to EN 61131-2 type 1 and type 3
24 V DC, 2.4 mA
Connection of sensors in single-wire technology
Minimum update time of < 100 μs
Filter times can be adjusted in three increments: < 100 μs, 1000 μs or 3000 μs
Maximum input frequency: 5 kHz
Device rating plate stored
Digital inputs: 32 , 24 V DC
Connection method: 1-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£242.08
per 1 (ex. VAT)£290.50
per 1 (inc. VAT)
