My Part Number:
Part Number: 2688064
Manufacturer Code: AXL F AI8 1F
Multiples of: 1 | Minimum Order: 1

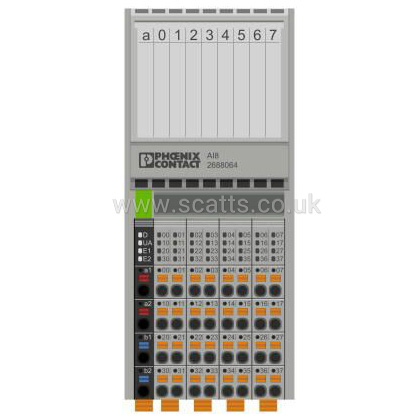

Axioline F, Analog input module, including bus base module and Axioline F connectors
8 analog, bipolar input channels for the connection of either voltage or current signals
Connection of sensors in 2-wire technology
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Device rating plate stored
Analog inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£492.50
per 1 (ex. VAT)£591.00
per 1 (inc. VAT)
Axioline F, Analog input module, including bus base module and Axioline F connectors
8 analog, bipolar input channels for the connection of either voltage or current signals
Connection of sensors in 2-wire technology
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Device rating plate stored
Analog inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
