My Part Number:
Part Number: 2688093
Manufacturer Code: AXL F CNT2 INC2 1F
Multiples of: 1 | Minimum Order: 1

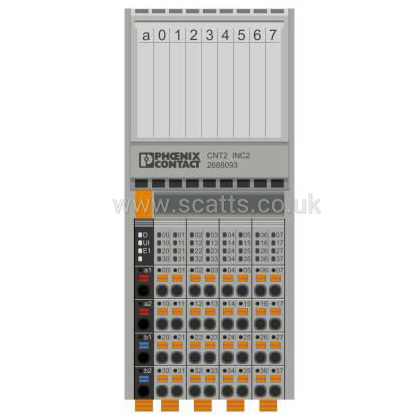

Axioline F, Function module, Symmetrical and asymmetrical encoders, including bus base module and Axioline F connectors
2 counter inputs
2 incremental encoder inputs
Maximum input frequency: 300 kHz/100 kHz (depending on the wiring)
32-bit counter (up and down)
Output control according to two limit values
Counter: counting (source) is controlled via a control input (gate)
Counter: single or periodic counting
Incremental encoder acquisition: Acquisition of digital signals from symmetrical and asymmetrical incremental encoders
Incremental encoder acquisition: evaluation of linear or rotary axes
Device rating plate stored
Counter input for 24 V signals: 2
Incremental encoder inputs: 2
Digital inputs: 8, 24 V DC
Digital outputs: 2, 24 V DC
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£475.82
per 1 (ex. VAT)£570.98
per 1 (inc. VAT)
