Part Number: 2688417
Manufacturer Code: AXL F UTH8 1F
Multiples of: 1 | Minimum Order: 1

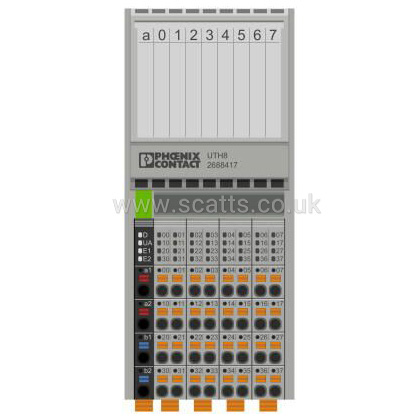

Axioline F, Temperature recording module, including bus base module and Axioline F connectors
8 analog input channels for the connection of thermocouples or linear voltages from -100 mV to +100 mV
1 analog input channel for the connection of voltages from -5 V to +5 V
Connection of sensors in 2-wire technology
Internal detection and compensation of cold junction temperature (can be parameterized)
External connection of Pt 100 cold junction sensors possible
Easy to use due to internal linearization of the sensor characteristic curves
High level of accuracy (typically ±0.01 % sensor type K)
High temperature stability (typically 5 ppm/K)
High resistance to electromagnetic interference (Class A)
"Channel Scout" function
Device rating plate stored
Installation monitoring with indication via diagnostic LED for each channel
Analog inputs: 8 (8 inputs for thermocouples or linear voltage, plus 1 input -5 V to +5 V)
Connection method: 2-wire (shielded, twisted pair)
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£471.60
per 1 (ex. VAT)£565.92
per 1 (inc. VAT)
