My Part Number:
Part Number: 2688527
Manufacturer Code: AXL F AO4 1H
Multiples of: 1 | Minimum Order: 1

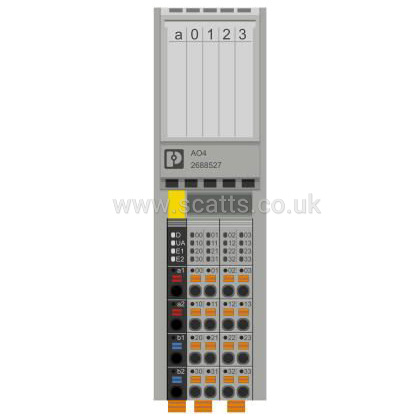

Axioline F, Analog output module, including bus base module and Axioline F connectors
4 analog output channels for the connection of either voltage or current signals
Bipolar voltage outputs, unipolar current outputs
Connection of actuators in 2-wire technology
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA
Short-circuit-proof outputs
No derating in all ranges
Short signal rise times
Driving of high loads
Device rating plate stored
Analog outputs: 4, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA
Connection method: 2-wire
Ttransmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£384.00
per 1 (ex. VAT)£460.80
per 1 (inc. VAT)
