My Part Number:
Part Number: 2703981

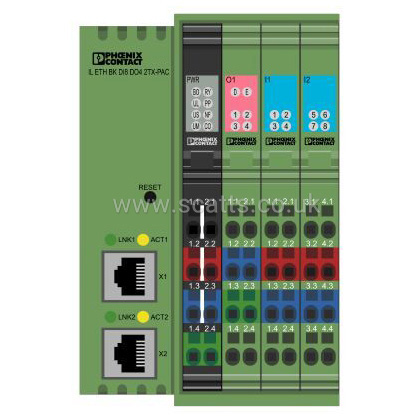

Manufacturer Code: IL ETH BK DI8 DO4 2TX-PAC
Multiples of: 1 | Minimum Order: 1
Inline, Bus coupler, Modbus/TCP(UDP), RJ45 socket, including Inline connectors and marking fields
2 Ethernet ports (with integrated switch)
Auto negotiation
Autocrossing
Transmission speed of 10 Mbps and 100 Mbps
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
8 digital inputs, 4 digital outputs onboard
Data exchange via OPC server supported
Software interfaces for access via TCP/IP: Device Driver Interface (DDI) and High-Level Language Fieldbus Interface (HFI)
Web-based management
Digital inputs: 8 , 24 V DC
Connection method: 3-wire
Digital outputs: 4, 24 V DC, 500 mA
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps / 2 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£369.00
per 1 (ex. VAT)£442.80
per 1 (inc. VAT)
