My Part Number:
Part Number: 2861247
Manufacturer Code: IB IL 24 DI 8-PAC
Multiples of: 1 | Minimum Order: 1

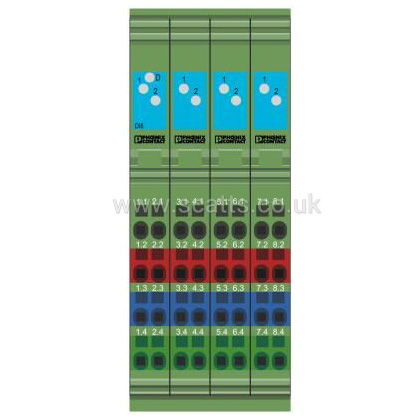

Inline, Digital input terminal, including Inline connectors and marking fields
The terminal is designed for use within an Inline station.
It is used to acquire digital signals.
8 digital inputs
Connection of sensors in 2, 3, and 4-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 2 A
Digital inputs: 8 , 24 V DC
Connection method: 4-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£114.78
per 1 (ex. VAT)£137.74
per 1 (inc. VAT)
Inline, Digital input terminal, including Inline connectors and marking fields
The terminal is designed for use within an Inline station.
It is used to acquire digital signals.
8 digital inputs
Connection of sensors in 2, 3, and 4-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 2 A
Digital inputs: 8 , 24 V DC
Connection method: 4-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
