My Part Number:
Part Number: 2861467
Manufacturer Code: IB IL AO 2/U/BP-PAC
Multiples of: 1 | Minimum Order: 1

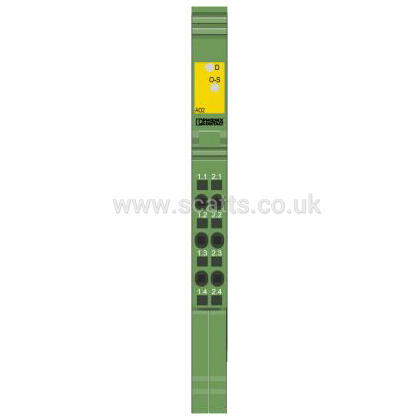

Inline, Analog output terminal, including Inline connector and labeling field
The terminal is designed for use within an Inline station.
It is used to output analog voltage signals.
2 analog output channels
Connection of actuators in 2-wire technology
Voltage ranges: 0 V ... 10 V, ±10 V
Output values can be represented in two different formats
Behavior of the outputs in the event of an error can be configured
Process data update including conversion time of the digital/analog converter < 1 ms
Very good output driver characteristics, making it also suitable for long actuator cables
Analog outputs: 2, 0 V ... 10 V, -10 V ... 10 V
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£259.12
per 1 (ex. VAT)£310.94
per 1 (inc. VAT)
