My Part Number:
Part Number: 2865366
Manufacturer Code: MACX MCR-EX-SL-RPSSI-2I
Multiples of: 1 | Minimum Order: 1
MACX MCR-EX-SL-RPSSI-2I - Repeater power supply

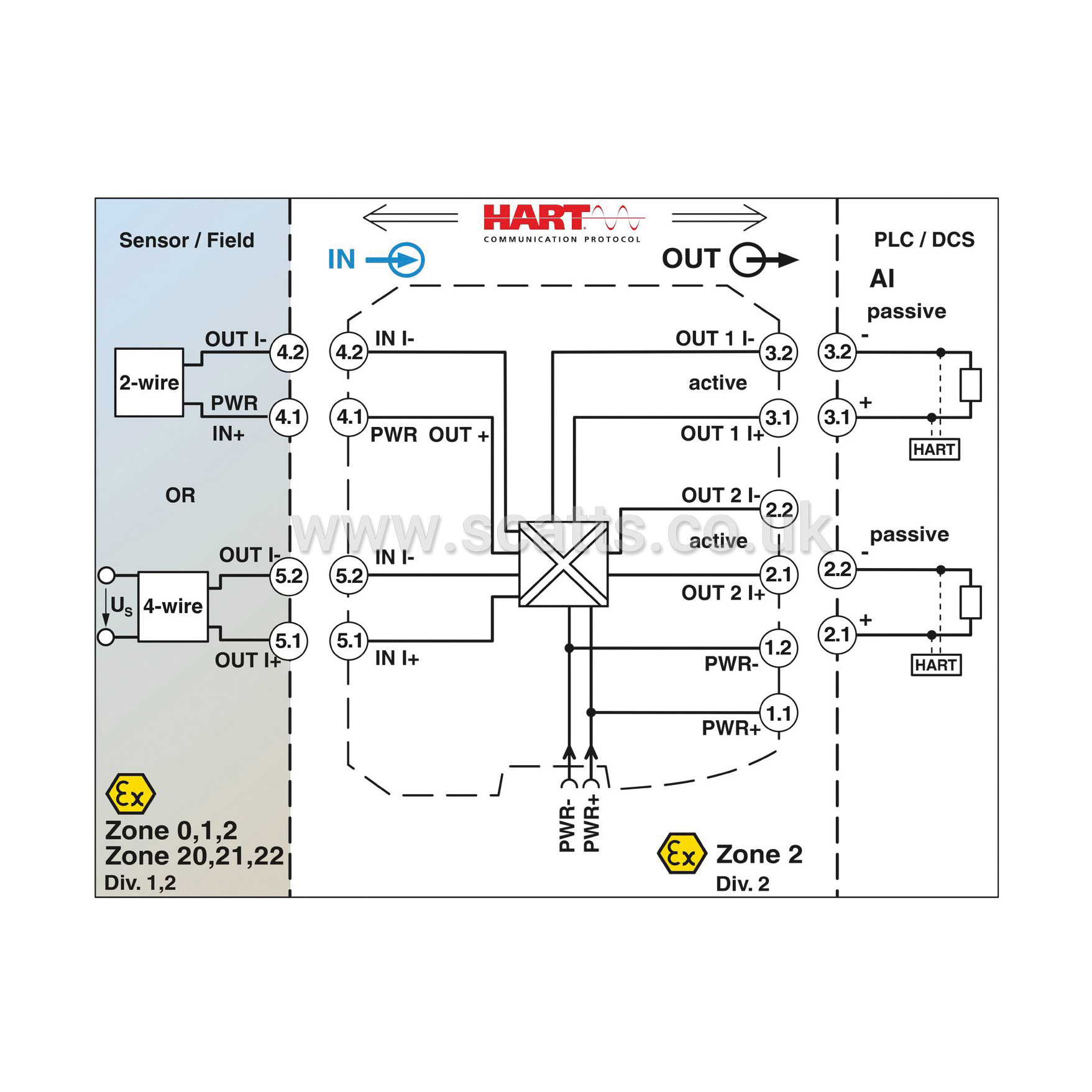

Ex i measuring transducer power supply and input signal conditioner, HART-transparent. Transfers supplied or active 0/4…20 mA electrically isolated signals from the Ex area to two loads in the safe area. 4-way electrical isolation, screw connection, SIL, PL.
Product type: Repeater power supplies
Product family: MACX Analog
No. of channels: 1
Type: Ex i signal conditioners with SIL and PL Functional Safety
Colour: gray (RAL 7042)
Flammability rating according to UL 94: V0 (Housing)
Housing material: PA 6.6-FR
Brand |
PHOENIX CONTACT |
|
£435.28
per 1 (ex. VAT)£522.34
per 1 (inc. VAT)
MACX MCR-EX-SL-RPSSI-2I - Repeater power supply
Ex i measuring transducer power supply and input signal conditioner, HART-transparent. Transfers supplied or active 0/4…20 mA electrically isolated signals from the Ex area to two loads in the safe area. 4-way electrical isolation, screw connection, SIL, PL.
Product type: Repeater power supplies
Product family: MACX Analog
No. of channels: 1
Type: Ex i signal conditioners with SIL and PL Functional Safety
Colour: gray (RAL 7042)
Flammability rating according to UL 94: V0 (Housing)
Housing material: PA 6.6-FR
Brand |
PHOENIX CONTACT |
|
