My Part Number:
Part Number: 2878696
Manufacturer Code: IL MOD BK DI8 DO4-PAC
Multiples of: 1 | Minimum Order: 1

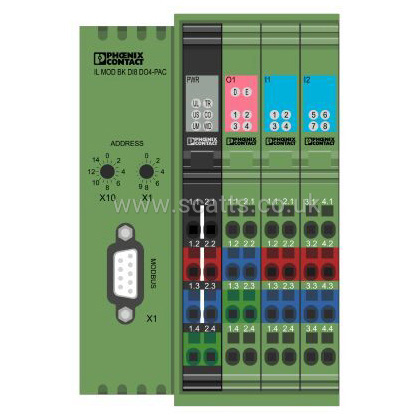

Inline, Bus coupler, Modbus/RTU, D-SUB-9 female connector, including Inline connectors and marking fields
Modbus connection via 9-pos. D-SUB socket
Electrical isolation between Modbus interface and logic
8 digital inputs, 4 digital outputs onboard
Data transmission speed in Modbus of 1.2 kbps to 115.2 kbps (configurable)
Rotary coding switches for setting the Modbus address and for configuration
Supported Modbus addresses from 1 to 99
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
Shipbuilding and UL approvals
Digital inputs: 8 , 24 V DC
Connection method: 3-wire
Digital outputs: 4, 24 V DC, 500 mA
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps / 2 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£354.22
per 1 (ex. VAT)£425.06
per 1 (inc. VAT)
