MINI MCR-2-2I-2I-ILP-PT LOOP-POWERED ISOLATOR

MINI MCR-2-2I-2I-ILP-PT - Loop-powered isolators

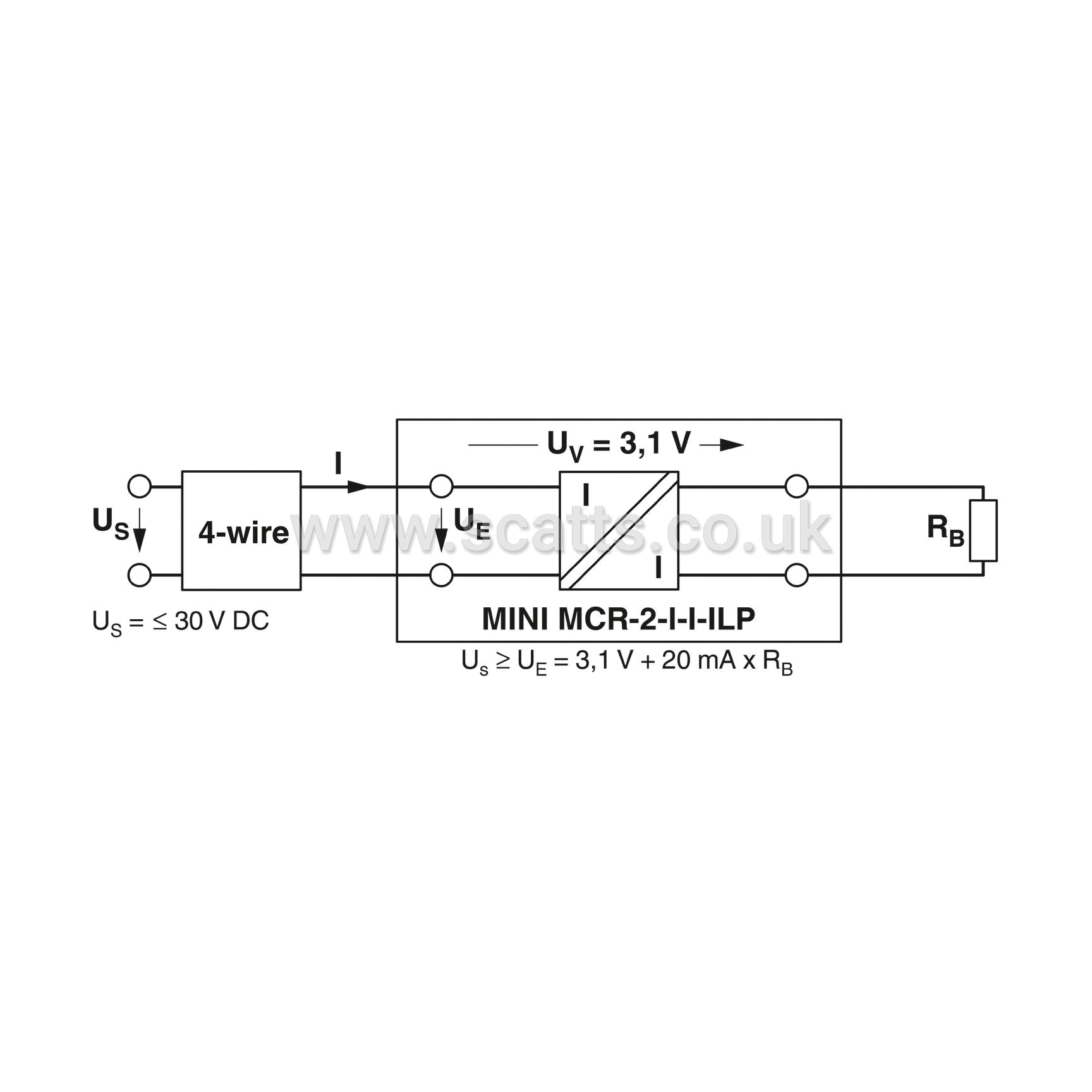

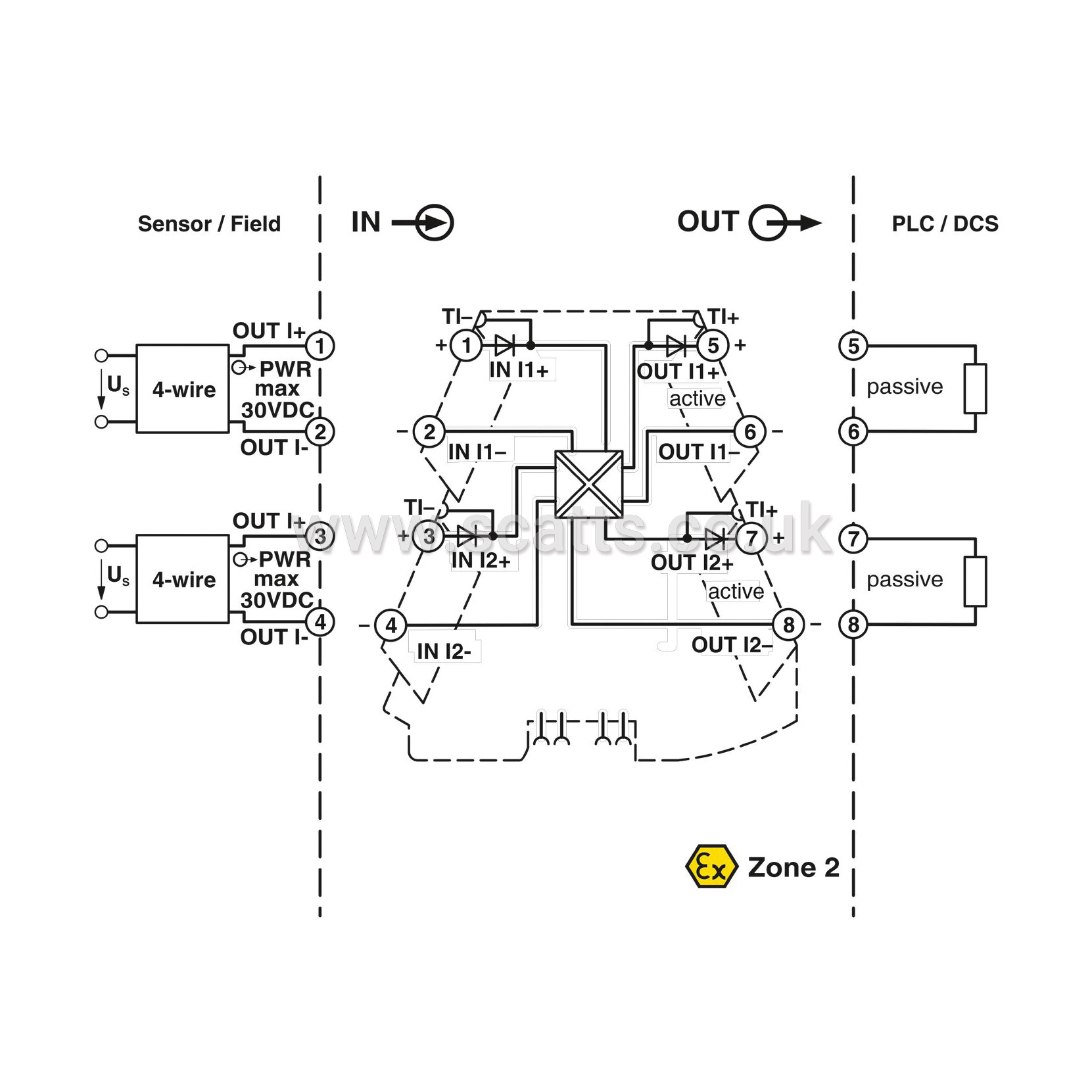

Two-channel input-loop-powered 2-way isolator with plug-in connection technology for the electrical isolation and filtering of analog signals. The input-loop-powered isolator allows operation with active sensor technology with a supply voltage of 9.6 V DC ... 30 V DC. The device is powered via the current loop of the sensor. Input signal = output signal: 0(4) mA to 20 mA. The measuring transducer supports NFC communication.


Product type: Signal conditioner
Product family: MINI Analog Pro
No. of channels: 2
Type: Signal conditioner

Insulation characteristics: GB Standard
Overvoltage category: II
Pollution degree: 2

Colour: gray (RAL 7042)
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2
Housing material: PBT
