MINI MCR-2-UI-I-OLP-PT TRANSDUCER

MINI MCR-2-UI-I-OLP-PT - Loop-powered isolators

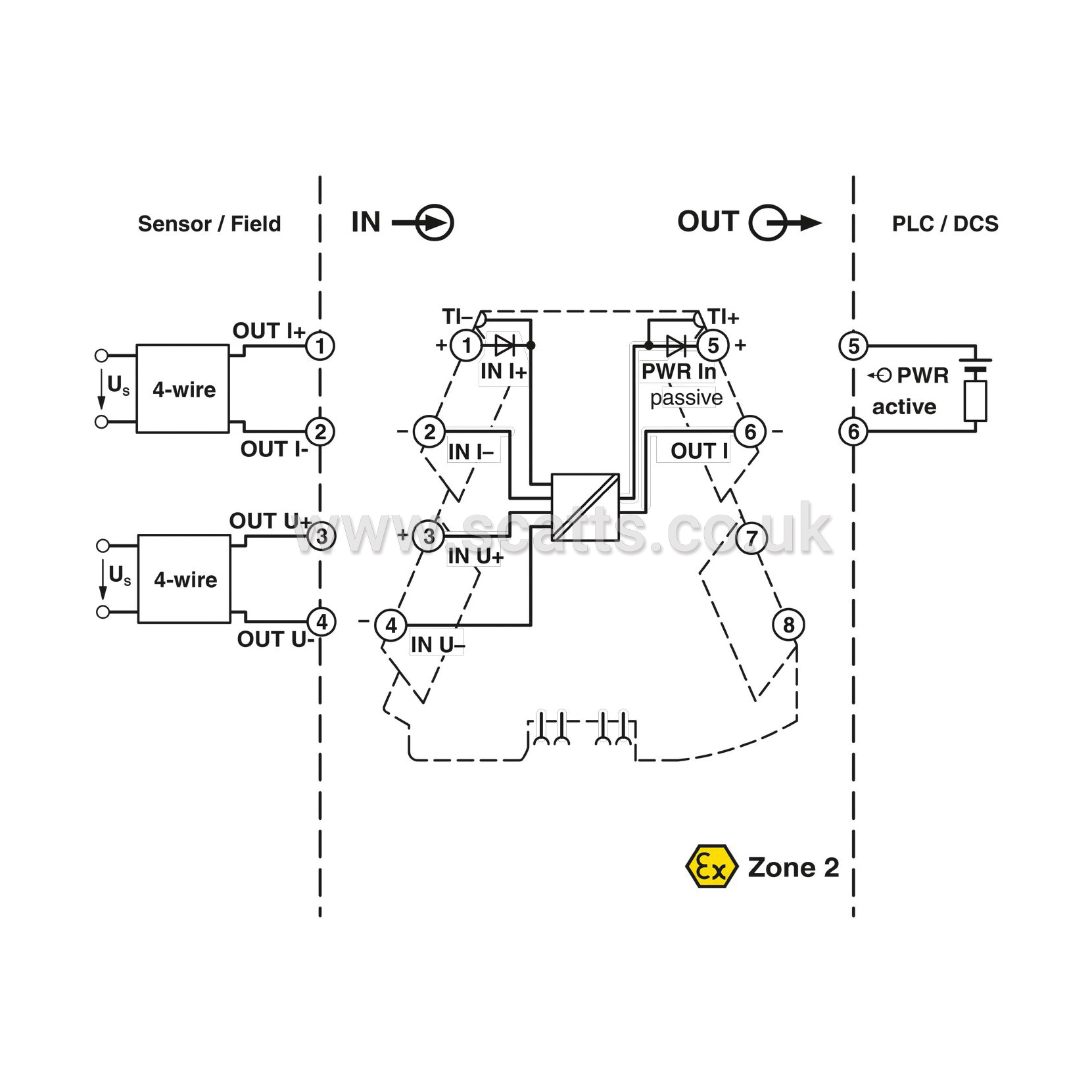

Output loop-powered 2-way isolator with plug-in connection technology for the electrical isolation, conversion, and filtering of analog signals. The output loop-powered isolator allows operation at an active analog input module. The device is supplied via the current loop of the controller. On the input side, standard analog signals and non-standard analog signals can be connected, ranging from 2 mA or 50 mV up to 40 mA or 30 V. These are converted to 4 mA ... 20 mA signals. You can configure the input signals via DIP switches. The measuring transducer supports NFC communication.


Product type: Signal conditioner
Product family: MINI Analog Pro
No. of channels: 1
Type: Signal conditioner
Configuration: DIP switches


Insulation characteristics: GB Standard
Overvoltage category: II
Pollution degree: 2

Colour: gray (RAL 7042)
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2
Housing material: PBT
