My Part Number:
Part Number: 2904599
Manufacturer Code: QUINT4-PS/1AC/24DC/3.8/SC
Multiples of: 1 | Minimum Order: 1
Power supply unit

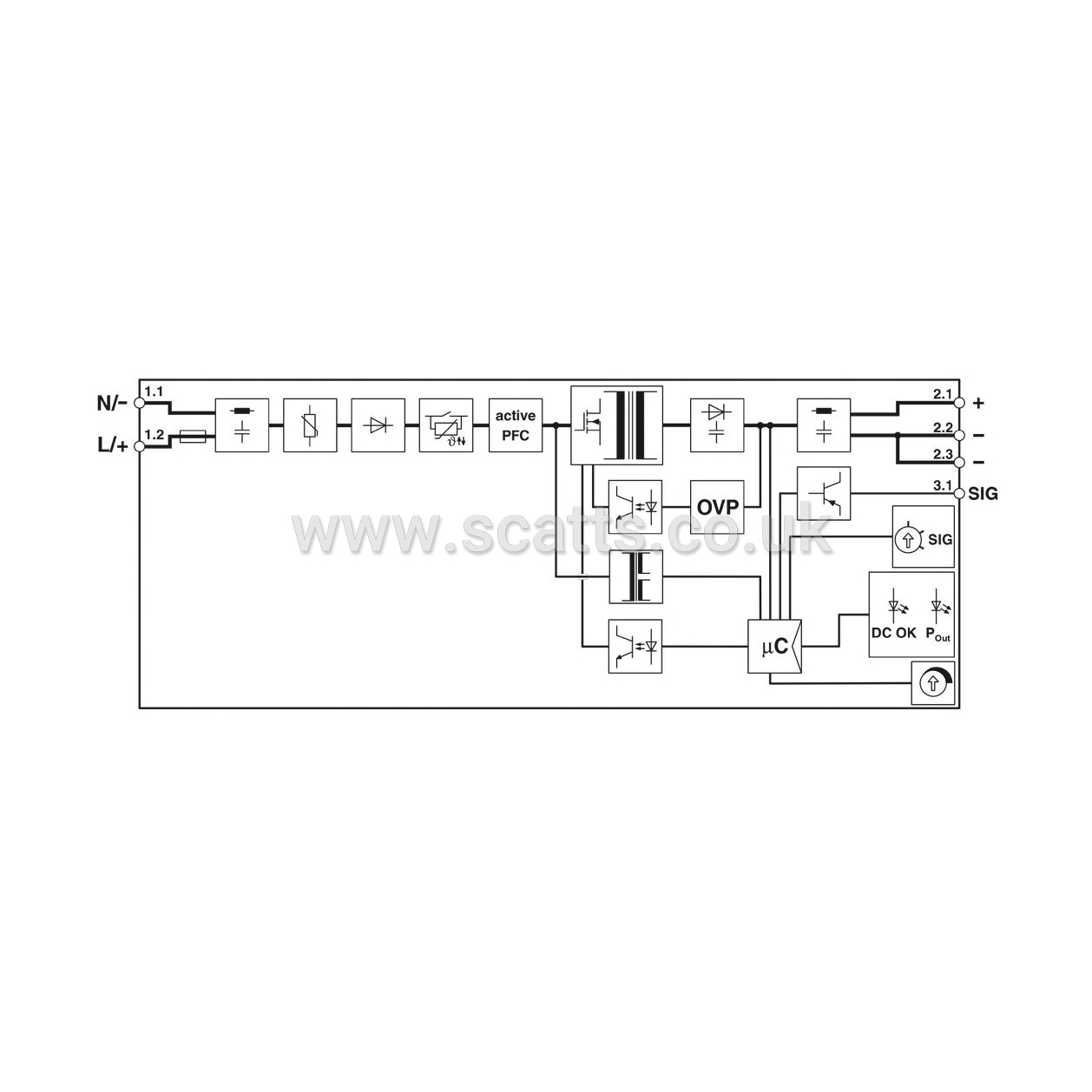

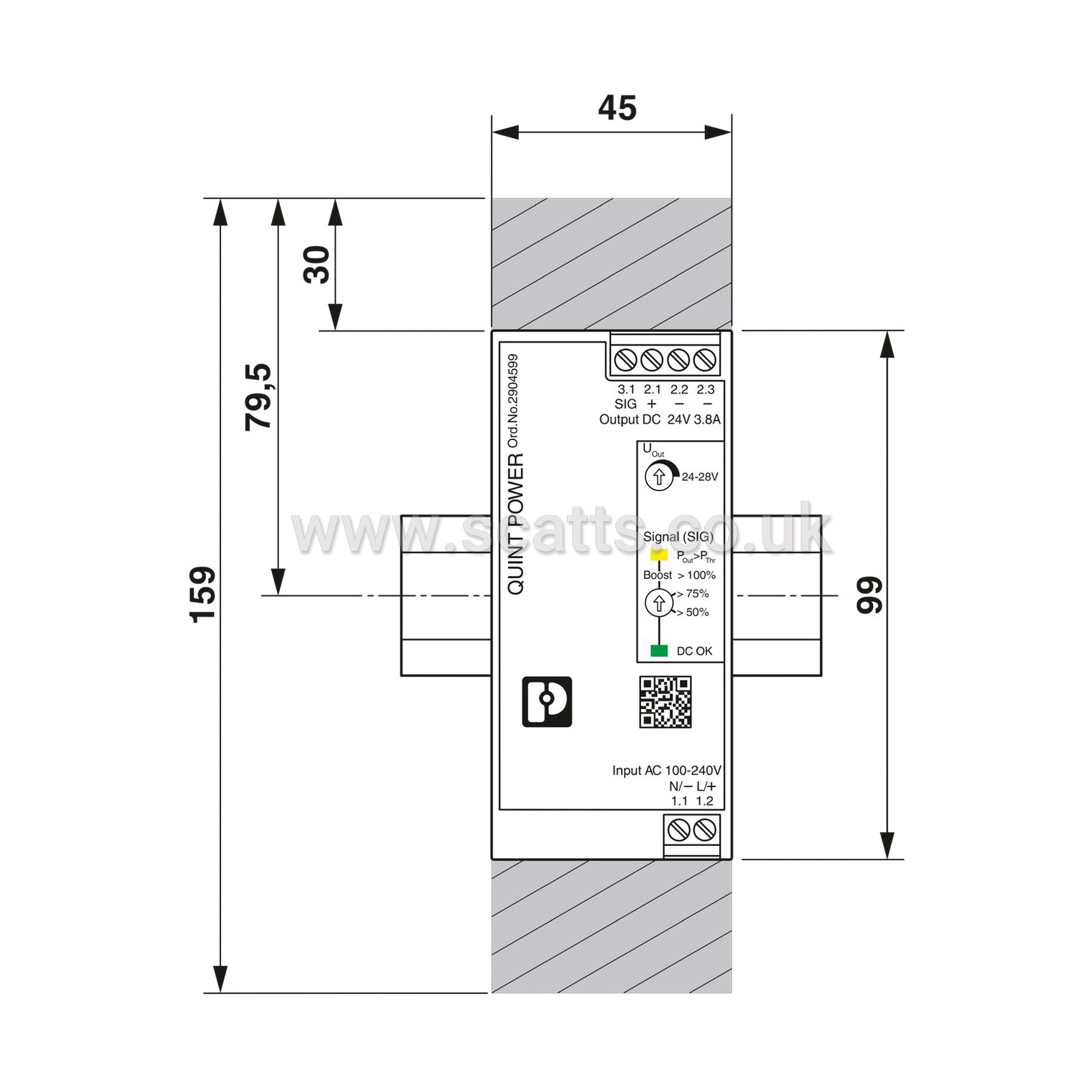

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A
In the power range of up to 100 W, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range.
Product type: Power supply
Product family: QUINT POWER
MTBF (IEC 61709, SN 29500): > 1272000 h (25 °C), > 690000 h (40 °C), > 271000 h (60 °C)
Environmental protection directive: RoHS Directive 2011/65/EU, WEEE, Reach

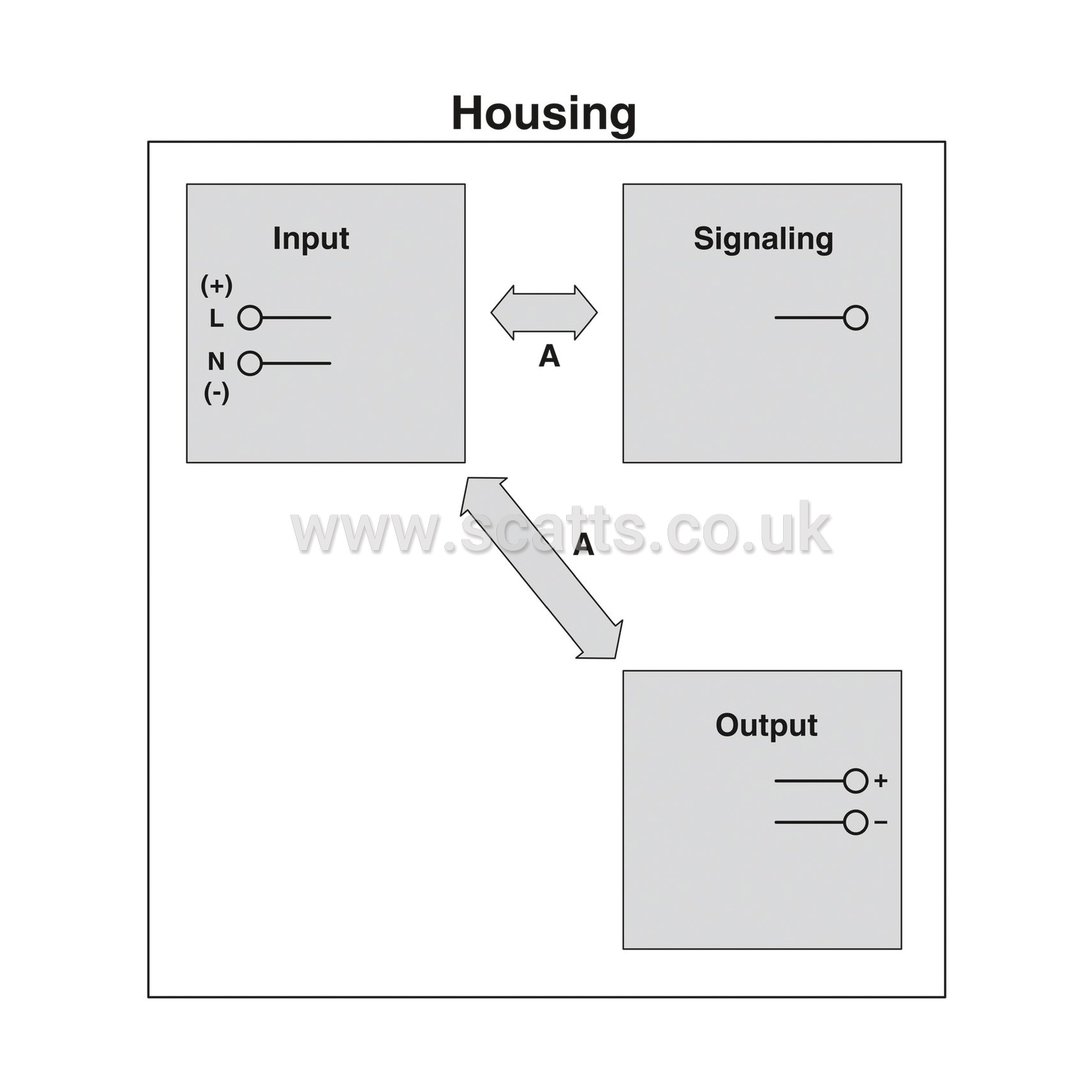

Protection class: II
Degree of pollution: 2
Brand |
PHOENIX CONTACT |
|
£144.51
per 1 (ex. VAT)£173.41
per 1 (inc. VAT)
