My Part Number:
Part Number: 2909569
Manufacturer Code: ELR H5-IS-PT-24DC/500AC-3-P
Multiples of: 1 | Minimum Order: 1

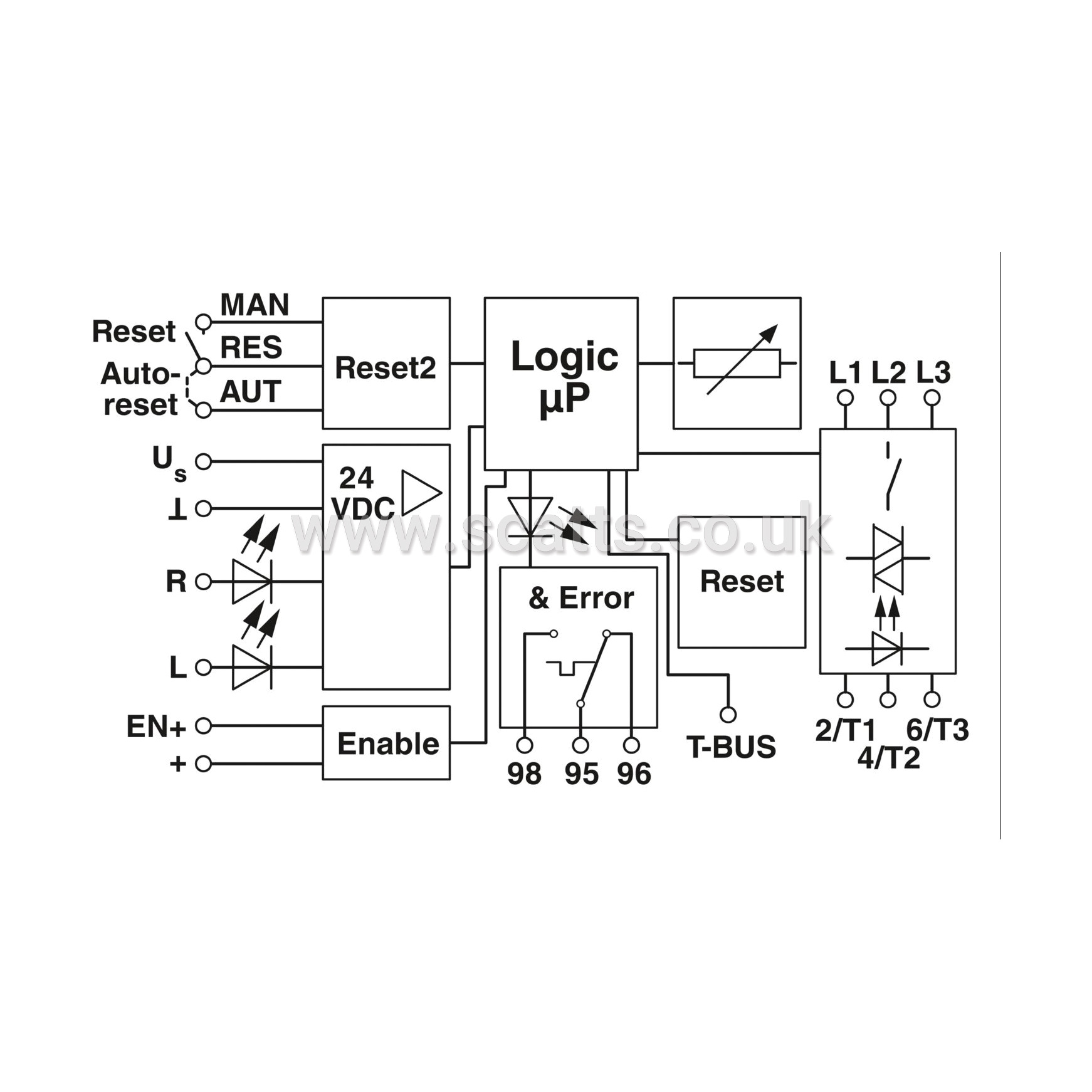

ELR H5-IS-PT- 24DC/500AC-3-P - Hybrid motor starter
Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3~ AC motors up to 3 A, provides motor protection and emergency stop up to SIL 3/PL e. Group shut-down, supply, and relay extension possible via DIN rail connector.
The modular 3-phase hybrid motor starter with reversing function and current monitoring provides the following functions: - Forward running - Reverse running - Motor overload protection - Emergency stop to performance level PLe (TÜV certified) Additional advantages are provided by using the DIN rail connector adapter (Item No. 2203861): - Emergency stop of the enable signal is also possible via the DIN rail connector, e.g. via a safety relay (PSR DC38...)
Power can also be supplied via the DIN rail connector by a system power supply (e. g., QUINT4-SYS...) or via the PCB connector IMC 1,5/ 5-ST-3,81, Item No. 1857919 - Optional relay module (e. g., EM-2RSC/21AU-R/L-P, Item No. 2908701) provides additional status information Thanks to the internal interlocking circuit and load wiring, wiring expense is reduced to a minimum.
Product type: Hybrid motor starters
Product family: CONTACTRON
Operating mode: 100% operating factor
Number of phases: 3
Motor starter type: Reversing starter
Switching frequency: ≤ 2 Hz (Load-dependent)
Maximum power dissipation: 4.1 W
Minimum power dissipation: 0.88 W
Coordination type: 1
Supply
Rated control circuit supply voltage US: 24 V DC
Control supply voltage range: 19.2 V DC ... 30 V DC
Rated control supply current IS: 60 mA
Protective circuit: Surge protection, Reverse polarity protection
Insulation characteristics
Rated insulation voltage: 550 V
Rated surge voltage: 6 kV
Overvoltage category: III
Degree of pollution: 2
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit: Safe isolation (IEC 60947-1)
Isolation characteristics between the control input and control supply voltage to auxiliary circuit: Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Emergency tripping
Operate threshold : > 33 A
Response time: < 0.5 s
Brand |
PHOENIX CONTACT |
|
£173.58
per 1 (ex. VAT)£208.30
per 1 (inc. VAT)
