My Part Number:
Part Number: 2910120
Manufacturer Code: QUINT4-PS/24DC/24DC/10/PT
Multiples of: 1 | Minimum Order: 1
QUINT4-PS/24DC/24DC/10/PT - DC/DC converter
Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 10 A
QUINT DC/DC converter with maximum functionality
DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.
QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Product type: DC/DC converters
Product family: QUINT POWER
MTBF (IEC 61709, SN 29500): > 1380000 h (25 °C), > 800000 h (40 °C), > 340000 h (60 °C)

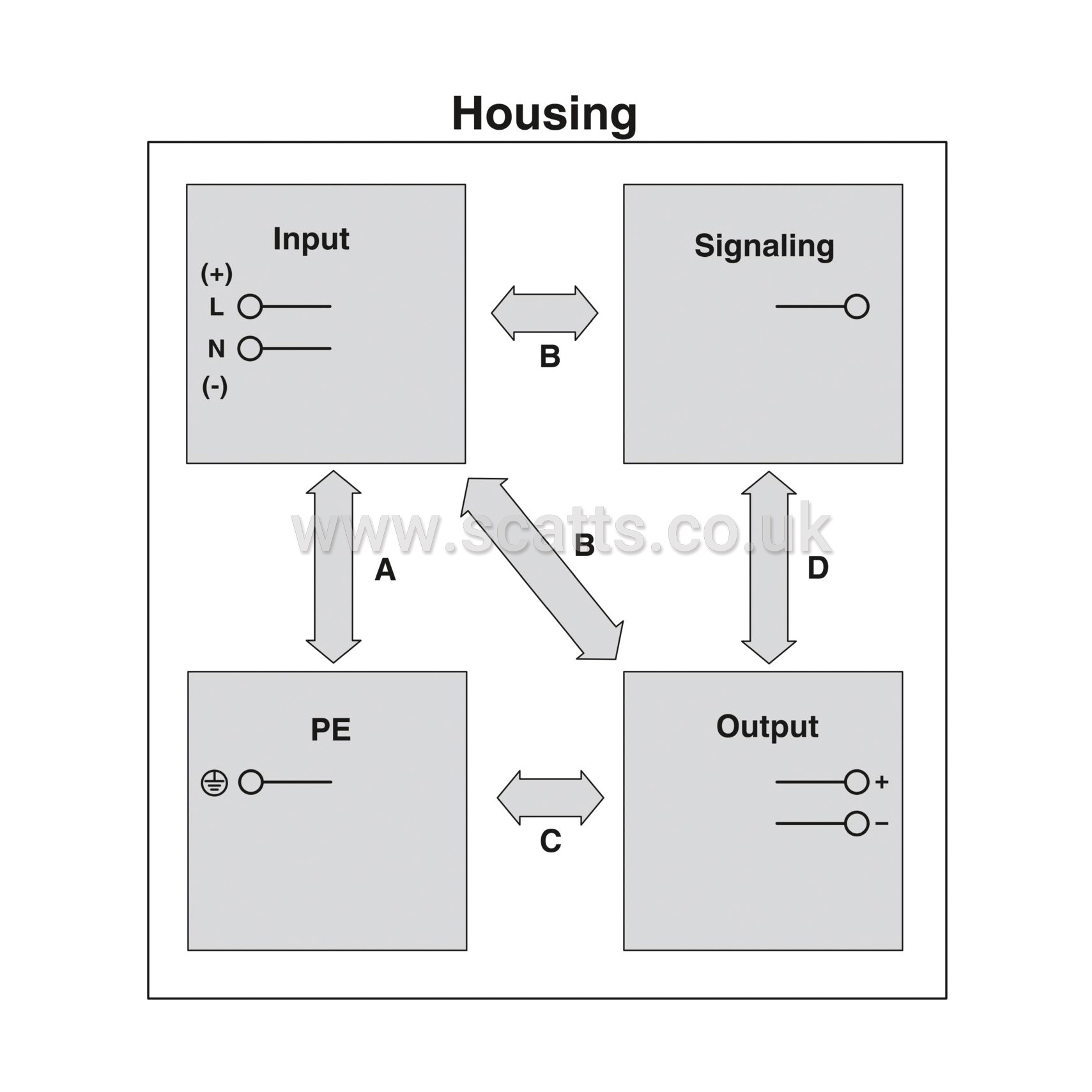

Insulation characteristics
Protection class: Special with SELV input and output
Degree of pollution: 2
Life expectancy (electrolytic capacitors)
Current: 5 A
Temperature: 40 °C
Time: 367721 h
Additional text: 24 V DC
Life expectancy (electrolytic capacitors)
Current: 10 A
Temperature: 40 °C
Time: 183860 h
Additional text: 24 V DC
Life expectancy (electrolytic capacitors)
Current: 10 A
Temperature: 30 °C
Time: 422400 h
Additional text: 24 V DC
Number of phases: 1.00
Insulation voltage input/output: 4 kV DC (type test), 2 kV DC (routine test)
Switching frequency: 190.00 kHz ... 220.00 kHz (Auxiliary converter stage), 67.00 kHz ... 135.00 kHz (Main converter stage)
Brand |
PHOENIX CONTACT |
|
£313.89
per 1 (ex. VAT)£376.67
per 1 (inc. VAT)
