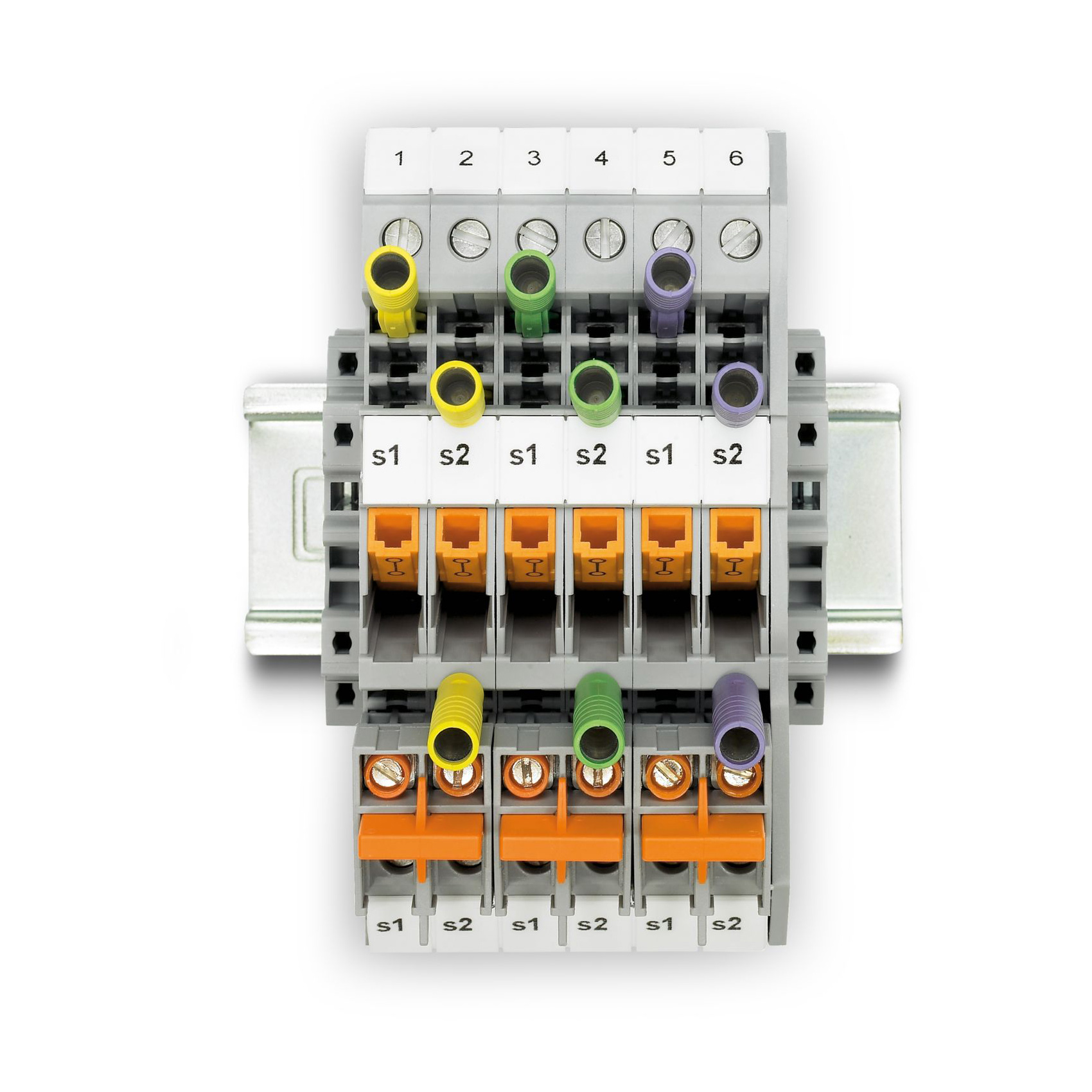

PAI-4-FIX-5/6 TEST ADAPTOR(10)

4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch


Product type: Test socket
Number of positions: 1

Maximum load current: 10 A
Max. voltage: 250 V

Maximum load current: 10 A
Connection method: Plug-in connection

Width: 5.8 mm
Height: 5.8 mm
Depth: 45.3 mm
Diameter: 5.8 mm
Pin diameter: 2.4 mm

Colour: black (RAL 9005)
Material: Copper
Flammability rating according to UL 94: V0
Insulating material: PA
Static insulating material application in cold: -60 °C
Relative insulation material temperature index (Elec., UL 746 B): 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed

Insertion/withdrawal cycles: 1

Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly): -5 °C ... 70 °C
Ambient temperature (actuation): -5 °C ... 70 °C
Permissible humidity (operation): 20 % ... 90 %
Permissible humidity (storage/transport): 30 % ... 70 %
