Part Number: 3036055
Manufacturer Code: ST 2,5-PE/3L
Multiples of: 1 | Minimum Order: 1

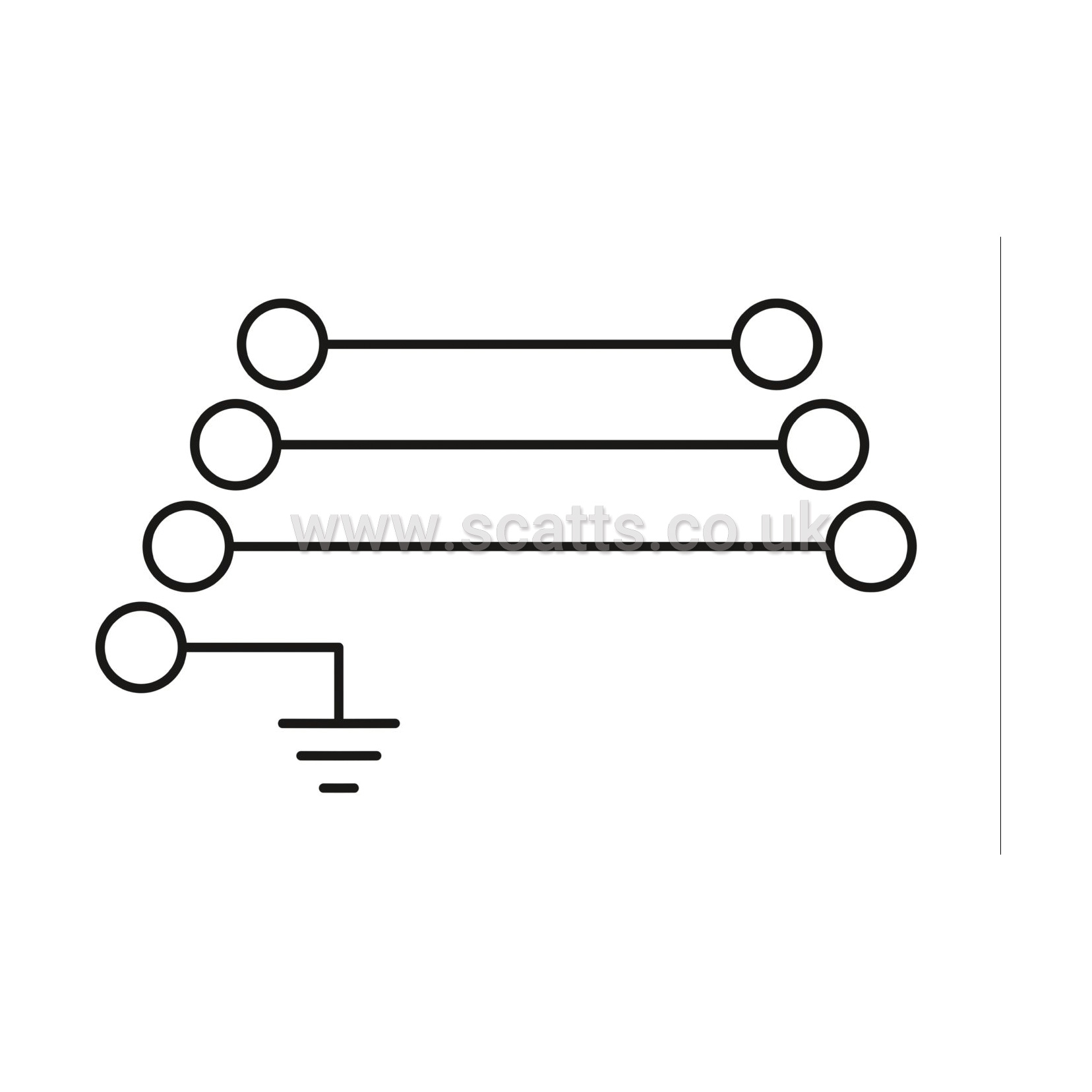

ST 2,5-PE/3L - Motor connection terminal block
Motor terminal block, four-level, with PE foot, connection method: spring-cage connection, cross section: 0.08 mm2 - 4 mm2, AWG: 28 - 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Product type: Motor terminal block
Number of connections: 7
Number of rows: 4
Potentials: 4
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 0.77 W
Width: 5.2 mm
End cover width: 2.2 mm
Height: 98.5 mm
Brand |
PHOENIX CONTACT |
|
£5.91
per 1 (ex. VAT)£7.09
per 1 (inc. VAT)
