My Part Number:
Part Number: 3036482
Manufacturer Code: ST6-TWIN-PE
Multiples of: 1 | Minimum Order: 1

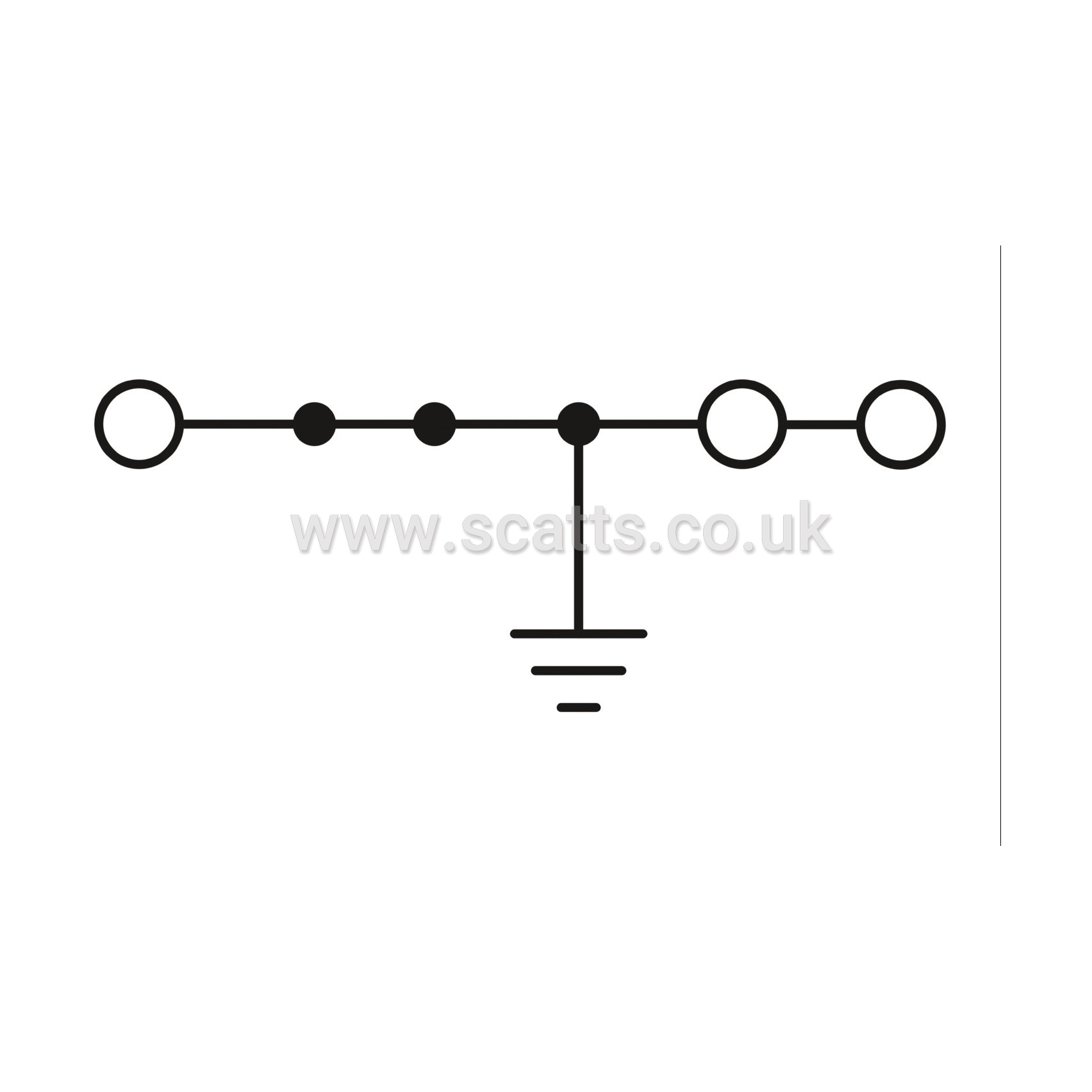

ST 6-TWIN-PE - Ground terminal
Ground terminal, number of connections: 3, connection method: Spring-cage connection, 1 level, cross section: 0.2 mm2 - 10 mm2, mounting type: NS 35/7,5, NS 35/15, colour: green-yellow
Product type: Ground terminal block
Area of application: Railway industry, Machine building, Plant engineering, Process industry
Number of connections: 3
Number of rows: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 1.31 W
Grounding foot: Yes
Number of connections per level: 3
Nominal cross section: 6 mm²
1 level
Note: Please observe the current carrying capacity of the DIN rails.
Stripping length: 12 mm
Internal cylindrical gage: A5
Connection in acc. with standard: IEC 60947-7-2
Conductor cross section rigid: 0.2 mm² ... 10 mm²
Cross section AWG: 24 ... 8 (converted acc. to IEC)
Conductor cross section flexible: 0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]: 24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 6 mm²
Width: 8.2 mm
End cover width: 2.2 mm
Height: 90.5 mm
Brand |
PHOENIX CONTACT |
|
£5.69
per 1 (ex. VAT)£6.83
per 1 (inc. VAT)
