My Part Number:
Part Number: 3208537
Manufacturer Code: PTTB1,5/S-PE
Multiples of: 1 | Minimum Order: 1

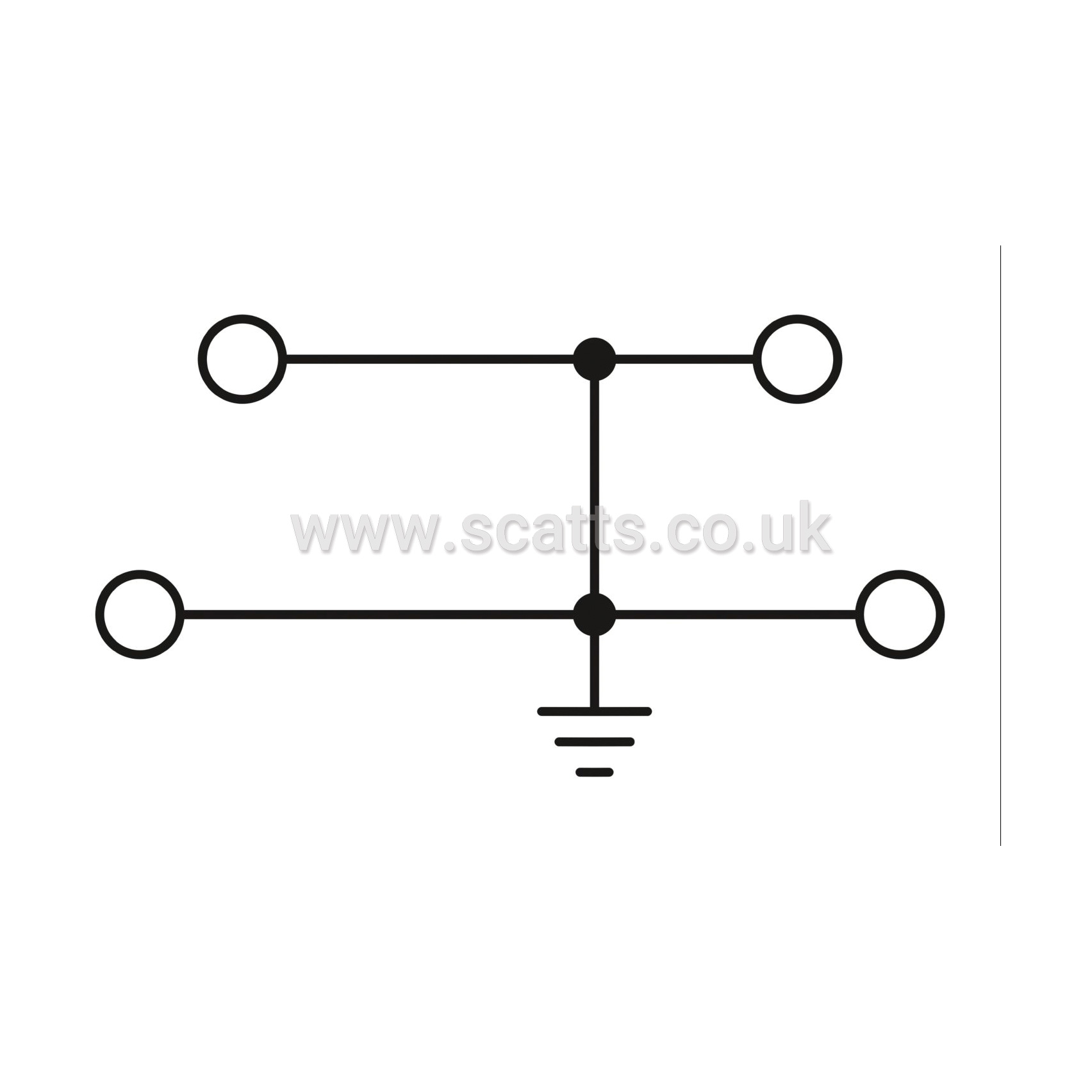

PTTB 1,5/S-PE - Protective conductor double-level terminal block
Protective conductor double-level terminal block, number of connections: 4, connection method: Push-in connection, 1st and 2nd level, cross section: 0.14 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, colour: green-yellow
Product type: Ground terminal block
Area of application: Railway industry, Machine building, Plant engineering
Number of connections: 4
Number of rows: 2
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 6 kV
Maximum power dissipation for nominal condition: 0.56 W
Width: 3.5 mm
End cover width: 2.2 mm
Height: 65.4 mm
Depth: 41.1 mm
Colour: green-yellow
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Brand |
PHOENIX CONTACT |
|
£643.74
per 100 (ex. VAT)£772.49
per 100 (inc. VAT)
