My Part Number:
Part Number: 3273392
Manufacturer Code: PTFIX6/18X2,5 OG (ORANGE)
Multiples of: 1 | Minimum Order: 1

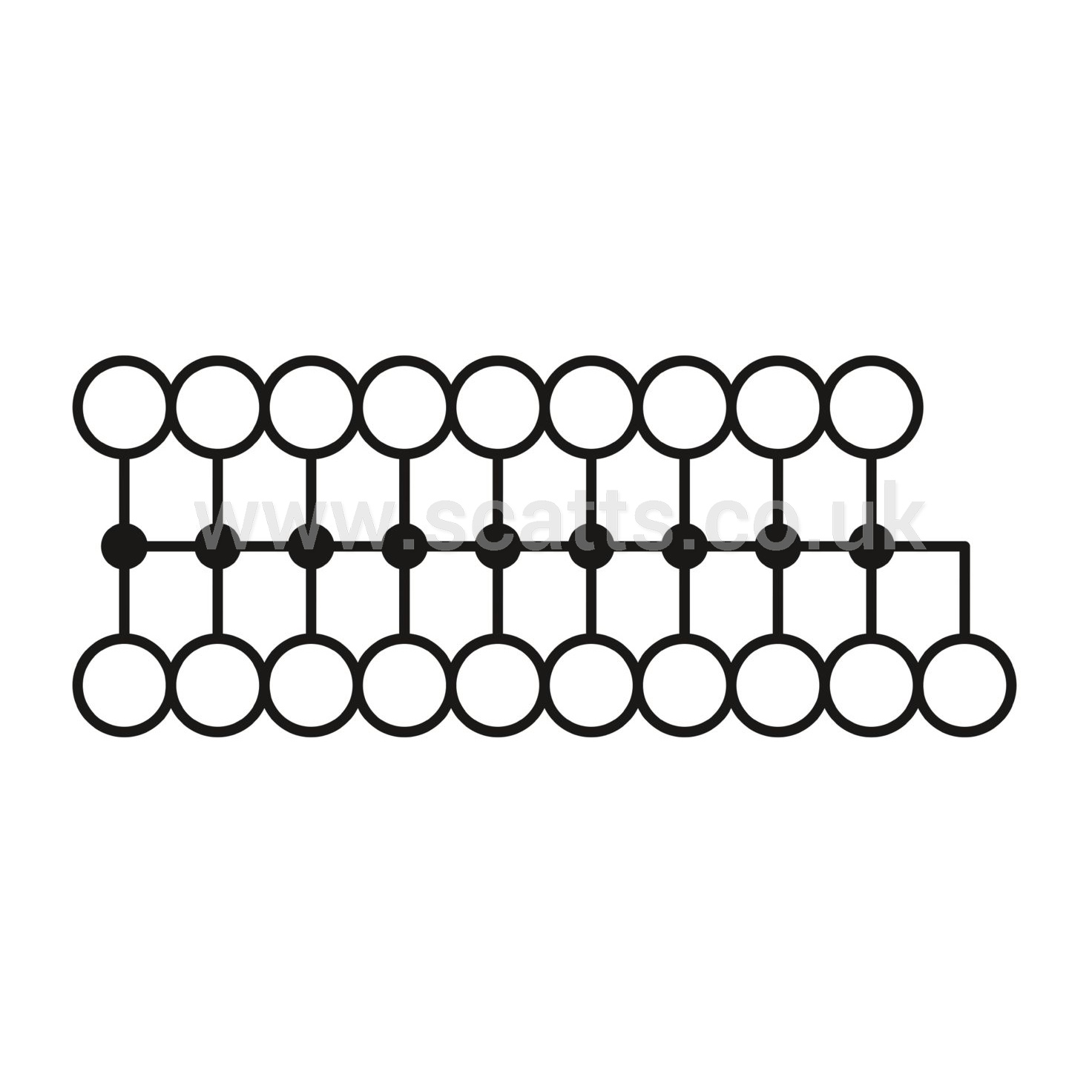

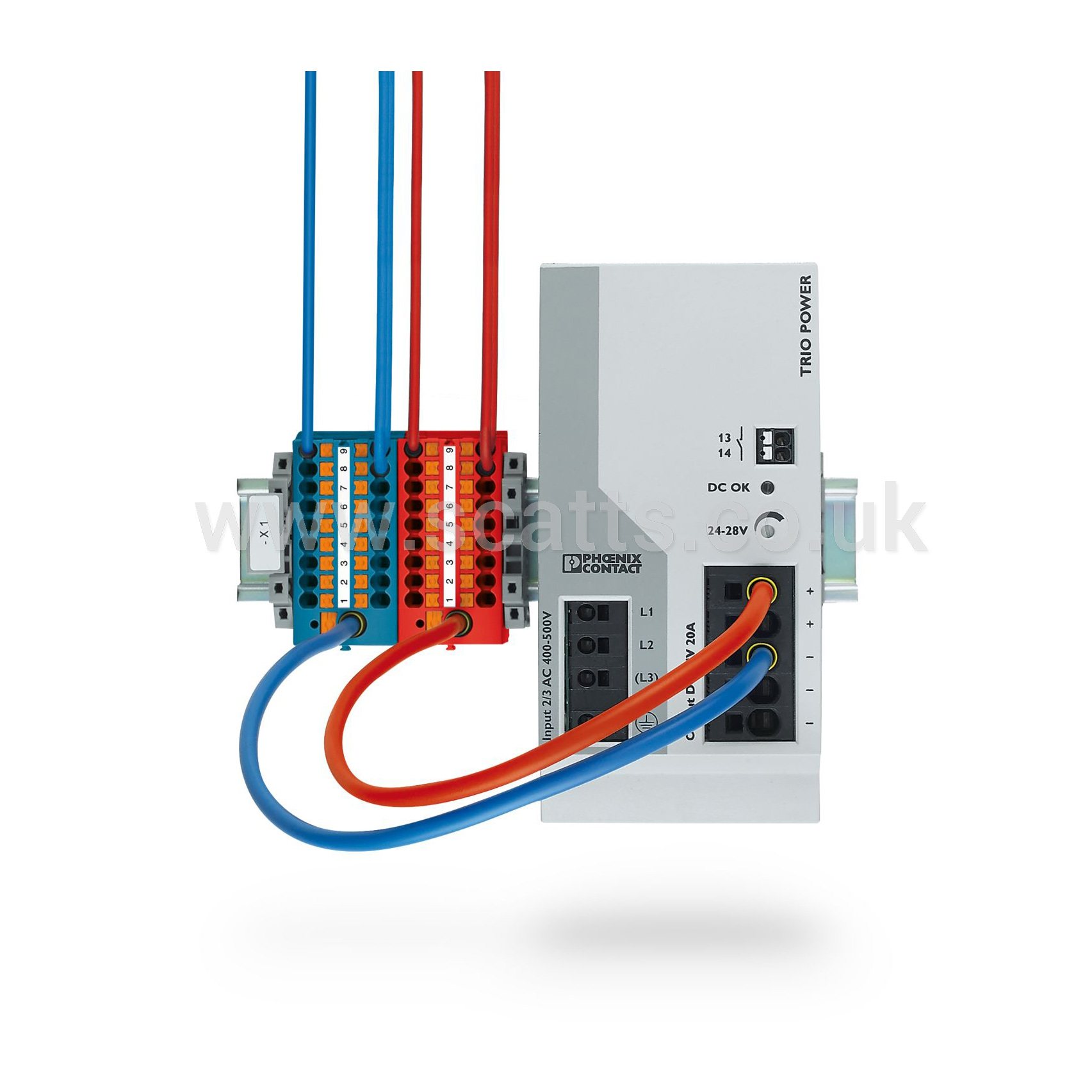

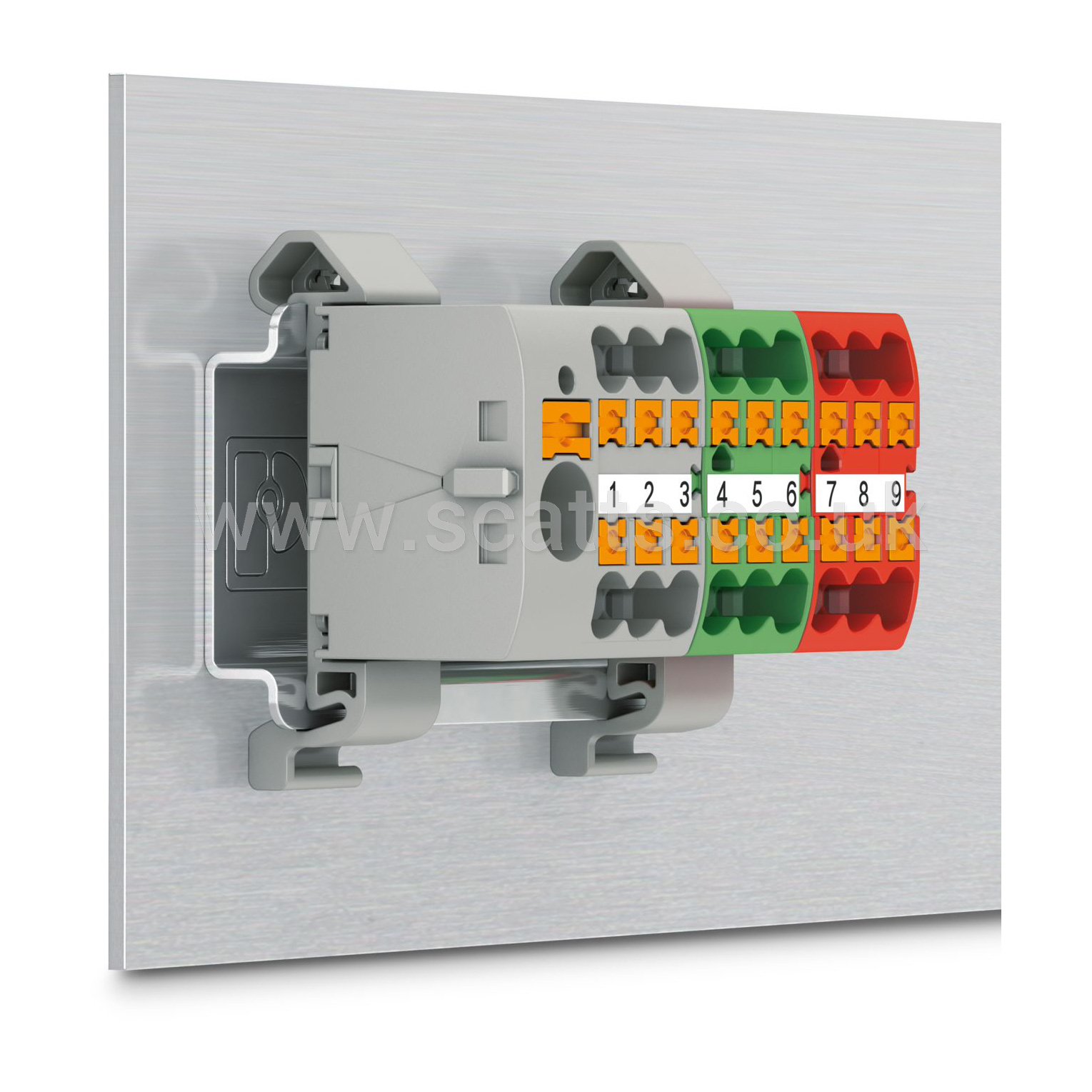

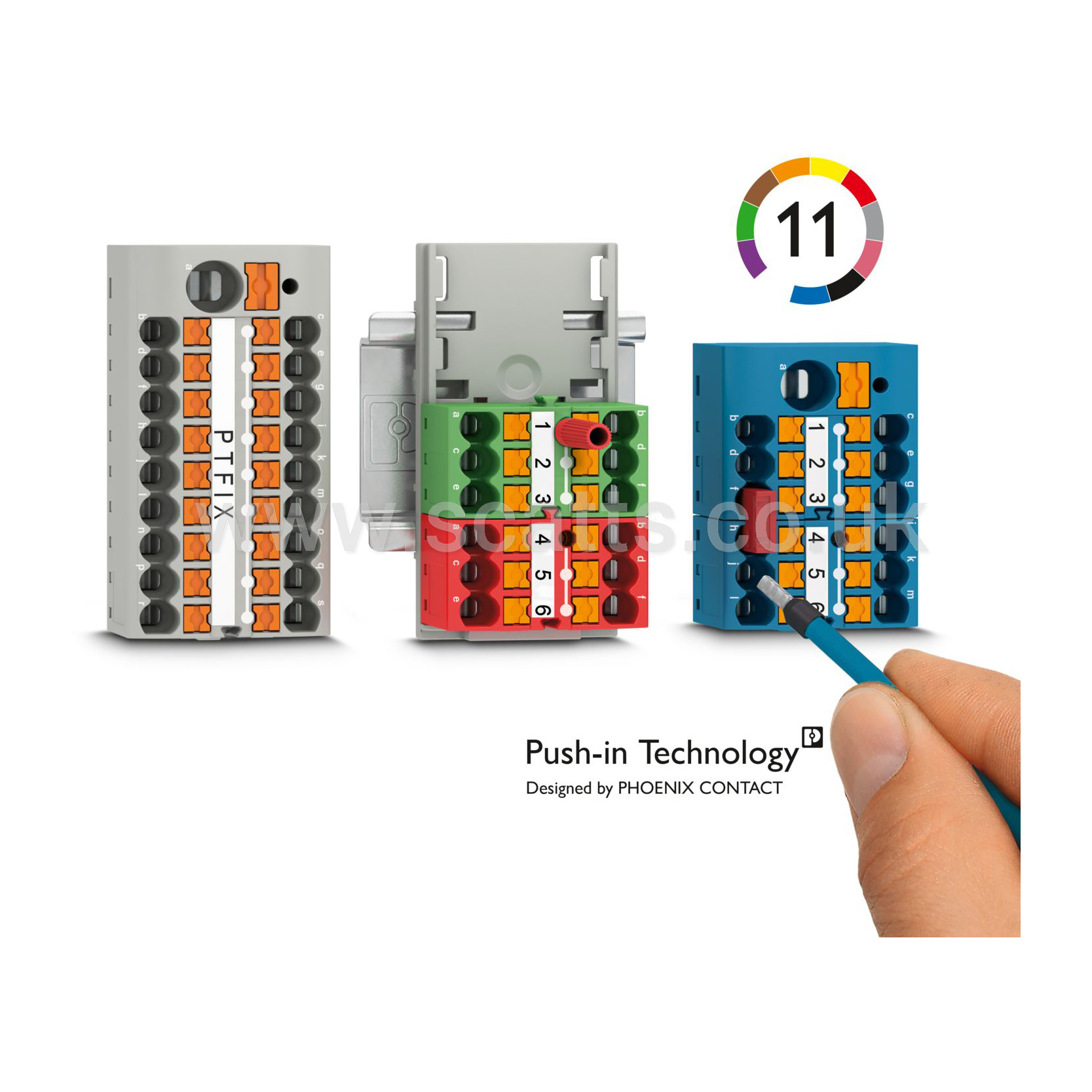

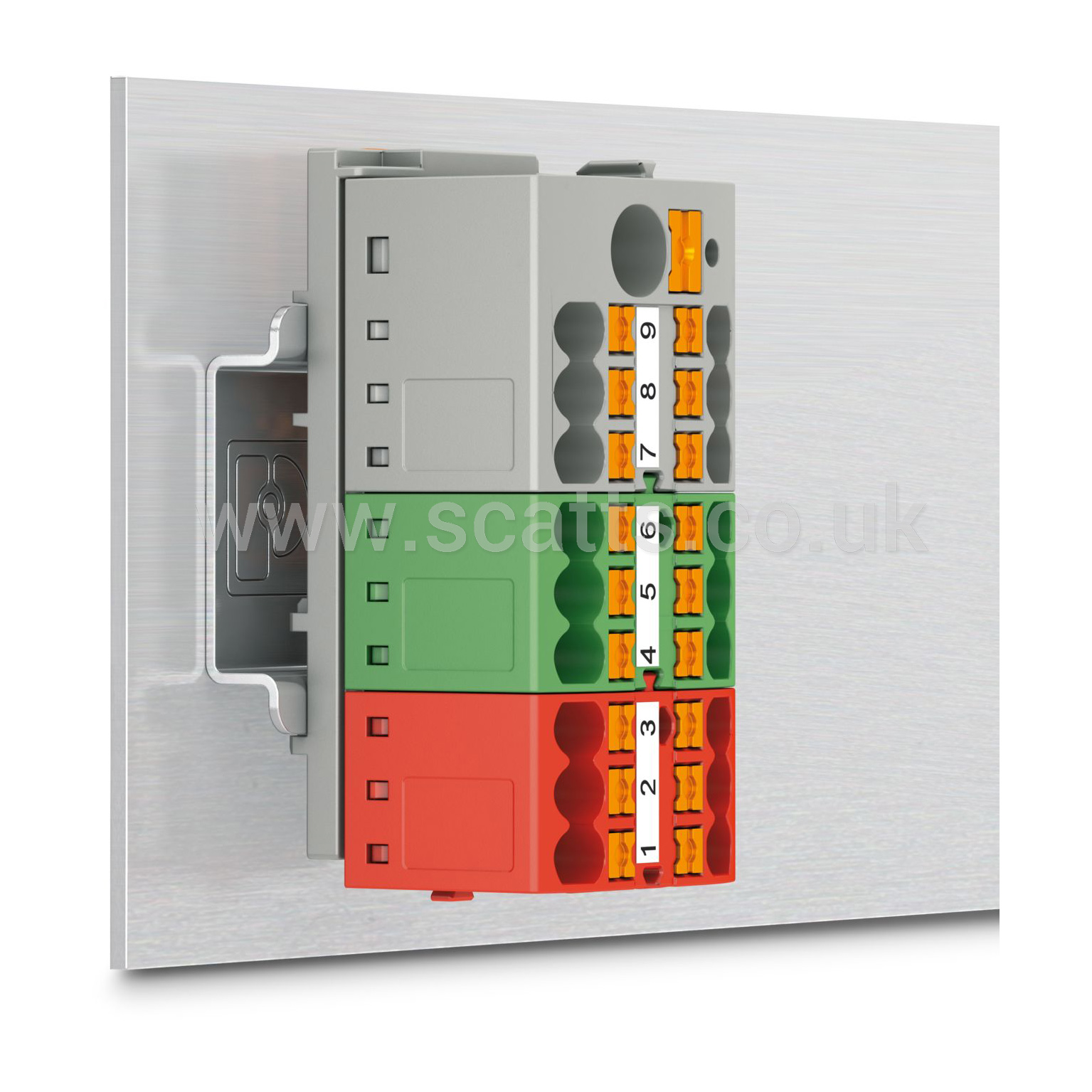

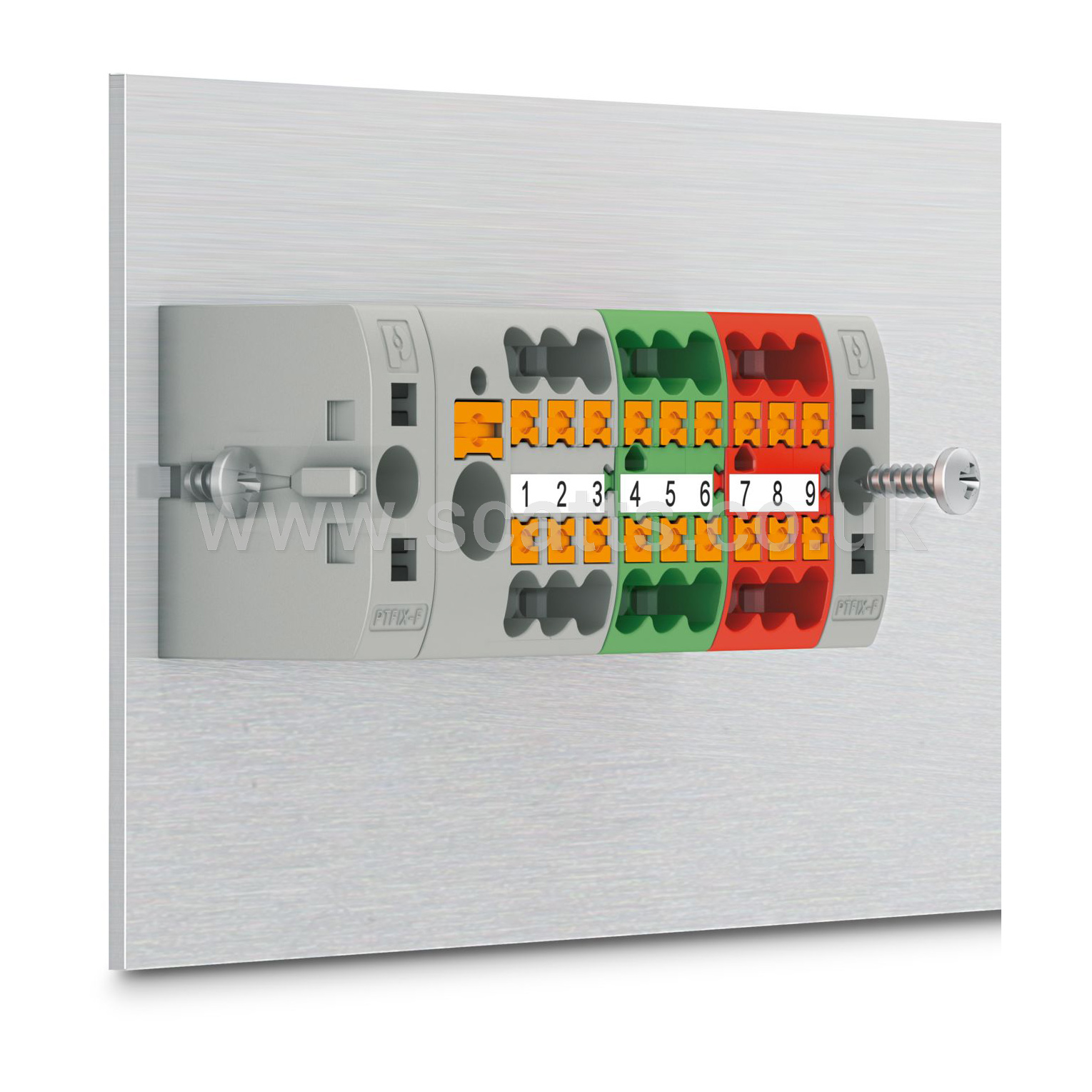

PTFIX 6/18X2,5 OG - Distribution block
Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Rated cross section: 2.5 mm2, Load contact, cross section: 0.14 mm2 - 4 mm2, Push-in connection, Line contact, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, colour: orange
Product type: Distributor terminal block
Number of connections: 19
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Brand |
PHOENIX CONTACT |
|
£701.84
per 100 (ex. VAT)£842.21
per 100 (inc. VAT)
PTFIX 6/18X2,5 OG - Distribution block
Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Rated cross section: 2.5 mm2, Load contact, cross section: 0.14 mm2 - 4 mm2, Push-in connection, Line contact, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, colour: orange
Product type: Distributor terminal block
Number of connections: 19
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Brand |
PHOENIX CONTACT |
|
