My Part Number:
Part Number: 3274144
Manufacturer Code: PTFIX18X2,5-NS15AGY
Multiples of: 1 | Minimum Order: 1
PTFIX 18X2,5-NS15A GY - Distribution block

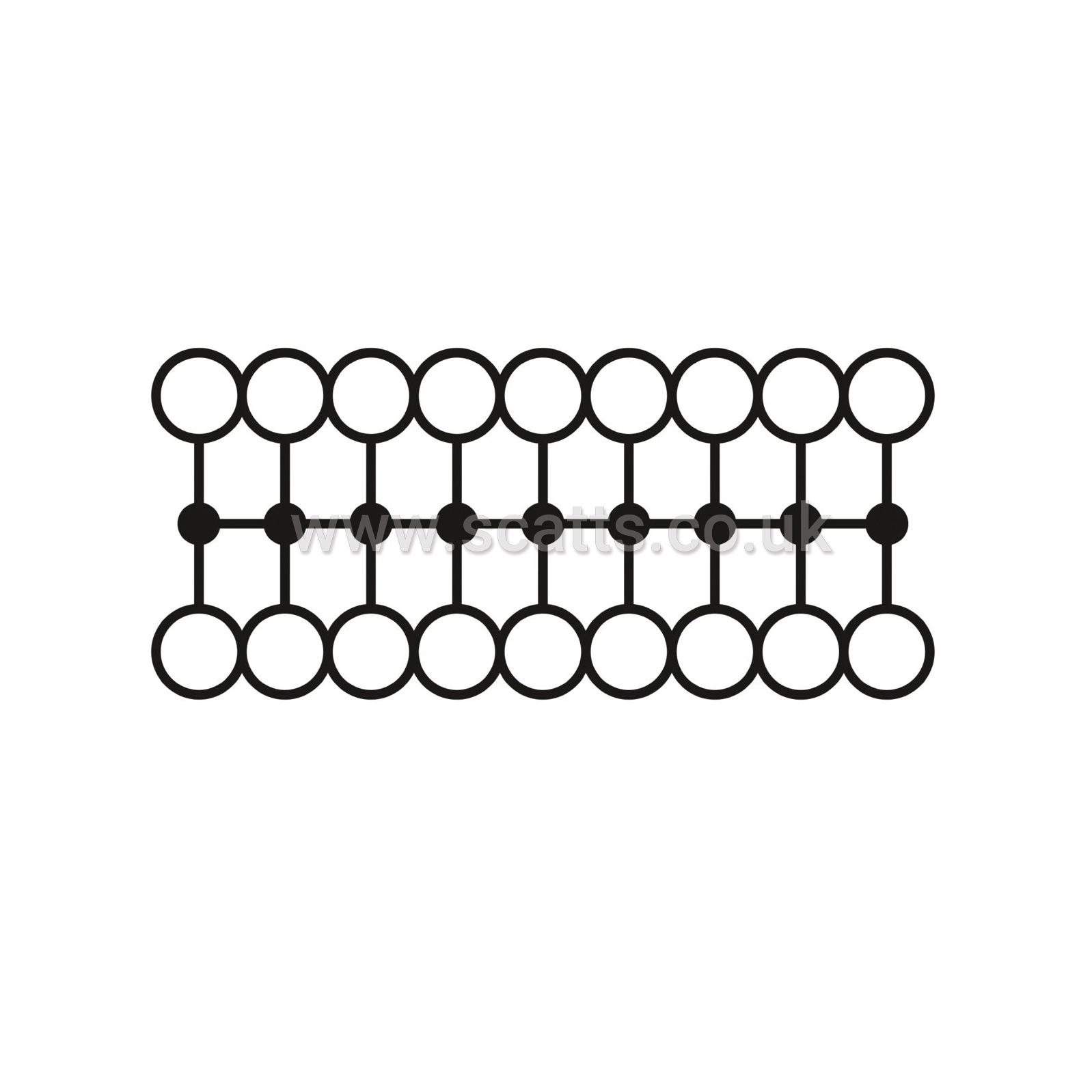

Distribution block, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 15, colour: gray
Product type: Distributor terminal block
Number of connections: 18
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 8 kV
Maximum power dissipation for nominal condition: 0.77 W
Width: 46.9 mm
Height: 28.6 mm
Depth on NS 15: 31.4 mm
Colour: gray
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Brand |
PHOENIX CONTACT |
|
£6.48
per 1 (ex. VAT)£7.78
per 1 (inc. VAT)
