My Part Number:
Part Number: SPX-MPFL-12K5-W-9090
Manufacturer Code: SPX-MPFL12K5-W-9090/110-277VAC
Multiples of: 1 | Minimum Order: 1

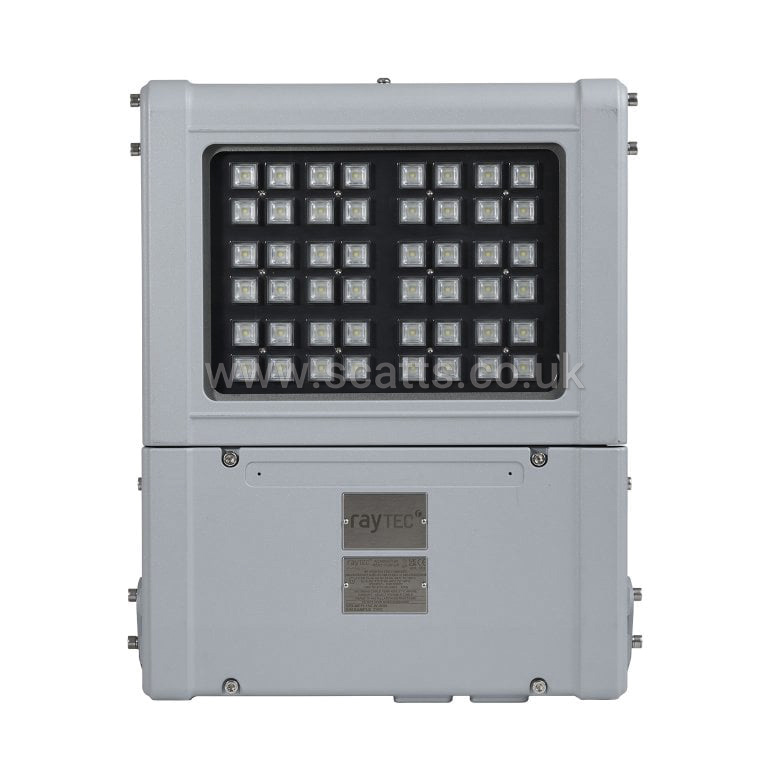

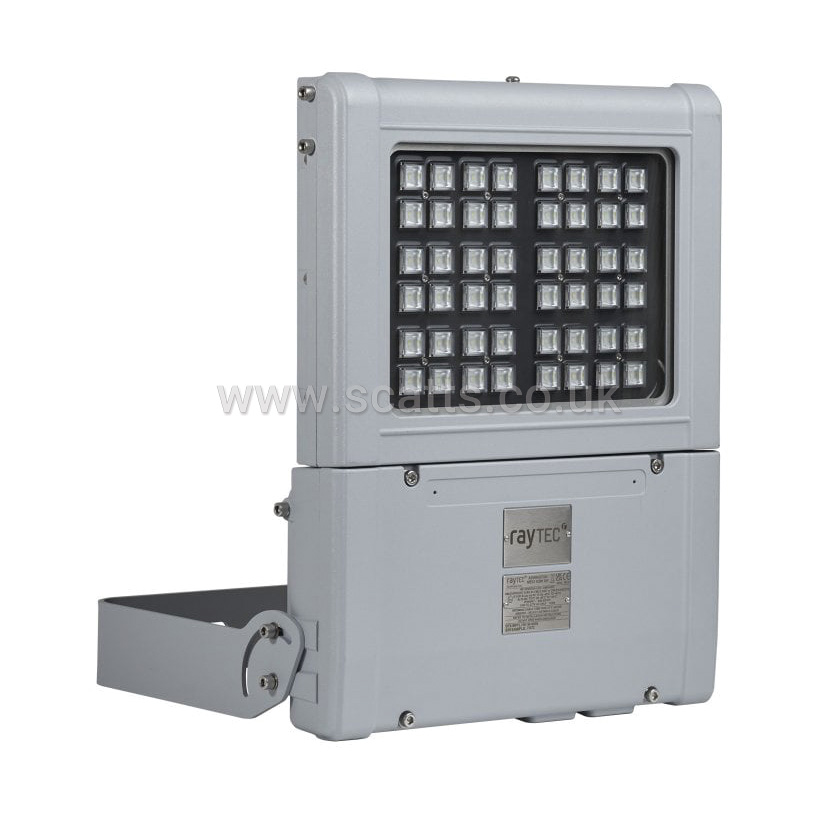

SPARTAN FLOOD
MPFL12K5 Mid Power Floodlight Zone 1 12,500 Lumens

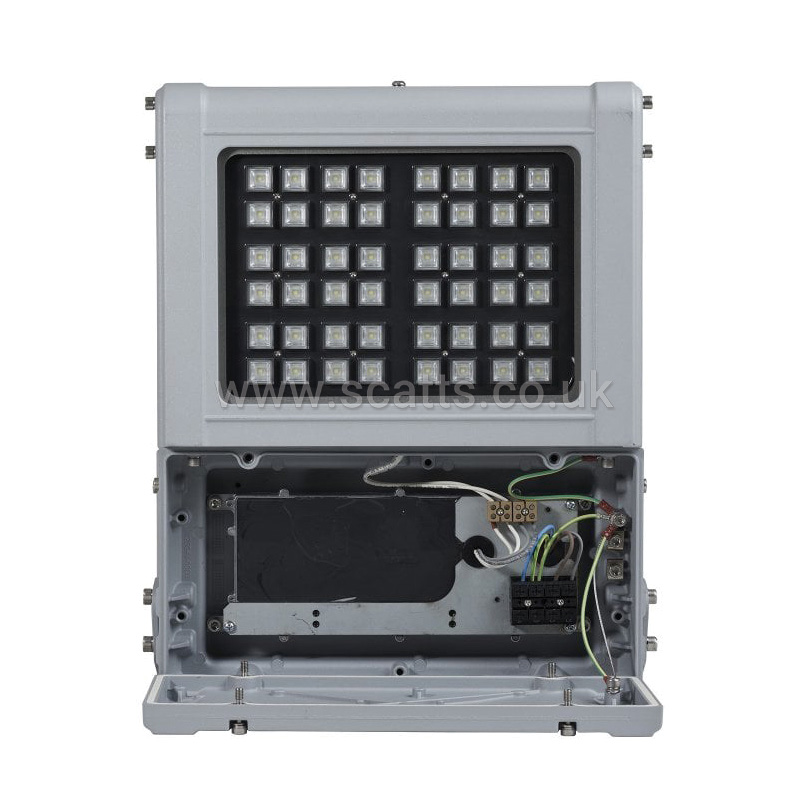

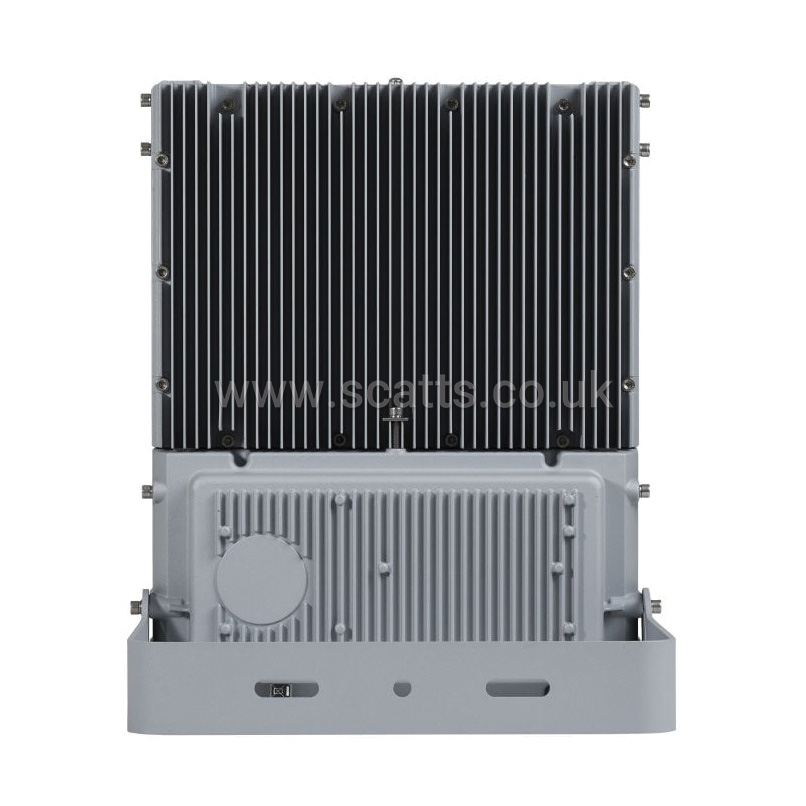

The SPARTAN Mid Power Flood range is designed for new hazardous area installations or to directly replace traditional discharge light sources. Using Rayec’s field-proven, long-life LED technology, the MPFL 12K5 is globally certified for all Zone 1 applications. SPARTAN Mid Power Flood features a unique modular design, where key components are easily accessible for straightforward maintenance and inspection. CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 11, 981 delivered lumens.
Certification: ATEX, UKCA and IEC Ex rated for Zone 1 and 2 Gas and Dust
Angles: 30°, 60° and 90° circular
Input: Mains Voltage 110-277V 50/60 Hz AC Only
Beam Angle System: Fixed
Consumption: 100W
LED Type: PLATINUM Elite SMT LEDs
Number of LEDs: 48
Power Output: Up to 11,981lm
Wavelength: White-Light (5,700K+)
IP Rating: IP66 and IP67
Temperature Range: -40° to +60°
Brand |
RAYTEC |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
£1,026.00
per 1 (ex. VAT)£1,231.20
per 1 (inc. VAT)
