SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6
SPX-WL168-T6

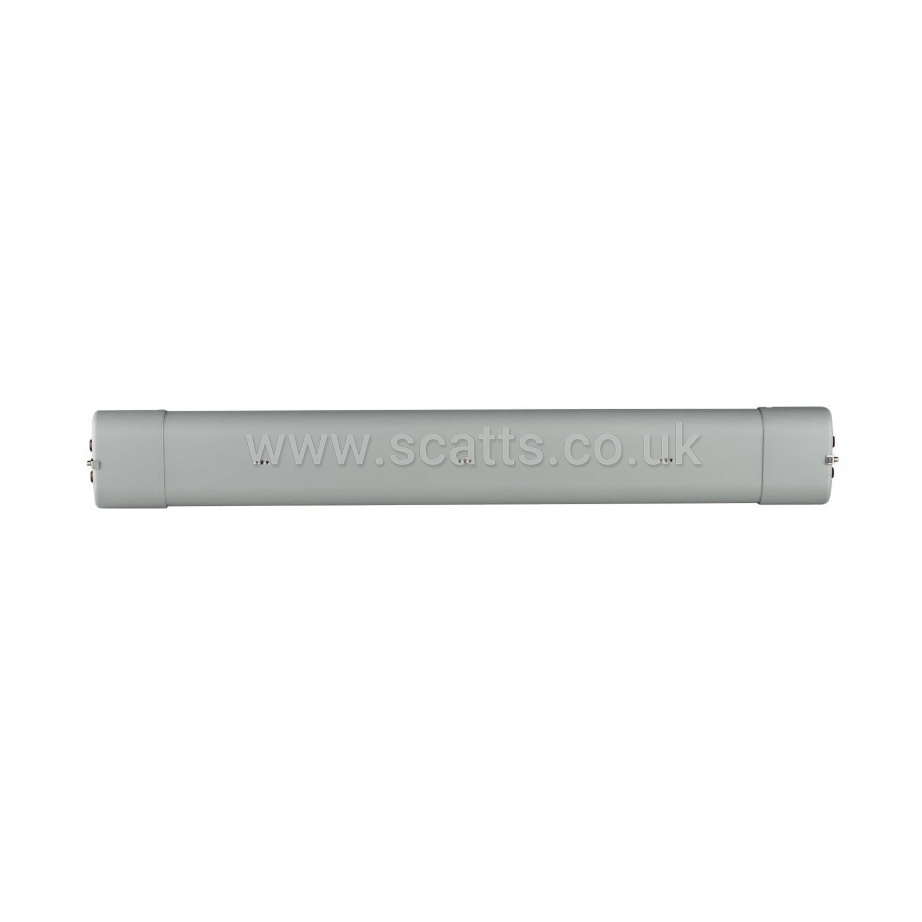

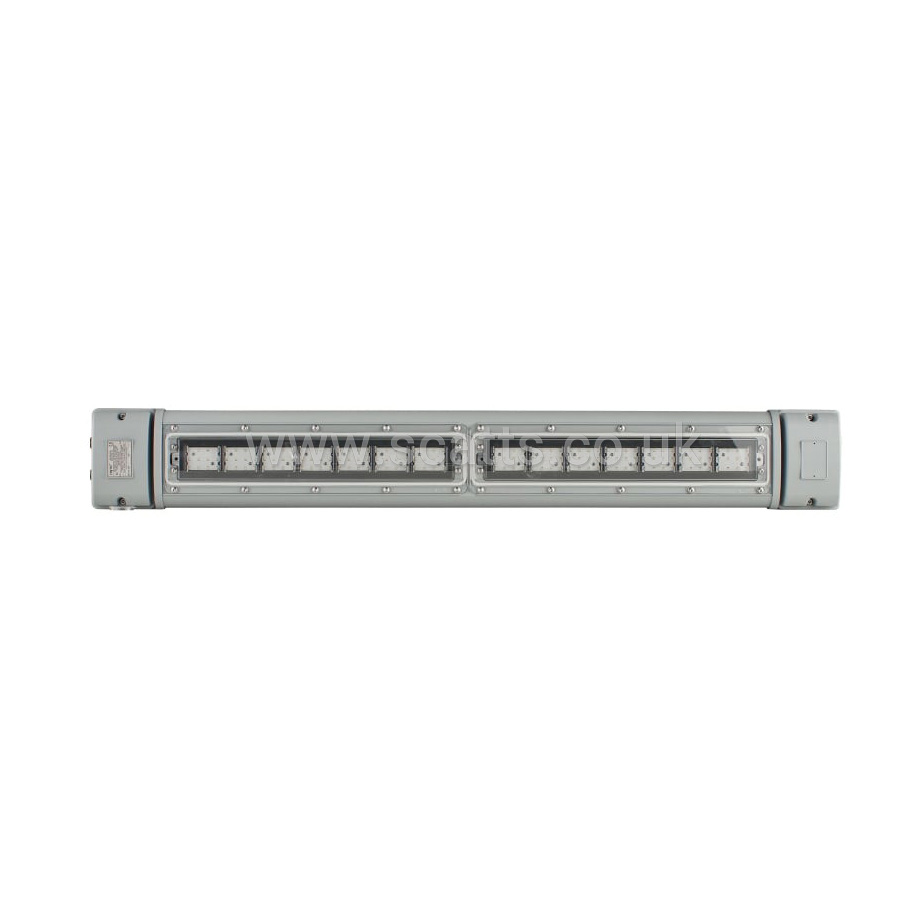

SERIES SPX, ZONES 1 & 21, EX LINEAR LIGHT WL168, 4FT LED, 6130LM, 49W, CLEAR LENS, COLOUR 6500K, CRI 80+, 110-254V AC, IP66/IP67, T6@40°C

My Part Number:

Part Number: SPX-WL168-T6

Manufacturer Code: SPX-WL168-T6/110-254VAC

Multiples of: 1 | Minimum Order: 1

View Technical Documents
ATEX
IECEX
In Stock - available to order online

• Ultra Long Life LED
• High Lumen Output LED
• Fully Retrofitable
• Easy Installation and Maintenance
• Battery Back-up
• Wide Operating Temp -40° to +55°

Brand
RAYTEC
Height
1295 mm
Width
174 mm
Depth
108 mm
Weight
9 kg
IP Rating
IP66, IP67
Body Material
Marine Grade Aluminium
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
45 °C
ATEX Approval - Dust
Ex tb IIIC T66°C Db
ATEX Approval - Gas
Ex e mb IIC T6 Gb
Hazadrous Area Certification
1, 2, 21, 22
Approvals
ATEX, IECEx
ATEX Certificate Number
CML14ATEX3119, IECEx EX CML 15.0001
Cable Entry Method
Direct
Colour Temperature
White: 6000 K+
CRI
80+
Lens Colour
Clear
Number Of Terminals
6
Power Consumption
59 W
Voltage Rating
110 V AC, 230 V AC
Colour
Light Grey
Size Reference
1200 mm, 4 Ft
Rated Frequency
50 Hz, 60 Hz
Wiring
Loop In Loop Out, Through Wired
Light Source
LED
Cable Entries
4 x M20
Nominal Output
6240 Lm
Maximum Conductor Size
4 mm²

£752.00

per 1 (ex. VAT)

£902.40

per 1 (inc. VAT)
