My Part Number:

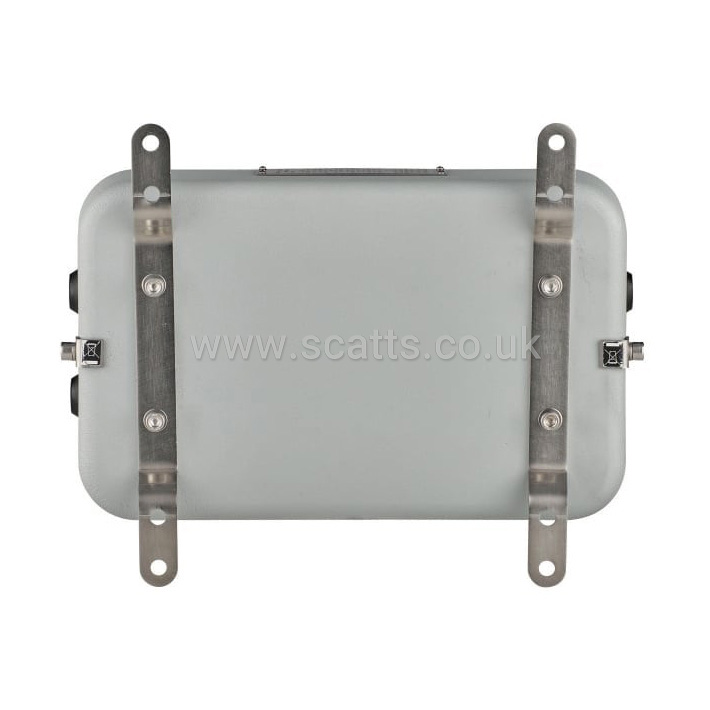

Part Number: SPZ-BL24W12050-EMX25
Manufacturer Code: SPZ-BL24-W-12050-EMX25/110-254VAC
Multiples of: 1 | Minimum Order: 1
• Intelligent Emergency variants - up to 100% light output
• Tri-colour LED indicator
• Ultra Long Life LED
• High Lumen Output LED
• Compact, Low Profile Design
• Easy Installation and Maintenance
• Battery Back-up
• Wide Operating Temp -20° to + 46°
• VARIO Lens Technology - easy modification of beam patterns
Brand |
RAYTEC |
|
Height |
288 mm |
|
Width |
182 mm |
|
Depth |
105 mm |
|
Weight |
6 kg |
|
IP Rating |
IP66, IP67 |
|
Body Material |
Marine Grade Aluminium |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
55 °C |
ATEX Approval - Dust |
Ex tc IIIC T98°C Dc |
|
ATEX Approval - Gas |
Ex ec mc T4 Gc |
|
Hazadrous Area Certification |
2, 22 |
|
Approvals |
ATEX, IECEx |
ATEX Certificate Number |
CML17ATEX4231, IECEx CML17.0135 |
|
Cable Entry Method |
Direct |
|
Colour Temperature |
White: 6000 K+ |
|
CRI |
80+ |
|
Emergency Output |
3 Hours @ 25% |
|
Lens Colour |
Clear Glass |
|
Number Of Terminals |
6 |
|
Power Consumption |
37 W |
|
Voltage Rating |
110 V AC, 230 V AC |
|
Colour |
Dark Grey |
|
Size Reference |
1200 mm, 4 Ft |
|
Rated Frequency |
50 Hz, 60 Hz |
|
Wiring |
Loop In Loop Out, Through Wired |
|
Light Source |
LED |
|
Cable Entries |
4 x M20 |
|
Nominal Output |
2500 Lm |
|
Maximum Conductor Size |
4 mm² |
|
Additional Features |
Emergency Mode: Maintained or Non-Maintained |
|
£589.00
per 1 (ex. VAT)£706.80
per 1 (inc. VAT)
