My Part Number:
Part Number: S312A-4-L-4R
Multiples of: 1 | Minimum Order: 1
4-Digits display with analog input and 4 relay outputs

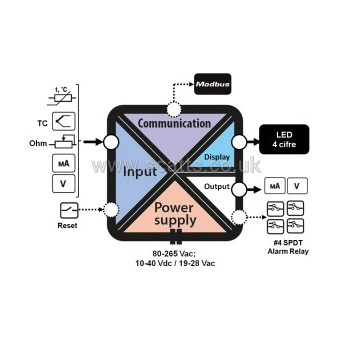

S312A is a Modbus digital indicator with universal input in voltage, current, thermocouples,, thermoresistors (2, 3 or 4 wires measurements), potentiometer. The instrument allows programmable retransmission of the measured instantaneous value by the isolated analog output (voltage or active/passive current). S312A is provided of programmable filter at 20 levels to stabilise reading. Four alarms are activable on the instantaneous input value (alarm type: maximum, minimum, automatically resettable or not). Alarms status is visible through four leds on the frontal panel.
Brand |
SENECA |
|
£243.64
per 1 (ex. VAT)£292.37
per 1 (inc. VAT)
4-Digits display with analog input and 4 relay outputs
S312A is a Modbus digital indicator with universal input in voltage, current, thermocouples,, thermoresistors (2, 3 or 4 wires measurements), potentiometer. The instrument allows programmable retransmission of the measured instantaneous value by the isolated analog output (voltage or active/passive current). S312A is provided of programmable filter at 20 levels to stabilise reading. Four alarms are activable on the instantaneous input value (alarm type: maximum, minimum, automatically resettable or not). Alarms status is visible through four leds on the frontal panel.
Brand |
SENECA |
|
