My Part Number:

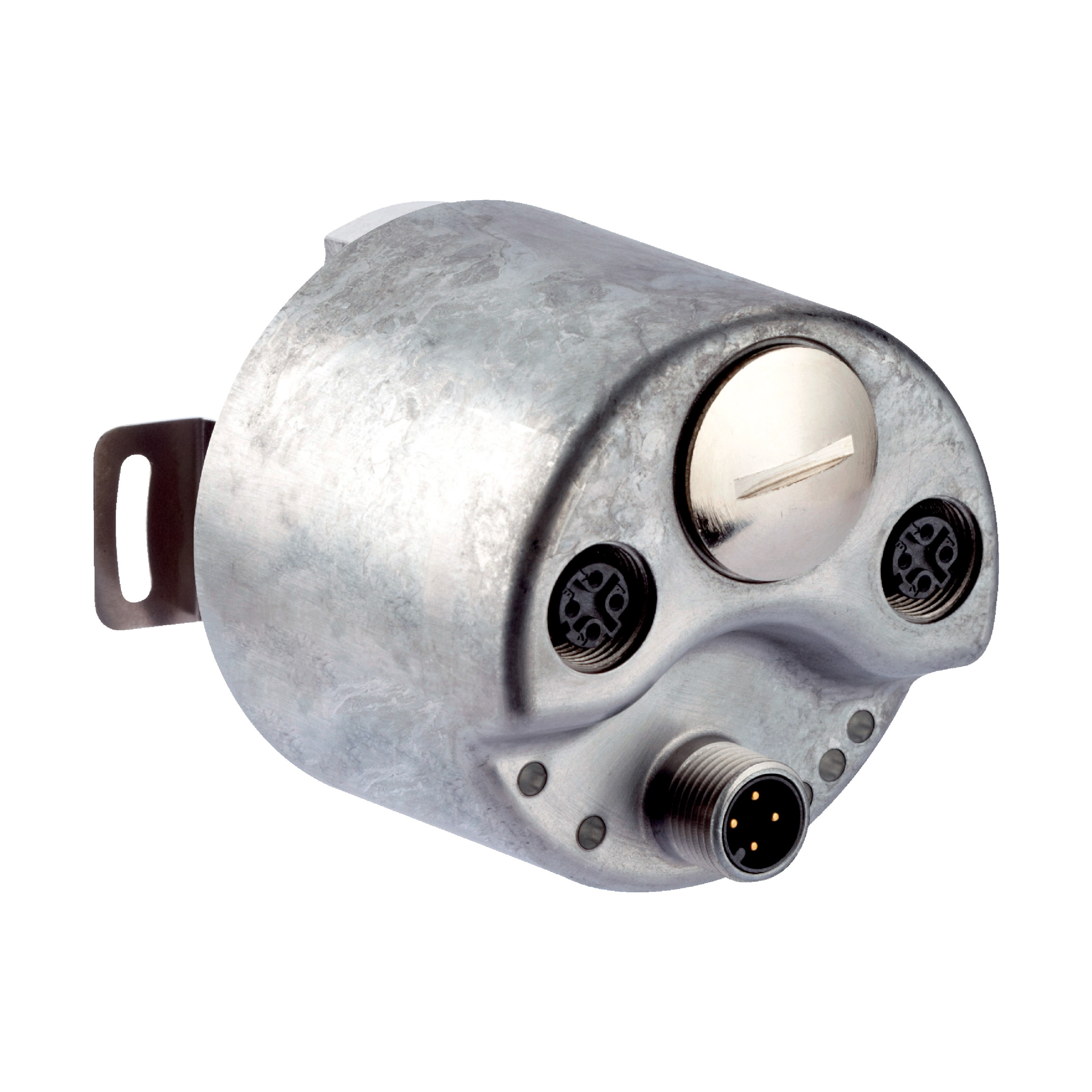

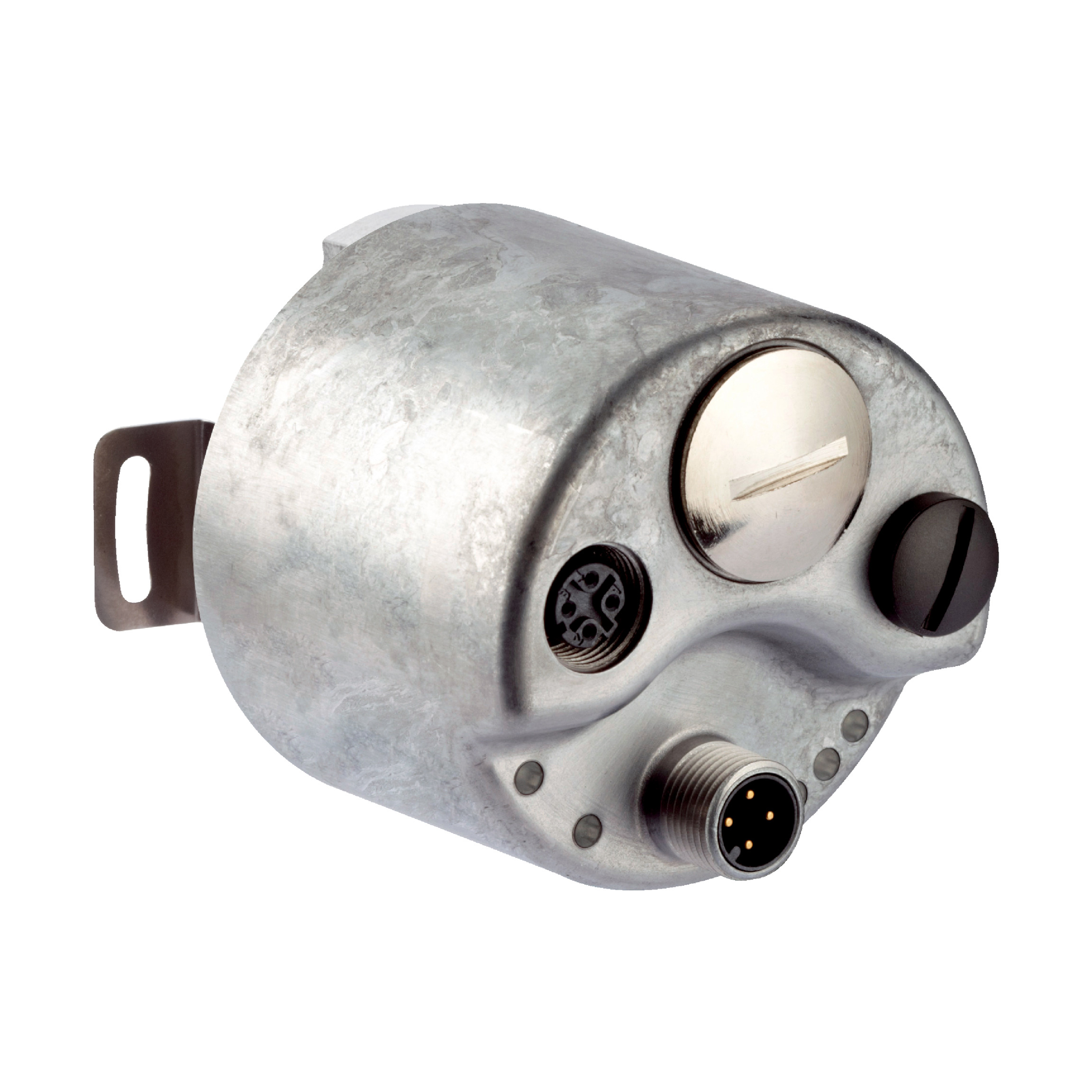

Part Number: AFS60A-BDNB262144
Manufacturer Code: 1059047
Multiples of: 1 | Minimum Order: 1
Performance
Number of steps per revolution (max. resolution): 262,144 (18 bit)
Error limits G: 0.03° 1)
Repeatability standard deviation σr: 0.002° 2)
1) In accordance with DIN ISO 1319-1, position of the upper and lower error limit depends on the installation situation, specified value refers to a symmetrical position, i.e. deviation in upper and lower direction is the same.
2) In accordance with DIN ISO 55350-13; 68.3% of the measured values are inside the specified area.
Interfaces
Communication interface: PROFINET
Encoder profile: V4.1 class3
Data transmission rate (baud rate): 10 Mbit/s, 100 Mbit/s
Transmission medium: CAT-5e cable
Initialization time: 6 s
Cycle time: ≤ 1 ms
Parameterising data: Number of steps per revolution, PRESET, Counting direction, Sampling rate for speed calculation, Unit for output of the speed value
Available diagnostics data: Minimum and maximum temperature, Maximumspeed, Power-on counter, Operatinghours counter power-on/motion, Counter of direction changes/number of movements cw/number of movements ccw, Maximum supply voltage
Brand |
SICK |
|
£738.83
per 1 (ex. VAT)£886.60
per 1 (inc. VAT)
