My Part Number:

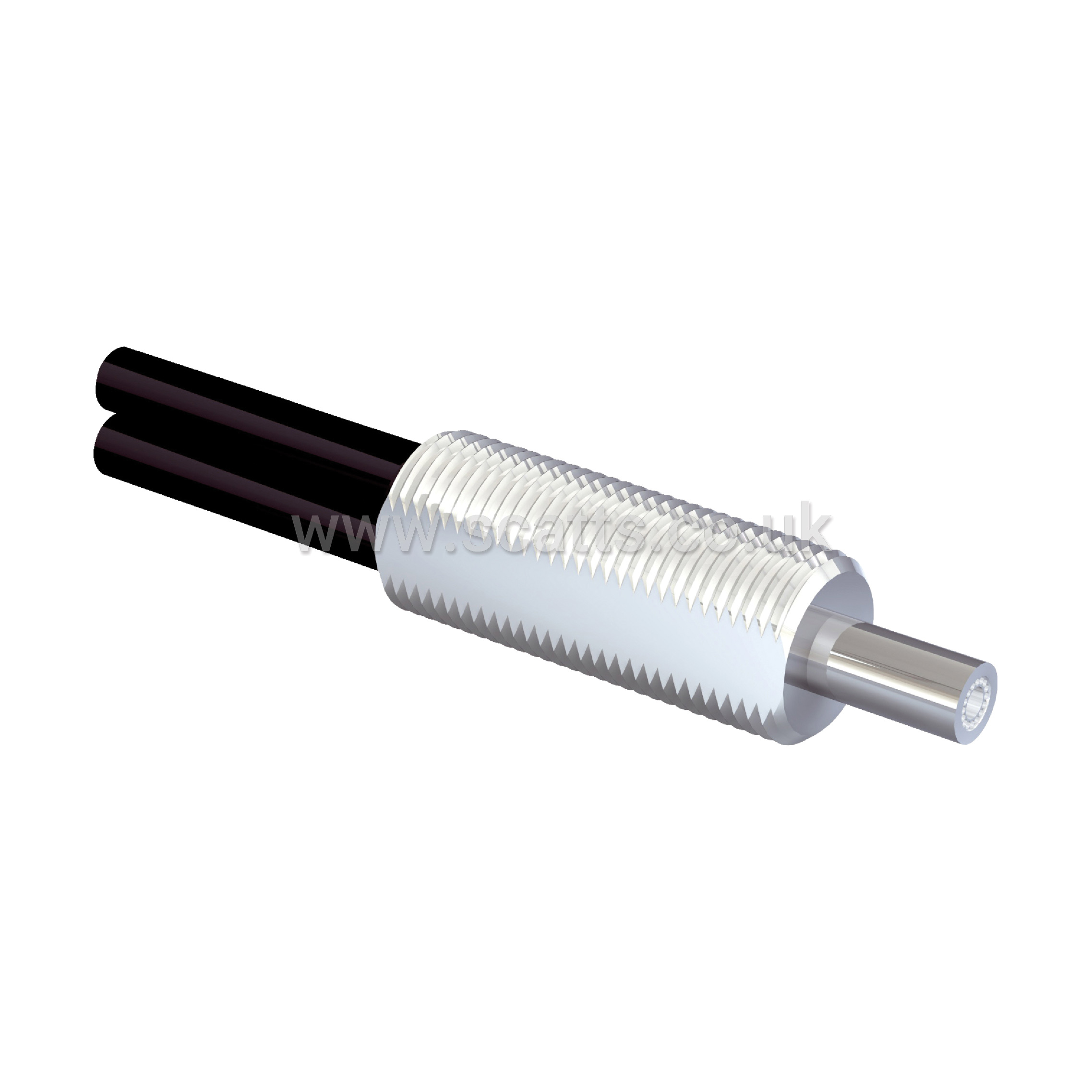

Part Number: LL3-DB01
Manufacturer Code: 5308074
Multiples of: 1 | Minimum Order: 1
Fibers - LL3
Device type: Fibers
Functional principle: Proximity system
For fiber-optic sensor: GLL170(T), WLL180T, WLL24 Ex, KTL180, WLL80
Fiber length: 2,000 mm
Fiber material: Polymethylmethacrylat (PMMA)
Jacket material: Polyethylen (PE)
Fiber head material: Stainless steel
Outer diameter, fiber-optic cable connection: 2.2 mm
Fiber-optic cable cuttable: ✔
Thread diameter (housing): M6
Fiber-optic head design: Threaded sleeve
Fiber arrangement: Coaxial arrangement
Core structure: S: Ø 1 mm, R: 16 x Ø 0,25 mm 2) Coaxial arrangement
Angle of dispersion < 60°: No
Compatibility with infrared light (1,450 nm): No
Diameter/thread size from 2 mm taper: ≥ 2.8 mm
Length of taper: ≥ 5 mm
Highly flexible/elastic fibers (bend radius 1–4 mm): No
Adapter end sleeves required: No
Angle of dispersion: 60°
Integrated lens: No
Minimal object diameter: 0.015 mm
Compatibility tip adapters: No
Special features: Coaxial construction for exact switching. Standard, large sensing range
Brand |
SICK |
|
Electrical Connection |
2 m Pre-Cabled |
|
IP Rating |
IP67 |
|
Body Material |
Stainless Steel |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
70 °C |
Approvals |
CE, UL - Canada & US |
Supply Voltage |
12 V DC, 24 V DC , 30 V DC |
|
Output Type |
NPN, PNP |
|
Switch Function |
Dark On, Light On |
|
£52.50
per 1 (ex. VAT)£63.00
per 1 (inc. VAT)
