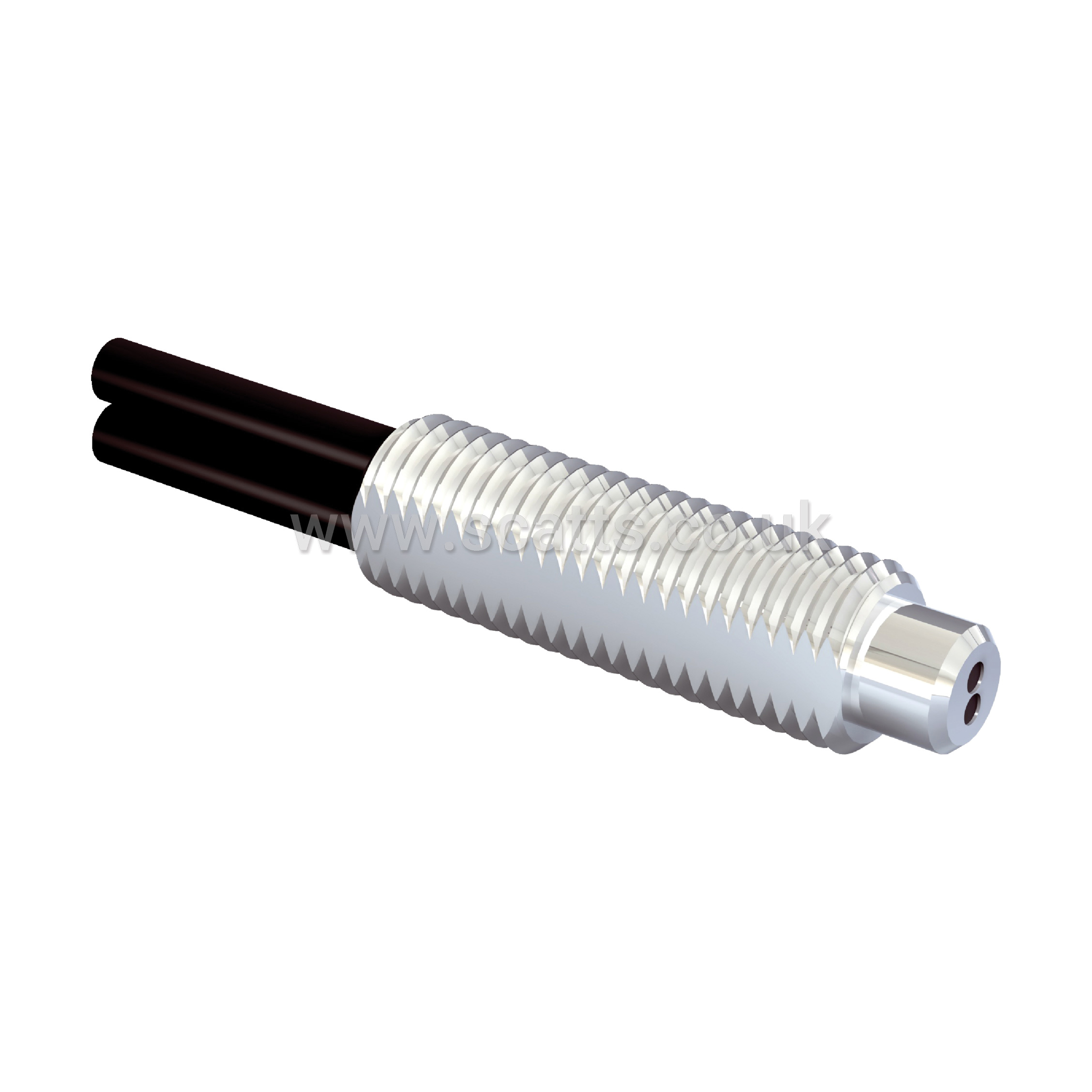

DIFFUSE FIBRE M6 2M

Device type: Fibers
Functional principle: Proximity system
For fiber-optic sensor: GLL170(T), WLL180, WLL24 Ex, WLL80
Fiber length: 2,000 mm
Fiber material: Polymethylmethacrylat (PMMA)
Jacket material: Polyethylen (PE)
Fiber head material: Stainless steel
Outer diameter, fiber-optic cable connection: 2.2 mm
Fiber-optic cable cuttable: ✔
Thread diameter (housing): M6
Fiber-optic head design: Threaded sleeve
Fiber arrangement : Monofiber
Core structure: 2 x Ø 1,0 mm Monofiber
Angle of dispersion < 60°: No
Compatibility with infrared light (1,450 nm): No
Diameter/thread size from 2 mm taper: ≥ 4 mm
Length of taper: ≥ 3 mm
Highly flexible/elastic fibers (bend radius 1–4 mm): No
Adapter end sleeves required: No
Angle of dispersion: 60°
Integrated lens: No
Minimal object diameter: 0.015 mm
Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters: No
Special features: Standard, compact end sleeve, maximum sensing range
