My Part Number:

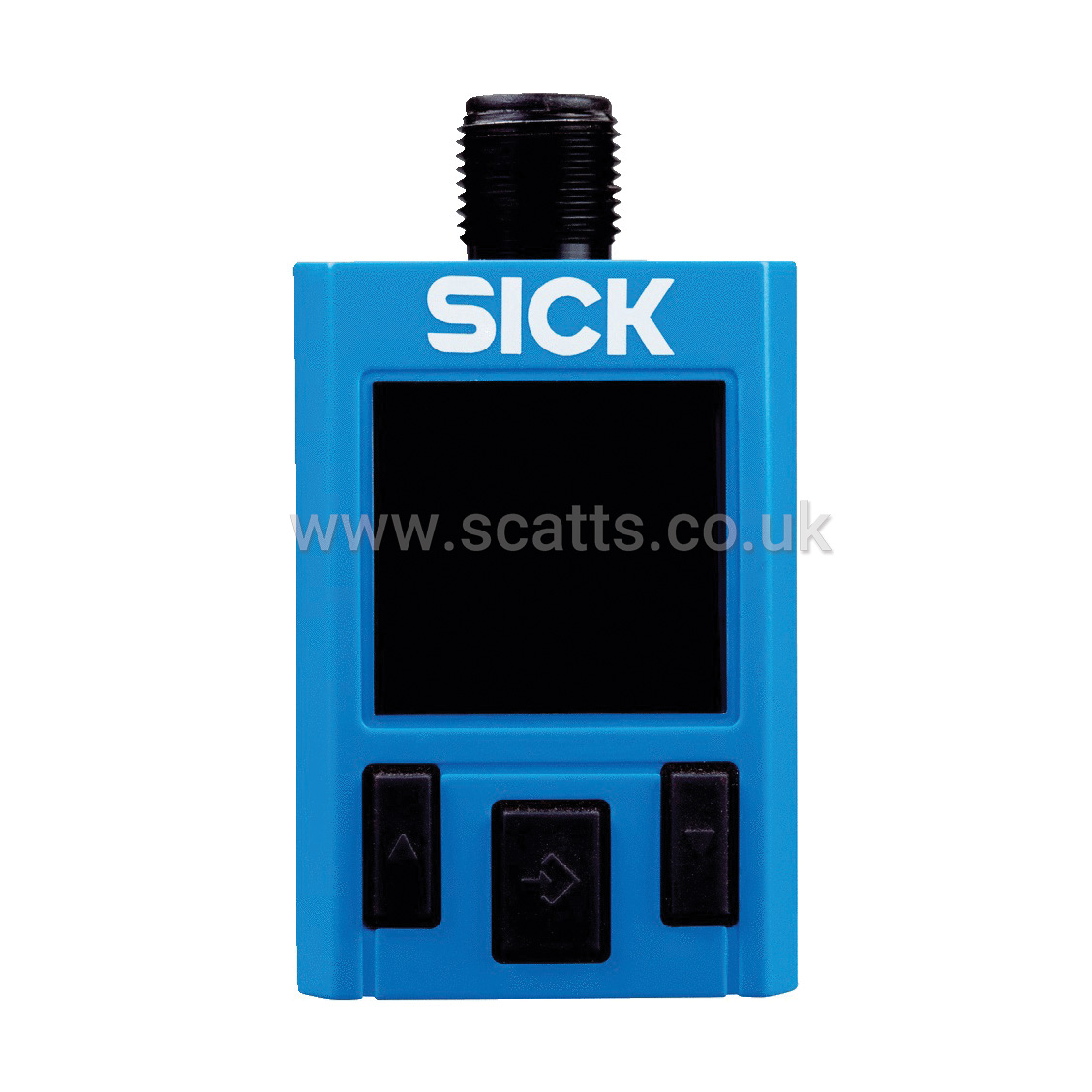

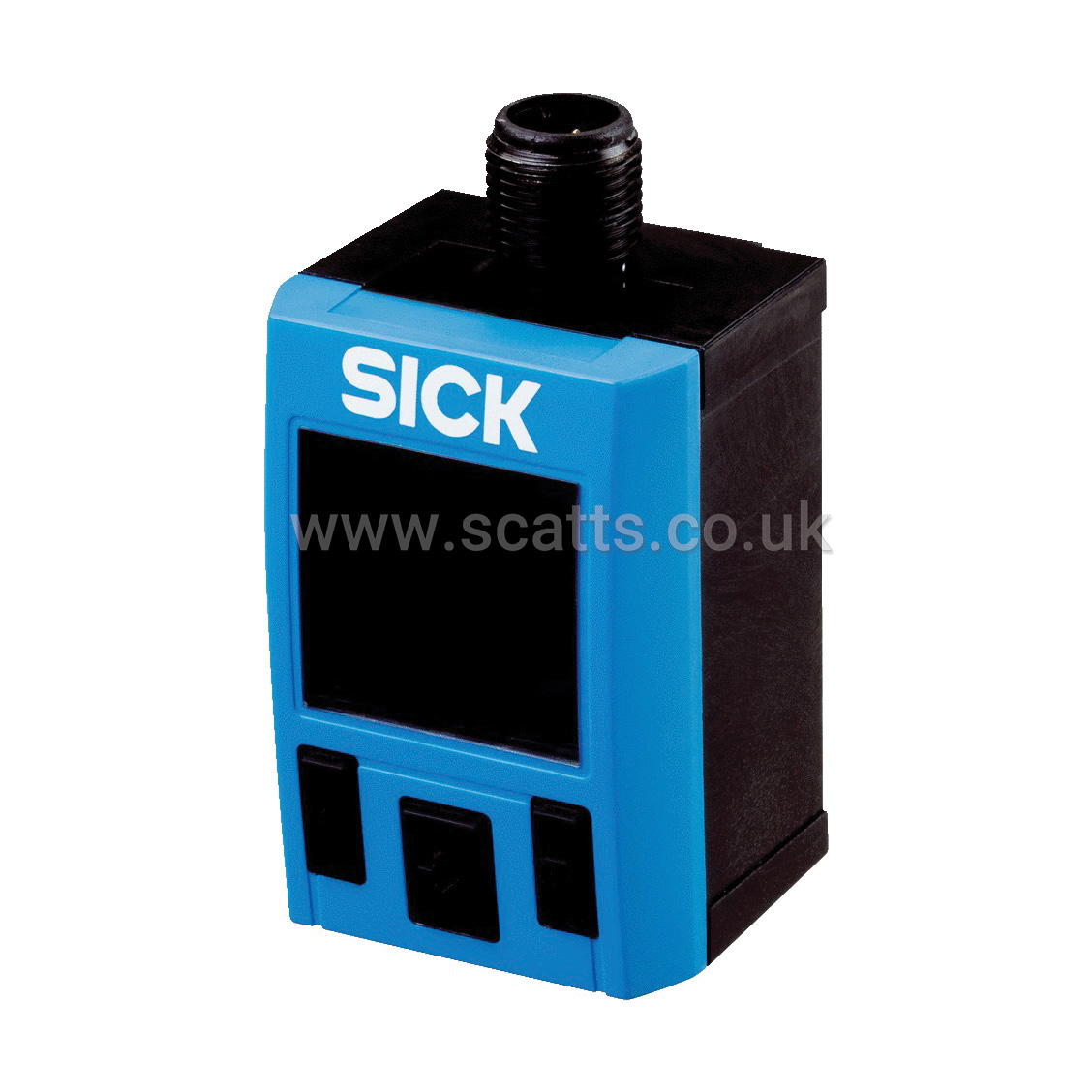

Part Number: PAC50-BCC
Manufacturer Code: 1062966
Multiples of: 1 | Minimum Order: 1
Pressure sensors PAC50
Medium: Dry compressed air
Pressure type: Gauge pressure
Pressure unit: bar
Measuring range: –1 bar ... 1 bar
Overpressure safety: 5 bar
Process temperature: 0 °C ... +60 °C
Analog signal output and ohmic load RA: Optional, 4 mA ... 20 mA / 0 V… 10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20 mA ... 4 mA / 10 V ... 0 V, Load resistance for current output < 600 Ohm, Load resistance with current output > 3 kOhm
Zero point adjustment: Max. + 5 % of span
Output signal: 2 x PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V
Diagnostics output: Switching output 2 can be set as diagnostics output
Display: LCD with LED backlight (green/red), can be rotated electronically by 180°, Pressure display: 4 digits, 16 segments, Pressure unit in display can be switched: bar, MPa, kPa, psi and inHg, Update: 1,000, 500, 200, 100 ms (adjustable)
Initialization time: 300 ms
Brand |
SICK |
|
£152.31
per 1 (ex. VAT)£182.77
per 1 (inc. VAT)
Pressure sensors PAC50
Medium: Dry compressed air
Pressure type: Gauge pressure
Pressure unit: bar
Measuring range: –1 bar ... 1 bar
Overpressure safety: 5 bar
Process temperature: 0 °C ... +60 °C
Analog signal output and ohmic load RA: Optional, 4 mA ... 20 mA / 0 V… 10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20 mA ... 4 mA / 10 V ... 0 V, Load resistance for current output < 600 Ohm, Load resistance with current output > 3 kOhm
Zero point adjustment: Max. + 5 % of span
Output signal: 2 x PNP/NPN/Push-Pull + 4 mA ... 20 mA / 0 V ... 10 V
Diagnostics output: Switching output 2 can be set as diagnostics output
Display: LCD with LED backlight (green/red), can be rotated electronically by 180°, Pressure display: 4 digits, 16 segments, Pressure unit in display can be switched: bar, MPa, kPa, psi and inHg, Update: 1,000, 500, 200, 100 ms (adjustable)
Initialization time: 300 ms
Brand |
SICK |
|
