My Part Number:
Part Number: PBS-M/6038885
Manufacturer Code: PBS-RB1X0SG1SSNBMA0Z
Multiples of: 1 | Minimum Order: 1

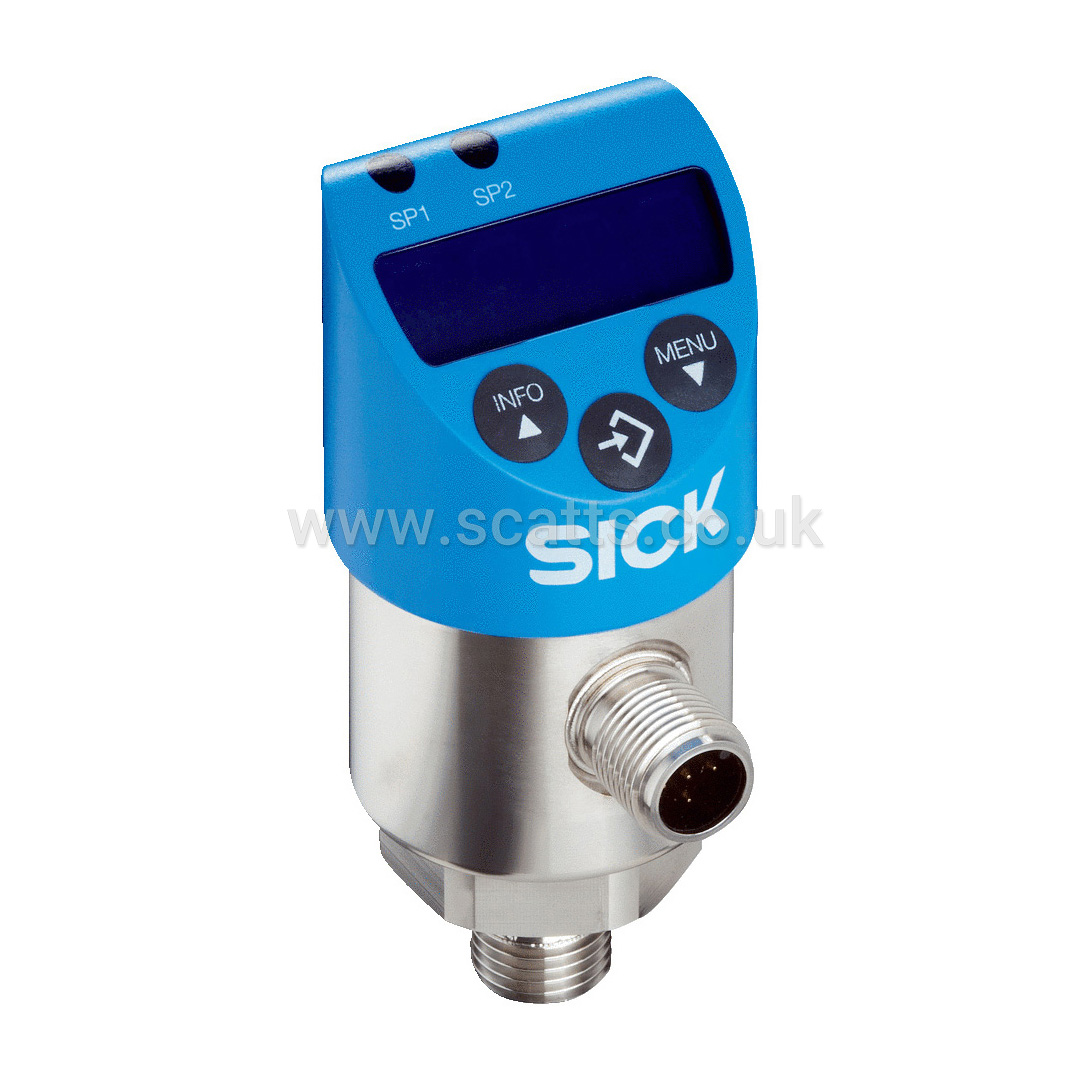

Pressure sensors PBS
Medium: Liquid, gaseous
Pressure type: Gauge pressure
Pressure unit: bar
Measuring range: 0 bar ... 1 bar
Process temperature: –20 °C ... +85 °C
Zero point adjustment: Max. + 3 % of span
Output signal: 1 x PNP + 4 mA ... 20 mA
Rotatable housing: Display against housing with electrical connection: 330 °, Housing against process connection: 320 °
Display: 14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180°, Accuracy: ≤ 1 % of span ± 1 digit, Update: 1,000, 500, 200, 100 ms (adjustable)
Brand |
SICK |
|
Display Type |
LED |
|
Electrical Connection |
M12 x 1 |
|
Height |
95 mm |
|
Weight |
200 g |
|
IP Rating |
IP67 |
|
Body Material |
304 Stainless Steel |
|
Approvals |
CE |
Number Of Pins |
4 |
|
Supply Voltage |
24 V DC |
|
Acceptable Media |
Gas, Liquid |
|
Wetted Parts |
316L Stainless Steel |
|
Seal Material |
NBR |
|
Process Connection |
G1/4" Male |
|
Minimum Sensing Range |
0 bar |
|
Maximum Sensing Range |
1 bar |
|
Output Signal |
1 x 4-20 mA, 1 x PNP |
|
Maximum Ambient Temperature |
80 °C |
|
Maximum Media Temperature |
85 °C |
|
Diameter |
38 mm |
|
£152.31
per 1 (ex. VAT)£182.77
per 1 (inc. VAT)
