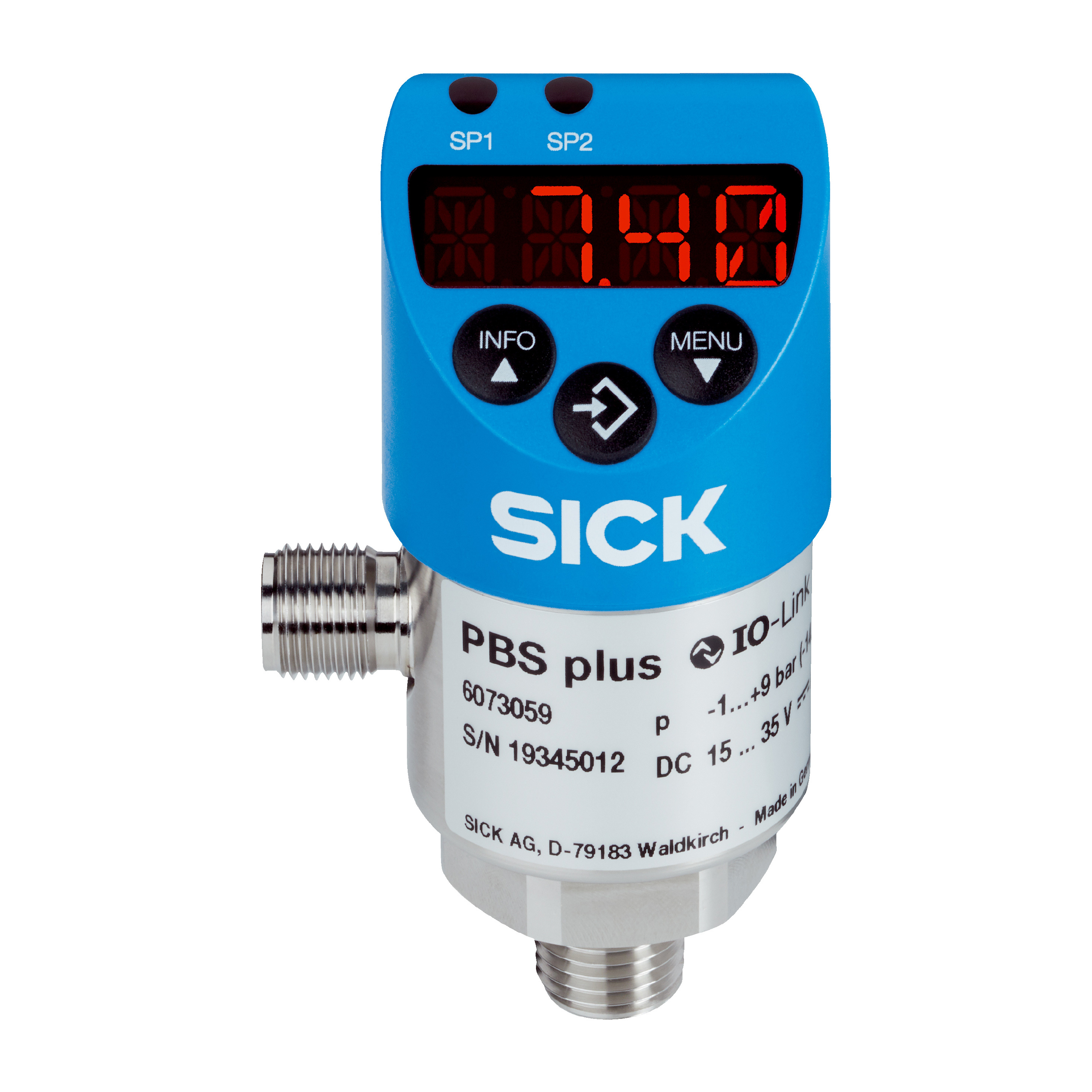

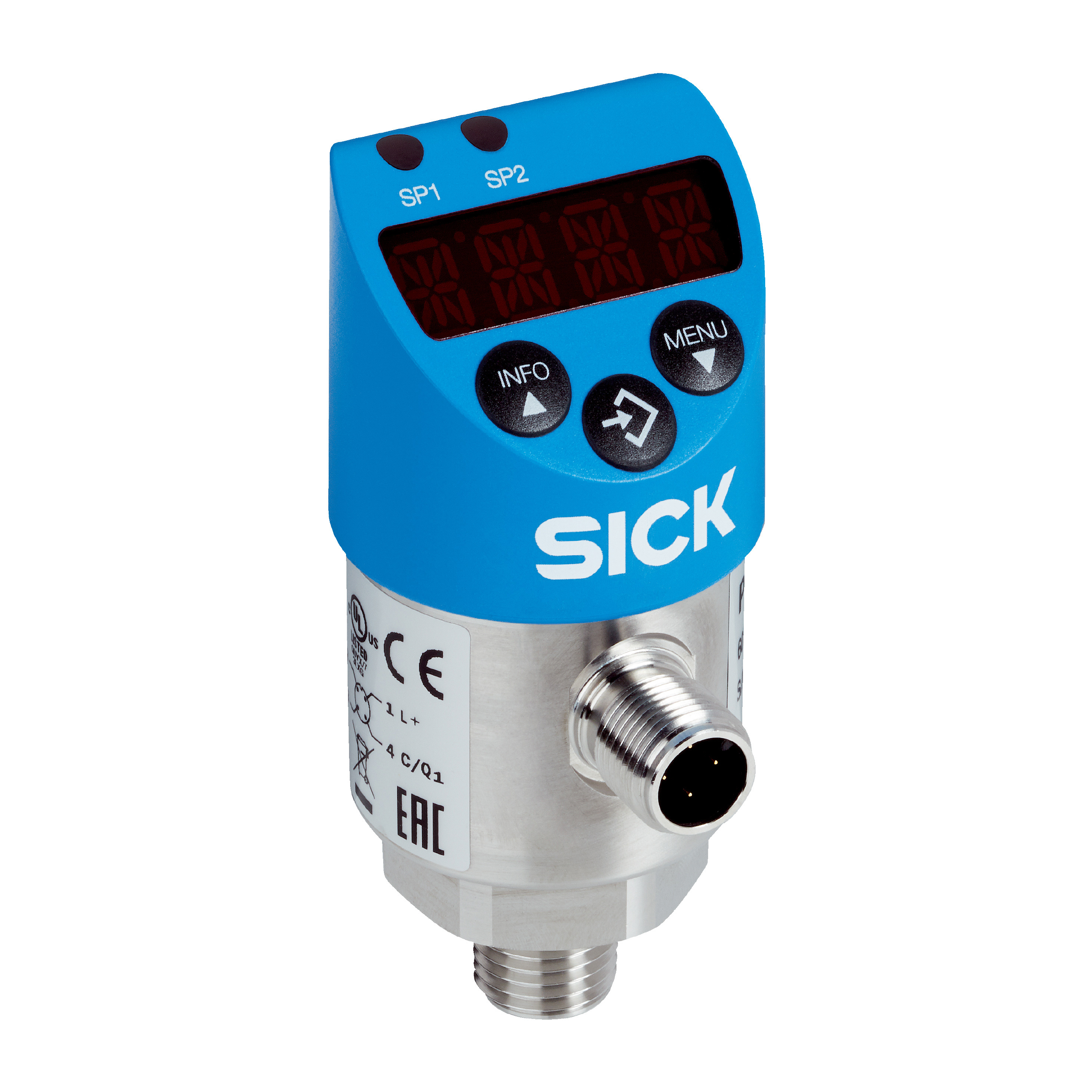

Part Number: PBS2-M/6074020
Manufacturer Code: 6074020 / PBS2-RB100SG1SSDQ5A0Z
Multiples of: 1 | Minimum Order: 1
Medium: Liquid, gaseous
Pressure type: Gauge pressure
Pressure unit: bar (psi)
Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450 psi
Process temperature: –20 °C ... +85 °C
Maximum ohmic load RA: 4 mA ... 20 mA (RA ≤ 0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)
Zero point adjustment: Max. + 3 % of span
Output signal: IO-Link/PNP/NPN + PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V
Rotatable housing: Display against housing with electrical connection: 330 °, Housing against process connection: 320 °
Display: 14-Segment LED, red, 4-digit, character height 9 mm, can be rotated electronically by 180°, Update: 1,000, 500, 200, 100 ms (adjustable)
Brand |
SICK |
|
£336.78
per 1 (ex. VAT)£404.14
per 1 (inc. VAT)
Medium: Liquid, gaseous
Pressure type: Gauge pressure
Pressure unit: bar (psi)
Measuring range: 0 bar ... 100 bar, 0 psi ... 1,450 psi
Process temperature: –20 °C ... +85 °C
Maximum ohmic load RA: 4 mA ... 20 mA (RA ≤ 0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)
Zero point adjustment: Max. + 3 % of span
Output signal: IO-Link/PNP/NPN + PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V
Rotatable housing: Display against housing with electrical connection: 330 °, Housing against process connection: 320 °
Display: 14-Segment LED, red, 4-digit, character height 9 mm, can be rotated electronically by 180°, Update: 1,000, 500, 200, 100 ms (adjustable)
Brand |
SICK |
|
