My Part Number:
Part Number: S32B-3011EA
Manufacturer Code: 1056431
Multiples of: 1 | Minimum Order: 1

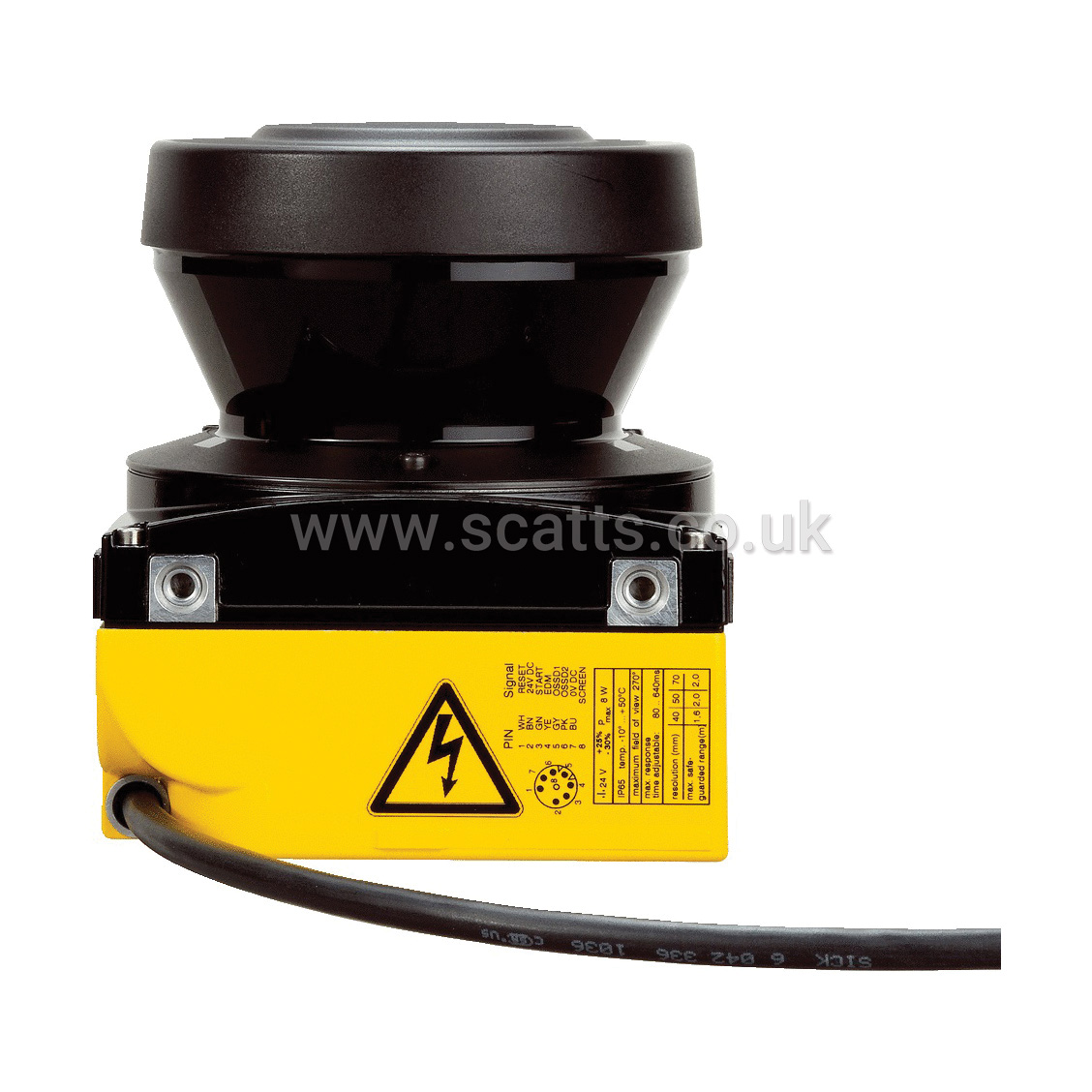

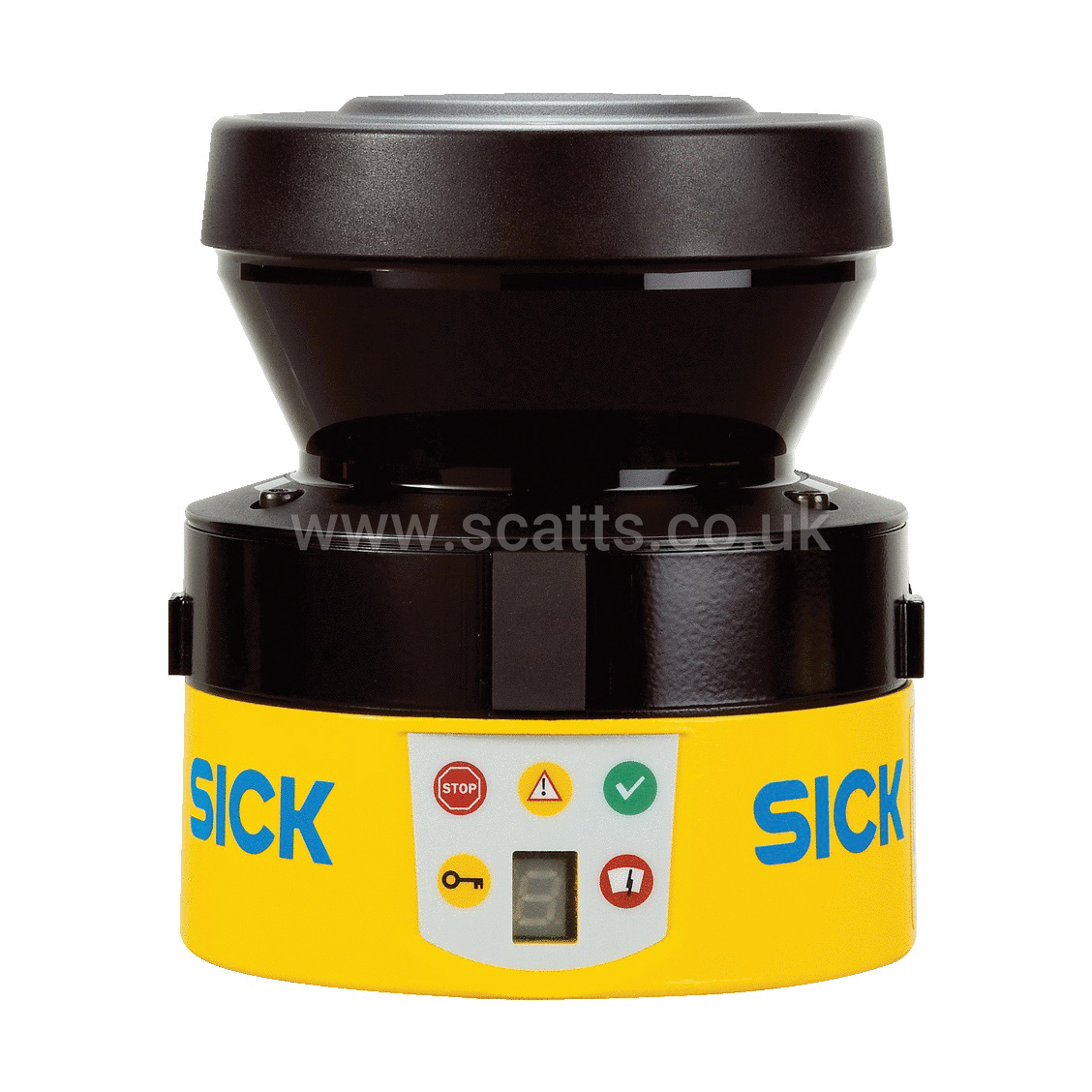

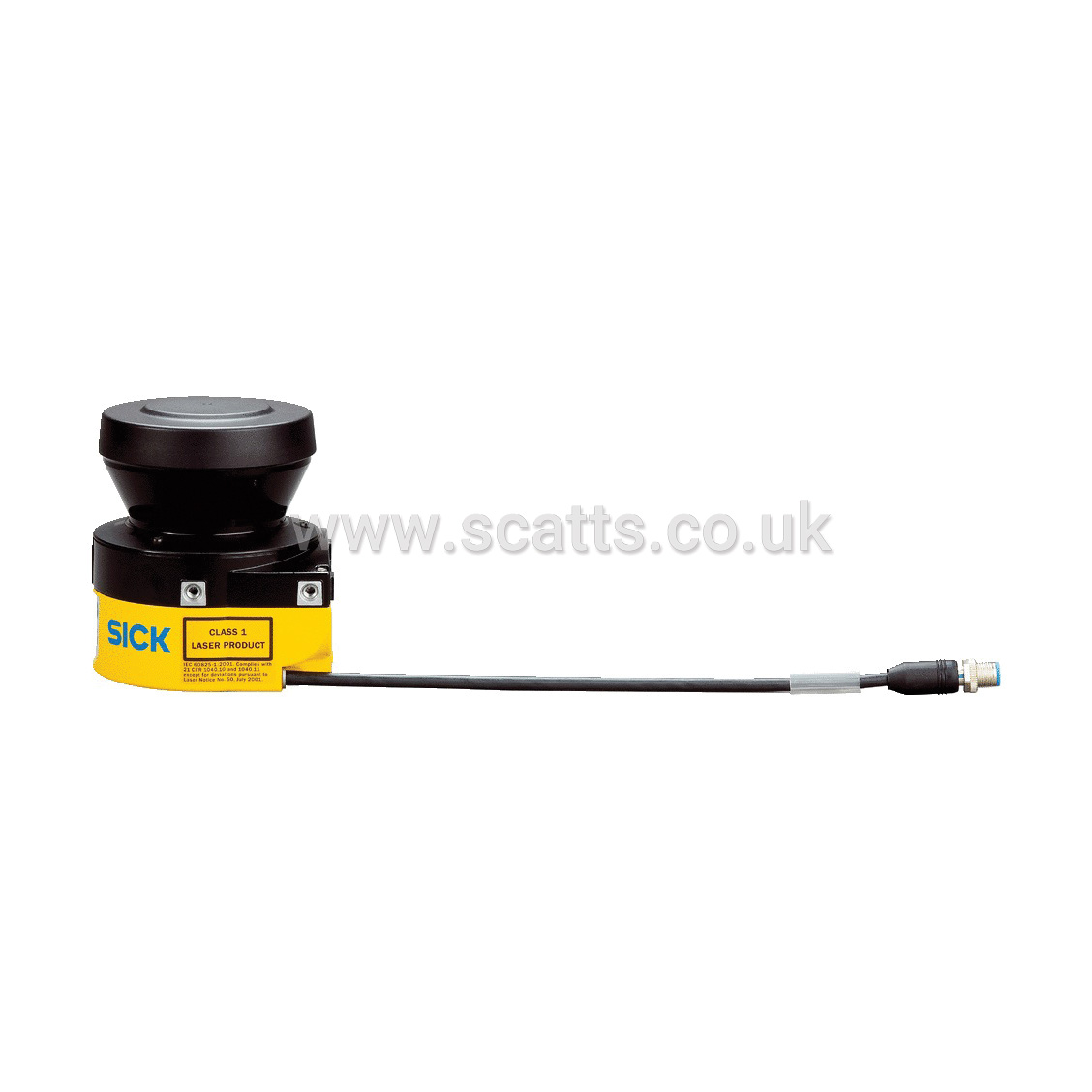

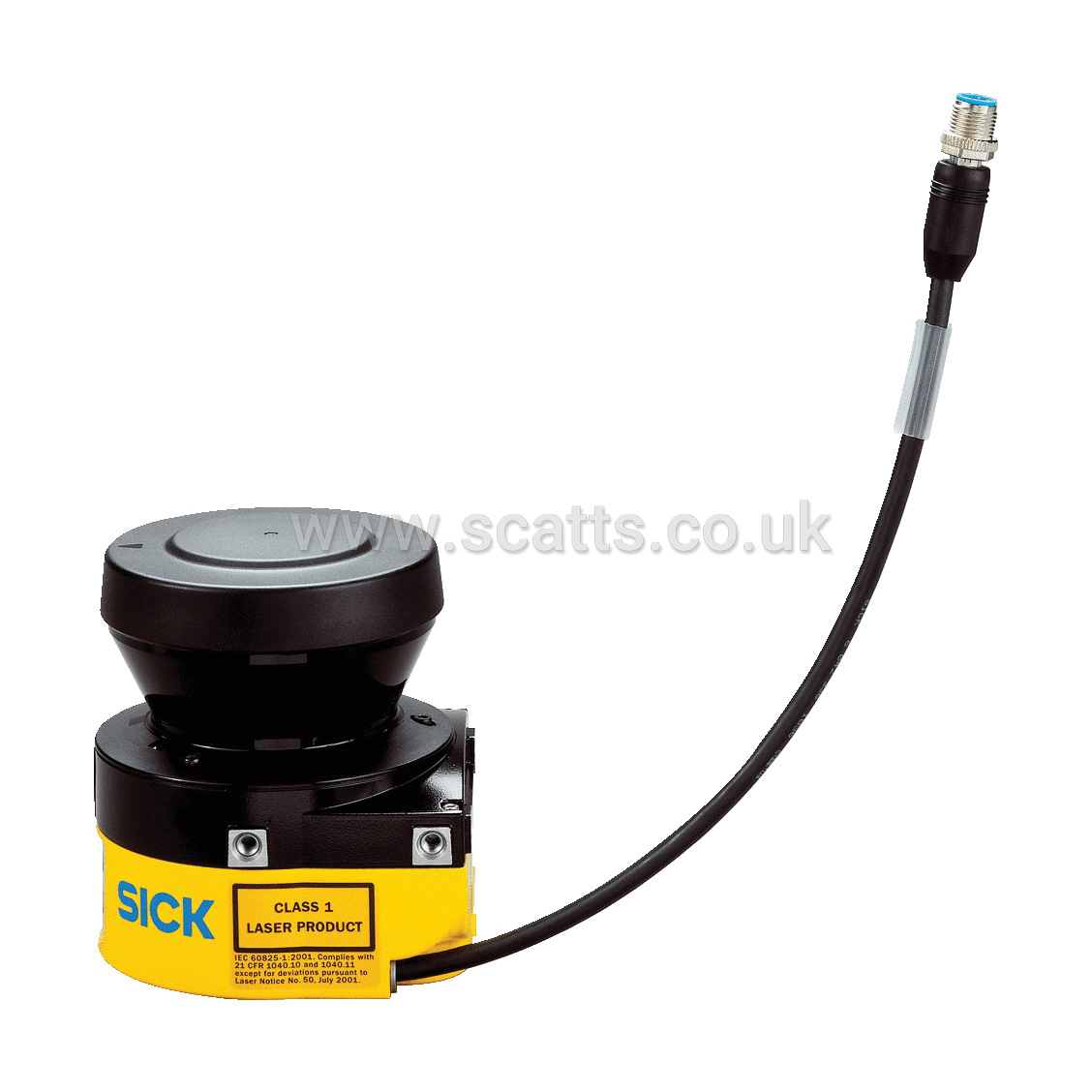

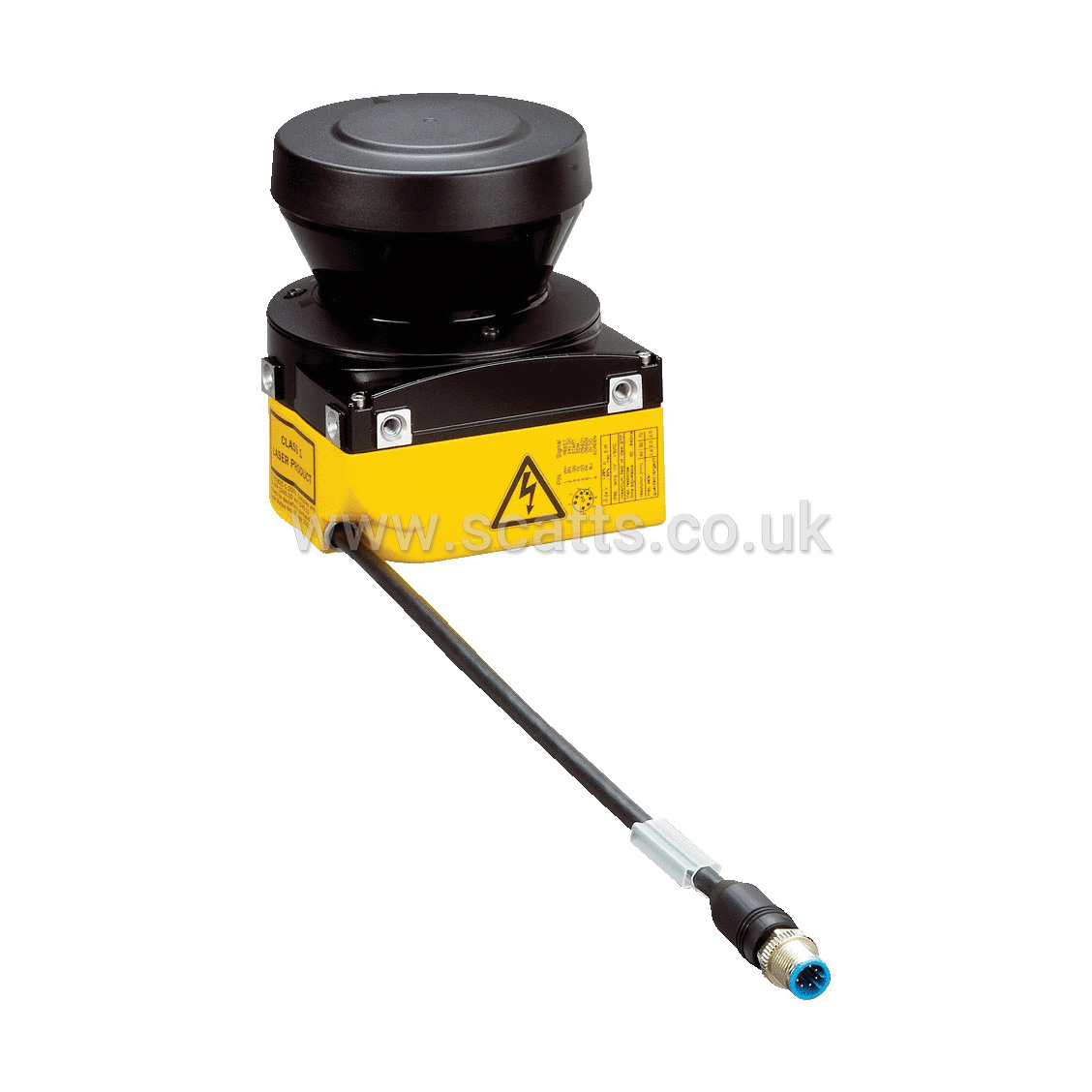

Safety laser scanners S300 Mini Remote
Usage: Can only be used in the EFI system network, e.g., with a Flexi Soft safety controller and an additional S300 or S3000 safety laser scanner
Application: Indoor
Protective field range: 3 m
Warning field range: 8 m (at 15 % reflectivity)
Distance measuring range: 30 m
Type of field set: Triple field sets
Number of field sets: 16
Number of fields: 48
Number of monitoring cases: 32
Scanning angle: 270°
Resolution (can be configured): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution: 0.5°
Response time: 80 ms
Protective field supplement: 100 mm
Number of multiple samplings: 2 ... 16, configurable
Delay of automatic reset: 2 s ... 60 s, configurable
Brand |
SICK |
|
£4,189.83
per 1 (ex. VAT)£5,027.80
per 1 (inc. VAT)
