My Part Number:

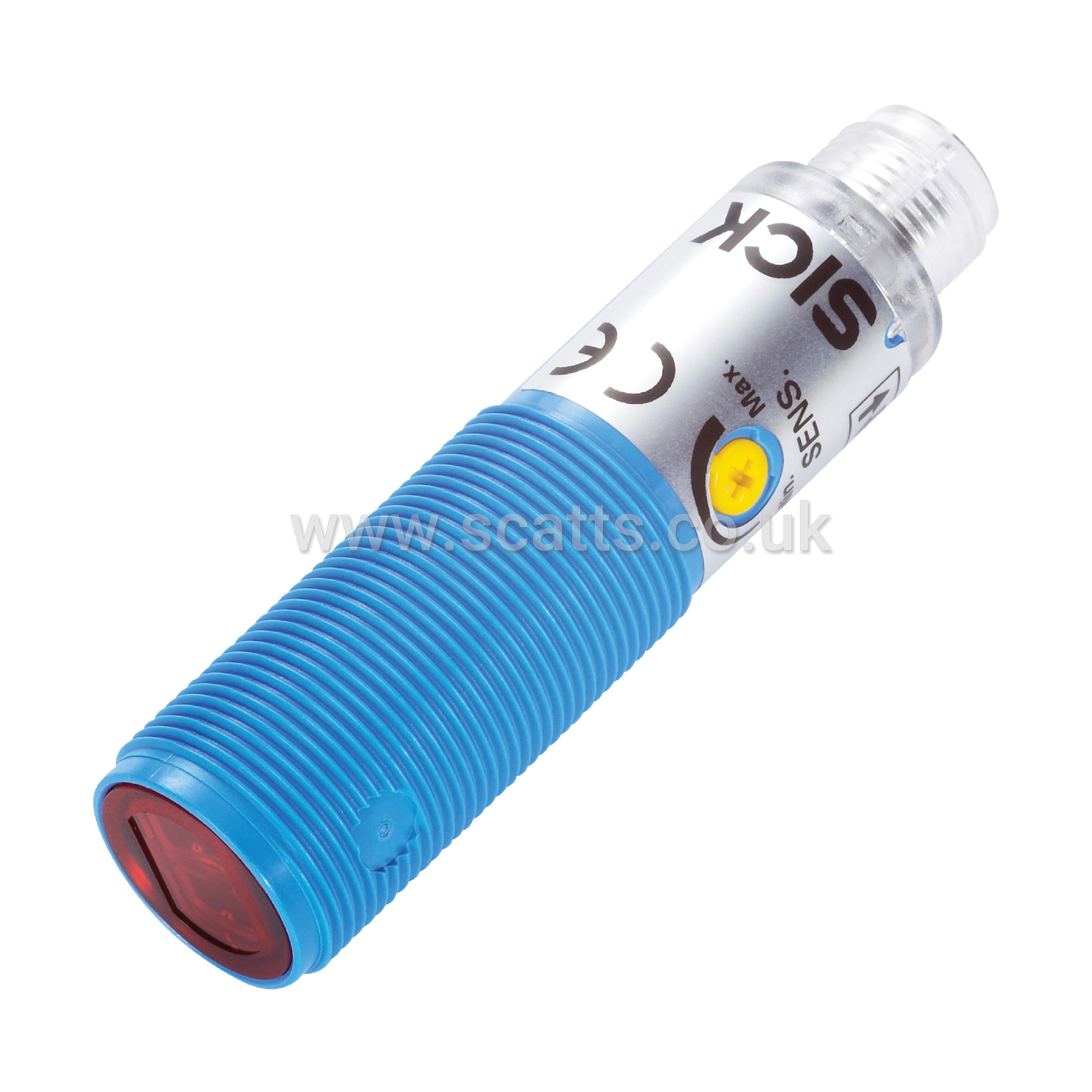

Part Number: VL180-2P42436
Manufacturer Code: 6037496
Multiples of: 1 | Minimum Order: 1
Cylindrical photoelectric sensors - V180-2
Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D): 18 mm x 18 mm x 70.2 mm
Housing design (light emission): Cylindrical
Housing length: 70.2 mm
Thread diameter (housing): M18 x 1
Optical axis: Axial
Sensing range max.: 0.05 m ... 7 m
Sensing range: 0.05 m ... 6 m
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 400 mm (6 m)
Angle of dispersion: Approx. 4.5°
Wave length: 645 nm
Adjustment: Potentiometer, 270° (Sensitivity)
Brand |
SICK |
|
Output Type |
PNP |
|
£76.63
per 1 (ex. VAT)£91.96
per 1 (inc. VAT)
