My Part Number:
Part Number: WL27-3P2451
Manufacturer Code: 1027770
Multiples of: 1 | Minimum Order: 1

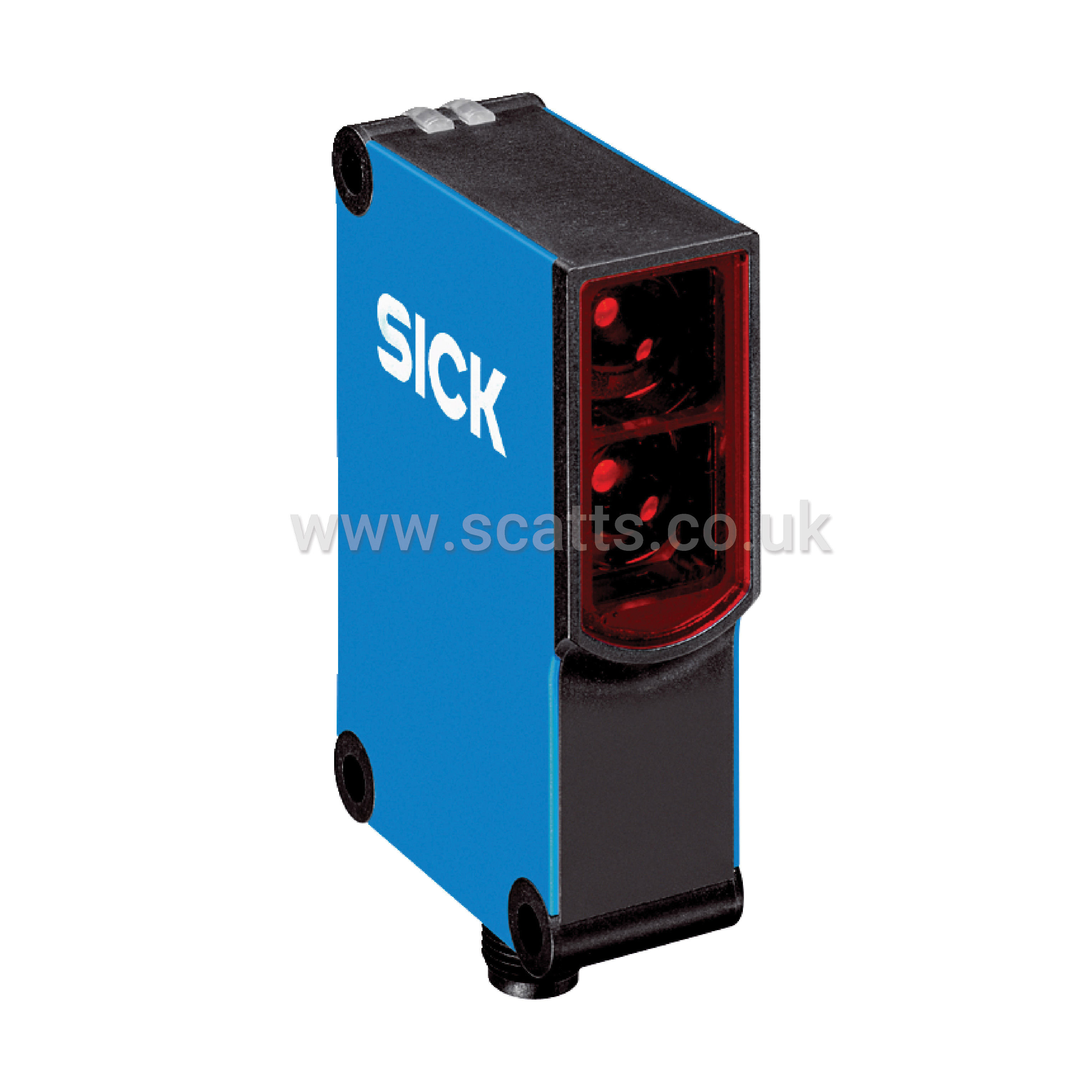

Compact photoelectric sensors - W27-3
Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission): Rectangular
Sensing range max.: 0.1 m ... 15 m
Sensing range: 0.1 m ... 11 m
Focus: Approx. 1.5°
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 220 mm (10 m)
Angle of dispersion: Approx. 1.5°
Wave length: 660 nm
Adjustment: Potentiometer
Brand |
SICK |
|
Electrical Connection |
M12 Plug-In |
|
IP Rating |
IP69K |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - US Only |
Supply Voltage |
12 V DC, 24 V DC , 30 V DC |
|
Body Type |
Block |
|
Sensing Distance |
15 m |
|
Output Type |
PNP |
|
Switch Function |
Dark On, Light On |
|
Detection Method |
Retro Reflective |
|
£213.80
per 1 (ex. VAT)£256.56
per 1 (inc. VAT)
Compact photoelectric sensors - W27-3
Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission): Rectangular
Sensing range max.: 0.1 m ... 15 m
Sensing range: 0.1 m ... 11 m
Focus: Approx. 1.5°
Type of light: Visible red light
Light source: LED
Light spot size (distance): Ø 220 mm (10 m)
Angle of dispersion: Approx. 1.5°
Wave length: 660 nm
Adjustment: Potentiometer
Brand |
SICK |
|
Electrical Connection |
M12 Plug-In |
|
IP Rating |
IP69K |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-25 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - US Only |
Supply Voltage |
12 V DC, 24 V DC , 30 V DC |
|
Body Type |
Block |
|
Sensing Distance |
15 m |
|
Output Type |
PNP |
|
Switch Function |
Dark On, Light On |
|
Detection Method |
Retro Reflective |
|
