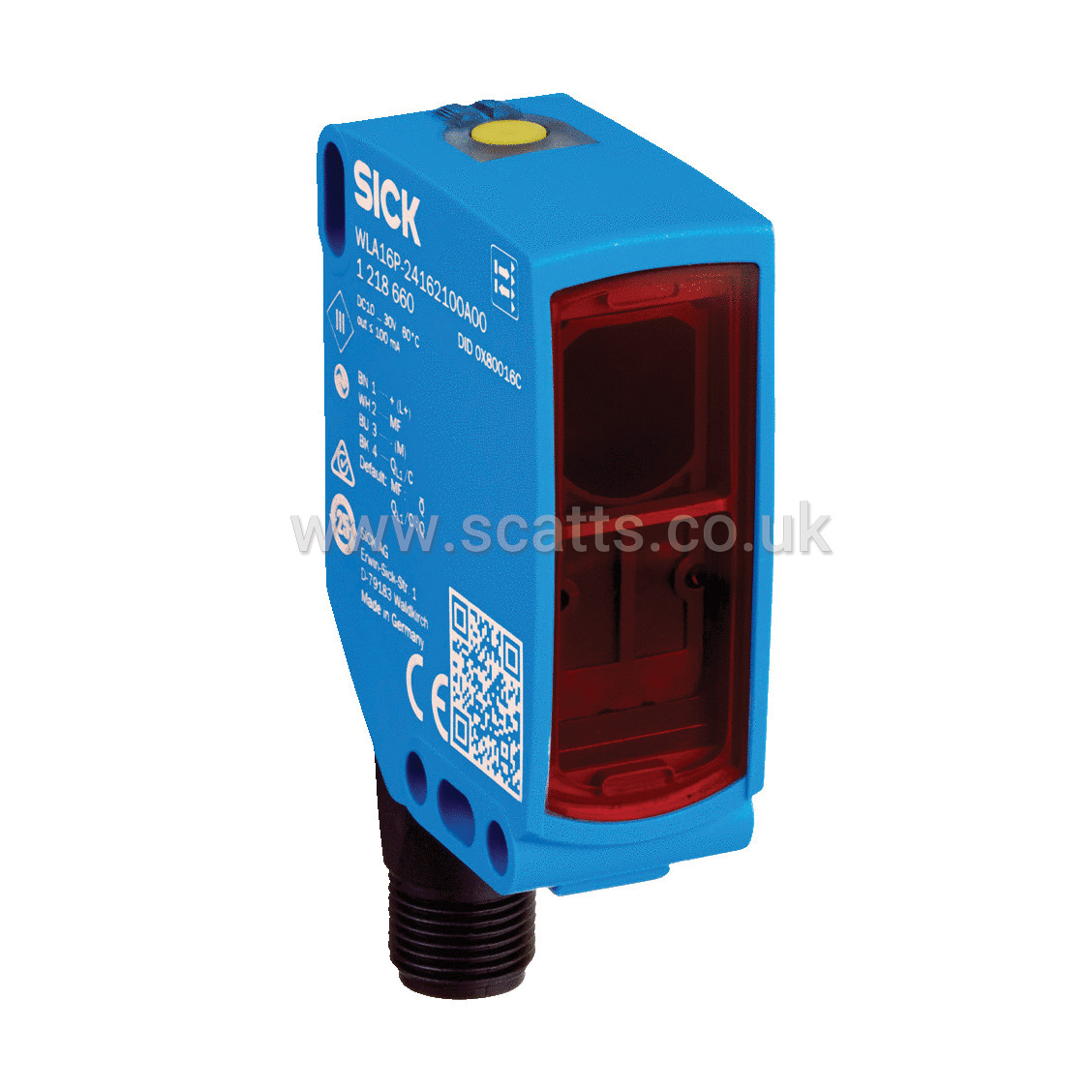

POL.RETRO.10M PNP - M12 P/IN

Small photoelectric sensors - W16


Functional principle: Photoelectric retro-reflective sensor
Functional principle detail: Autocollimation
Sensing range -
Sensing range min.: 0 m
Sensing range max.: 10 m
Maximum distance range from reflector to sensor (operating reserve 1): 0 m ... 10 m
Recommended distance range from reflector to sensor (operating reserve 3,75): 0 m ... 7 m
Reference reflector: Reflector PL80A
Recommended sensing range for the best performance: 0 m ... 7 m
Polarisation filters: Yes
Emitted beam -
Light source: PinPoint LED
Type of light: Visible red light
Shape of light spot: Point-shaped
Light spot size (distance): Ø 80 mm (5 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): < +/- 1.0° (at Ta = +23 °C)
Key LED figures -
Normative reference: EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking: Free group
Wave length: 635 nm
Average service life: 100,000 h at Ta = +25 °C
Adjustment -
Teach-in button: For sensitivity adjustment
IO-Link: For configuring the sensor parameters and Smart Task functions
Indication -
LED blue: BluePilot: Alignment aid
LED green: Operating indicator, Static on: power on, Flashing: IO-Link mode
LED yellow: Status of received light beam, Static on: object not present, Static off: object present, Flashing: Below the 1.5 function reserve
Special applications: Detecting objects wrapped in film
