My Part Number:

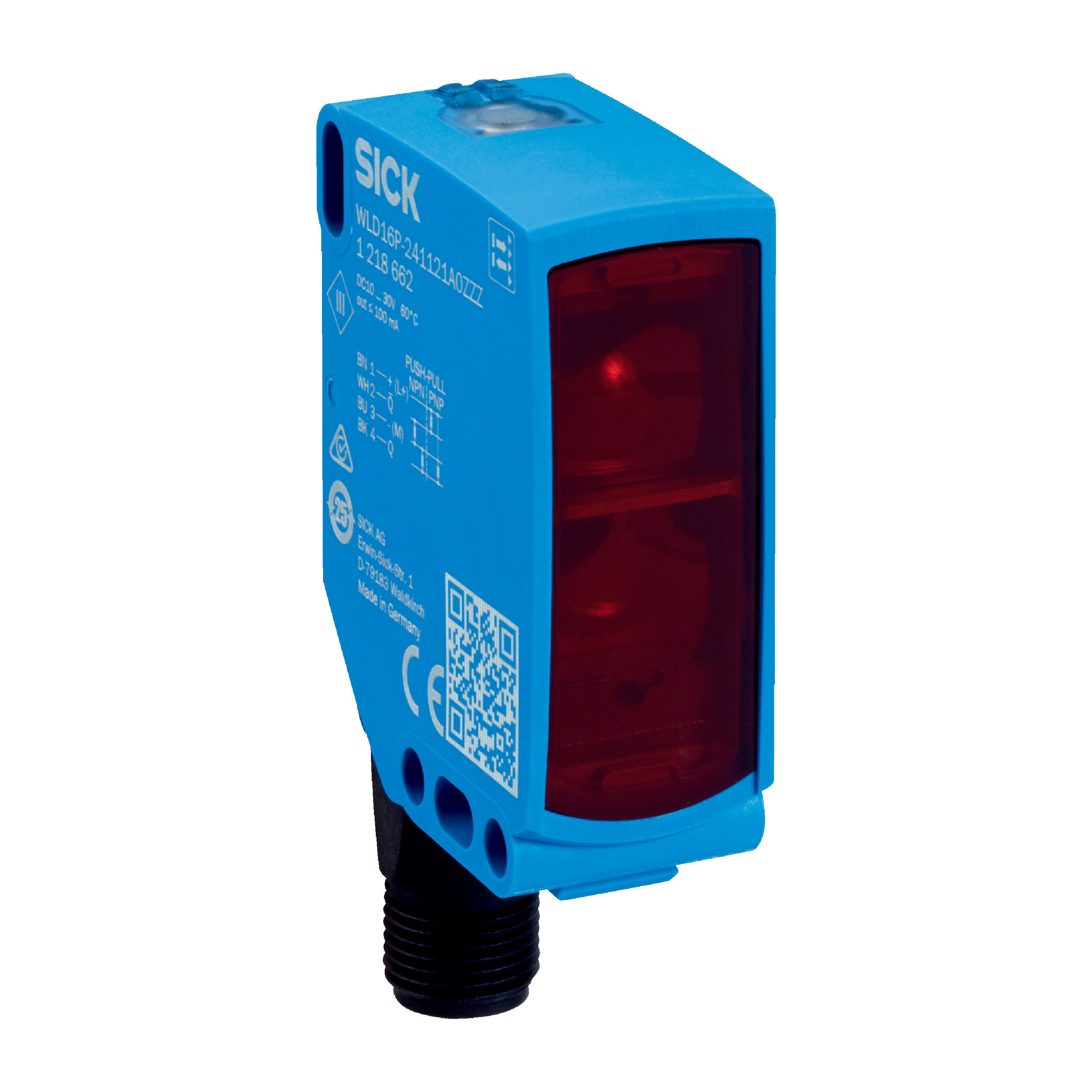

Part Number: WLD16P-257221A0ZZZ
Manufacturer Code: 1223065
Multiples of: 1 | Minimum Order: 1
Functional principle: Photoelectric retro-reflective sensor
Functional principle detail: With minimum distance to reflector (dual lens system)
Sensing range
Sensing range min.: 0.25 m
Sensing range max.: 14 m
Maximum distance range from reflector to sensor (operating reserve 1): 0.25 m ... 14 m
Recommended distance range from reflector to sensor (operating reserve 3,75): 0.25 m ... 10 m
Reference reflector: Reflector PL80A
Recommended sensing range for the best performance: 0.25 m ... 10 m
Polarisation filters: Yes
Emitted beam
Light source: PinPoint LED
Type of light: Visible red light
Shape of light spot: Point-shaped
Light spot size (distance): Ø 16 mm (1 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): < +/- 1.0° (at Ta = +23 °C)
Key LED figures
Normative reference: EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking: Free group
Wave length: 635 nm
Average service life: 100,000 h at Ta = +25 °C
Adjustment
Wire/pin: For activating the test input
Display
LED green: Operating indicator, Static on: power on
LED yellow: Status of received light beam, Static on: object not present, Static off: object present, Flashing: Below the 1.5 function reserve
Brand |
SICK |
|
£143.79
per 1 (ex. VAT)£172.55
per 1 (inc. VAT)
