FLAT HEATER CP 061 100 W

FLAT ENCLOSURE HEATER
CP 061 | 100 W


Flat heater: this flat enclosure heater can be used in control cabinets and enclosures. The resistance heater is designed to transmit heat via convection and contact. Its space-saving, flat form makes it suitable for use in installation spaces tightly fitted with components.
• Space-saving due to compact, flat design
• Screw-mounting for simple and stable installation
• Built-in temperature monitor
• Compensates for linear expansions; strain relief

Heating element: resistance heater
Temperature safety cut-out: to protect against overheating, automatic reset
Heater body: aluminium profile
Surface temperat: re: < +150 °C at +25 °C (+77 °F)
Connection: silicone cable (halogen-free) 3 x 0.75 mm² (3 x AWG 18), length 1 m
Connection Casing: plastic according to UL94 V-0, black
Mounting: screw fixing (M6)
Fitting position: horizontal, variable connection or, vertical, connection on bottom

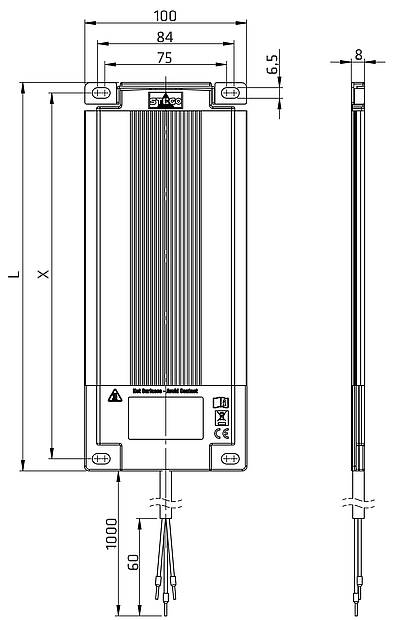

Dimensions: L x 100 x 8 mm
Storage temperature: -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP30 / I (earthed)
