My Part Number:
Part Number: CR02700.9-00
Manufacturer Code: 02700.9-00
Multiples of: 1 | Minimum Order: 1
ENCLOSURE HEATER WITH FAN
CR 027 | 400 W
This heater with PTC element is designed to prevent frost and condensation inside the control cabinet and enclosure. The installed fan also intensifies the effect of the heat by convection. The integrated, adjustable thermostat saves space in the application.
• Adjustable, integrated thermostat
• Plastic enclosure, touch-safe
• Optical function indicator
• Temperature monitor to prevent overheating
Heating element: PTC resistor - temperature limiting
Temperature safety cut-out: to protect against overheating in case of fan failure,automatic reset
Axial fan, ball bearing: airflow see tableservice life 50,000 h at +25 °C (+77 °F)
Connection: 2-pole clamp 2.5 mm², clamping torque 0.8 Nm max
Casing: plastic according to UL94 V-0, light grey
Optical indicator: thermostat control lamp
Mounting: clip for 35mm DIN rail, EN 60715

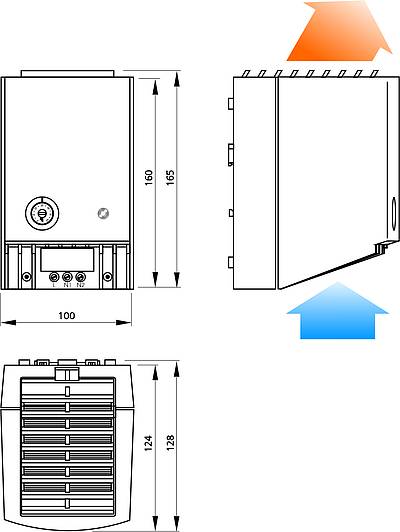

Dimensions: 100 x 128 x 165 mm
Fitting Position: vertical airflow (air outlet up)
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Approvals: VDE, UL File No. E204590, EAC
Brand |
STEGO |
|
£131.34
per 1 (ex. VAT)£157.61
per 1 (inc. VAT)
ENCLOSURE HEATER WITH FAN
CR 027 | 400 W
This heater with PTC element is designed to prevent frost and condensation inside the control cabinet and enclosure. The installed fan also intensifies the effect of the heat by convection. The integrated, adjustable thermostat saves space in the application.
• Adjustable, integrated thermostat
• Plastic enclosure, touch-safe
• Optical function indicator
• Temperature monitor to prevent overheating
Heating element: PTC resistor - temperature limiting
Temperature safety cut-out: to protect against overheating in case of fan failure,automatic reset
Axial fan, ball bearing: airflow see tableservice life 50,000 h at +25 °C (+77 °F)
Connection: 2-pole clamp 2.5 mm², clamping torque 0.8 Nm max
Casing: plastic according to UL94 V-0, light grey
Optical indicator: thermostat control lamp
Mounting: clip for 35mm DIN rail, EN 60715
Dimensions: 100 x 128 x 165 mm
Fitting Position: vertical airflow (air outlet up)
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Approvals: VDE, UL File No. E204590, EAC
Brand |
STEGO |
|
