950W FAN HEATER + T/STAT 110V AC

ENCLOSURE HEATER WITH FAN
CR 130 | 950 W


This compact, high-performance fan heater is designed to protect against frost and condensation in enclosures and control cabinets. It combines a high-performance cartridge heater and fan, achieving a high heating and air capacity. CR 130 versions make it easy to mount to the enclosure wall of a control cabinet. Available with integrated tamper-proof hygrostat or as a thermostat version.
• High-performance cartridge heater
• Temperature monitor to protect against overheating
• Optional clip- or screw-mounting
• Integrated thermostat or hygrostat

Heating element: high performance cartridge
Temperature safety cut-out: with automatic reset and second-tier one shot fuse, to protect against overheating in case of fan failure
Heater body: extruded aluminium profile,
Axial fan, ball bearing: airflow 160 m³/h, free flow, service life 50,000 h at +25 °C (+77 °F)
Connection: 2-pole max. 2.5 mm², clamping screw with strain relief, torque 0.8 Nm max.
Casing: plastic according to UL94 V-0, black
Mounting: clip for 35 mm DIN rail, EN 60715 or screw fixing (M6)
Fitting Position: vertical airflow (air outlet up)

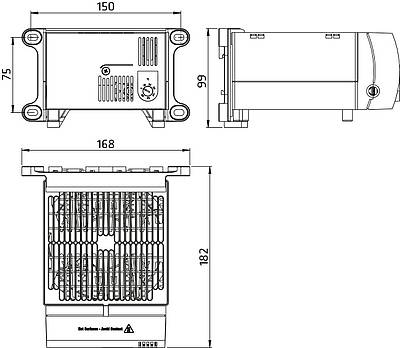

Dimensions: 182 x 168 x 99 mm
Weight: ~ 1,5 kg
Operating¹/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Note: other heating capacities from 200W up available on request
