Part Number: CREX02032.0-10
Manufacturer Code: 02032.0-10
Multiples of: 1 | Minimum Order: 1
EXPLOSION-PROOF ENCLOSURE HEATER
CREX 020 | 100 W (T3)
Temperature class T3 (max. 200 °C): enclosure heater for explosion-proof environments prevents condensation and changes in temperature. Reliable protection against frost inside switch cabinets, control cabinets and measuring equipment in potentially explosive environments or mines susceptible to firedamp.
• Zero-maintenance convection heater without fan
• High-performance cartridge heater
• Heater body: aluminium profile, anodised
• Mounting mechanisms: screw flange, clip
• Ready to connect: 1 or 2 m silicon cable with strain relief
Ex Protection type EX II 2 GD: Gases: Ex db IIC T3 Gb, Dusts: Ex tb IIIC T200°C Db IP66, Mine applications: I M2 Ex db I Mb
Surface temperature: < +200 °C (+392 °F)
Heating element: high performance cartridge
Heater body: aluminium profile, silver anodised
Connection: silicone cable (halogen-free) 3 x 0.75 mm², length 1 m
Connection PE: 0,75 to 2,5 mm²

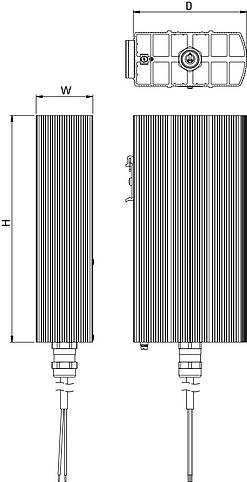

Mounting: clip for 35 mm DIN rail, EN 60715 for heating body sizes 80 x 48 mm and 120 x 60 mm and screw fixing with 2 plug-on flanges for all heating body sizes, optional widthwise mounting
Fitting position: vertical airflow (connection on bottom)
Operating/Storage temperature: -60 to +85 °C (-76 to +185 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP66 / I (earthed)
Approvals: EPS 16 ATEX 1 109 X, IECEx EPS 16.0048X, IN METRO DNV 18.0010 X, EAC TC RU C-FR.ГБ08.В.02639
Brand |
STEGO |
|
£158.15
per 1 (ex. VAT)£189.78
per 1 (inc. VAT)
