My Part Number:
Part Number: CS02800.0-00
Manufacturer Code: 02800.0-00
Multiples of: 1 | Minimum Order: 1

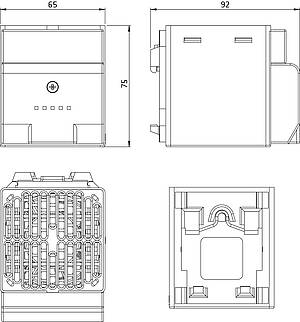

ENCLOSURE HEATER WITH FAN
CS 028 / CSL 028 | 150 W
This compact enclosure heater with fan and PTC heating element prevents condensation inside control cabinets with high component densitiy. The touch-safe plastic casing ensures the safety of users by protecting against heat.
• PTC heating element: temperature-limiting, dynamic response behaviour
• Touch-safe heat protection
• Can be mounted by screw and clip onto DIN rail 35 mm
• Electrical connection using cage clamps
• Temperature monitor to prevent overheating
Heating element: PTC resistor - temperature limiting
Axial fan, ball bearing: air flow, free flow, CS 028: 13.8 m³/h, CSL 028: 45 m³/h (230 VAC), 54 m³/h (120 VAC), service life 40,000 h at +40 °C (+104 °F)
Connection: 2-pole clamp max. 2.5 mm² (CSL 028 with strain relief),clamping screw torque 0.8 Nm max.
Casing: plastic according to UL94 V-0, black
Mounting: clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3 mm)
Fitting position: vertical airflow (air outlet up)
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Brand |
STEGO |
|
£78.67
per 1 (ex. VAT)£94.40
per 1 (inc. VAT)
