My Part Number:
Part Number: CS03060.0-00
Manufacturer Code: 03060.0-00
Multiples of: 1 | Minimum Order: 1
ENCLOSURE HEATER WITH FAN
CS 030 | 1.200 W
The high-performance fan heater for evenly distributed temperature control of enclosures and control cabinets is designed to protect against harmful condensation. Versions with integrated thermostat are available. Heating technology: PTC for dynamic response behaviour. Safe for user to touch thanks to touch-safe plastic casing.
• Versions with integrated thermostat
• Version for screw-mounting onto control cabinet floors
• Versions with tamper-proof thermostat
• User protection: touch-safe casing
Heating element: PTC resistor - temperature limiting
Temperature safety cut-out: to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing: airflow 160 m³/h, free flow, service life 50,000 h at +25 °C (+77 °F)
Connection: 2-pole max. 2.5 mm², clamping screw with strain relief, torque 0.8 Nm max.
Casing: plastic according to UL94 V-0, black
Mounting: screw fixing (M5)
Fitting position: vertical airflow (air outlet up)

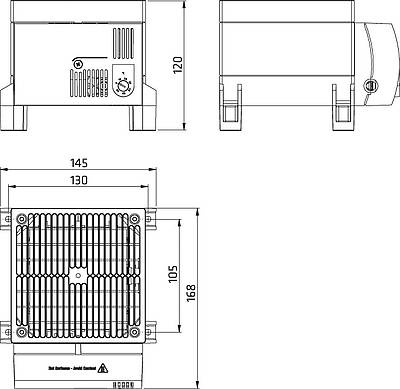

Dimensions: 168 x 145 x 120 mm
Weight: ~ 1,2 kg
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Brand |
STEGO |
|
£215.62
per 1 (ex. VAT)£258.74
per 1 (inc. VAT)
