My Part Number:
Part Number: CSF02821.0-06
Manufacturer Code: 02821.0-06
Multiples of: 1 | Minimum Order: 1
ENCLOSURE HEATER WITH FAN
CSF 028 | 250 W
This PTC enclosure heater with fan and tamper-proof thermostat protects against condensation inside control cabinets and enclosures. It makes particularly good use of space. The integrated tamper-proof thermostat is available in two temperature pre-sets. The heater is safe for the user to touch thanks to the heater body's touch-safe plastic casing.
PTC heating element: temperature-limiting, dynamic response behaviour
• Touch-safe thanks to heat protection
• Can be mounted by screw and clip onto DIN rail 35 mm
• Electrical connection using cage clamps
• Temperature monitor to prevent overheating
Heating element: PTC resistor - temperature limiting
Temperature safety cut-out: to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing: air flow, free flow, CSF 028: 45 m³/h (230 VAC), 54 m³/h (120 VAC), service life 40,000 h at +40 °C (+104 °F)
Connection: 2-pole dual pressure clamp for rigid wire 2.5 mm², stranded wire (with wire end ferrule) 1.5 mm²
Casing: plastic according to UL94 V-0, black
Mounting: clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.5 mm),, clamping torque 2 Nm max., washers have to be used
Fitting Position: vertical airflow (air outlet up)

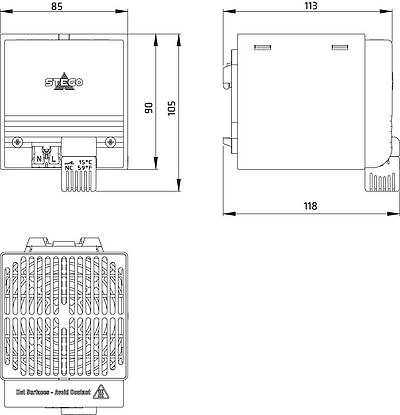

Dimensions: models with clip fixing: 105 x 85 x 118 mm,, models with screw flange fixing: 105 x 115 x 108 mm
Weight: ~ 0,5 kg
Operating/Storage temperature: -40 to +70 °C (-40 to +158 °F)/-45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Brand |
STEGO |
|
£100.02
per 1 (ex. VAT)£120.02
per 1 (inc. VAT)
