My Part Number:
Part Number: CSK06040.1-00
Manufacturer Code: 06040.1-00
Multiples of: 1 | Minimum Order: 1
ENCLOSURE HEATER
CSK 060 | 10 W
This compact PTC enclosure heater is designed to protect against condensation inside your control cabinet and installation space. Safety: the surface of the plastic-sheathed heater reaches a maximum temperature of +85 °C and reliably protects users against heat.
• Wider range of voltages for electrical connection
• PTC heating element with dynamic response behaviour
• Energy-saving, temperature-limiting and safe to touch
• Designed for long-term use
• Quick to mount using clips for 35 mm DIN rail
Operating voltage: AC/DC 120 - 240 V¹ (min. 110 V, max. 265 V)
Heating element: PTC resistor - temperature limiting
Surface temperature: < +85°C (+185°F) (according to VDE 0100), except upper protective grille
Connection: 2-pole terminal 2.5 mm², torque 0.8 Nm max.
Casing: plastic according to UL94 V-0, black

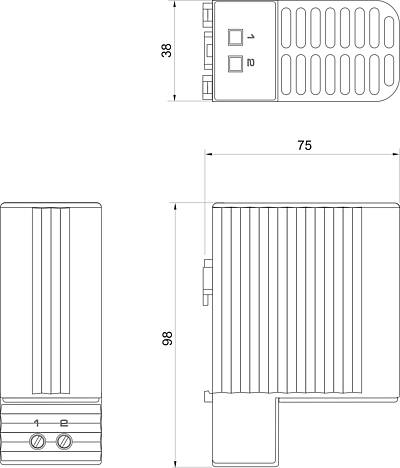

Dimensions: 98 x 38 x 75 mm
Mounting: clip for 35mm DIN rail, EN 60715
Fitting position: vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature: -45 °C to +70 °C (-49 °F to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Approvals: VDE, UL File No. E150057, EAC
Brand |
STEGO |
|
£24.65
per 1 (ex. VAT)£29.58
per 1 (inc. VAT)
