My Part Number:
Part Number: DCT01011.0-42
Manufacturer Code: 01011.0-42
Multiples of: 1 | Minimum Order: 1
ELECTRONIC THERMOSTAT
DCT 010 | DC 20 V TO 56 V
Electronic thermostat with integrated switch module for regulating DC-powered devices in enclosures and control cabinets. Switches all common consumers inside control cabinet applications: heaters, fans, signal devices, etc. Contact maker versions (NO) in two versions with broad range of temperature settings. Contact breaker versions (NC) with secondary switch function: pre-set relative humidity of 65%.
• Internal switch module with high DC switch performance
• Adjustable temperature
• Small hysteresis
• External sensor
Switch difference (temperature): 3 K (±1 K tolerance) at +25 °C (+77 °F), 50 % RH
Reaction time: ~ 5 s
External sensor: cable 2 m with snap in connector (included in the delivery)
Contact type: contact maker NO (MOSFET) or contact breaker NC (MOSFET)
Service life: > 100,000 cycles
Operating voltage: DC 20 to 56 V
Optical indicator: LED
Connection: 6-pole terminal: stranded wire1 1.5 mm² (AWG 16); max. 2.5 mm² (AWG 12)
Mounting: clip for 35 mm DIN rail, EN 60715
Casing: plastic according to UL94 V-0, grey (bicolor)

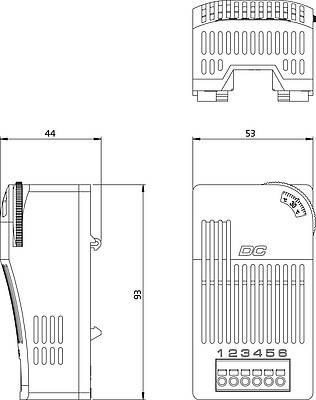

Dimensions: 93 x 53 x 44 mm
Weight: ~ 120 g (incl. sensor)
Fitting position: vertical
Storage temperature: -40 to +80 °C (-40 to +176 °F)
Operating/Storage humidity: < 90 % RH (non-condensing)
Protection type: IP20
Approvals: UL File No. E164102, VDE, EAC
Brand |
STEGO |
|
£176.49
per 1 (ex. VAT)£211.79
per 1 (inc. VAT)
